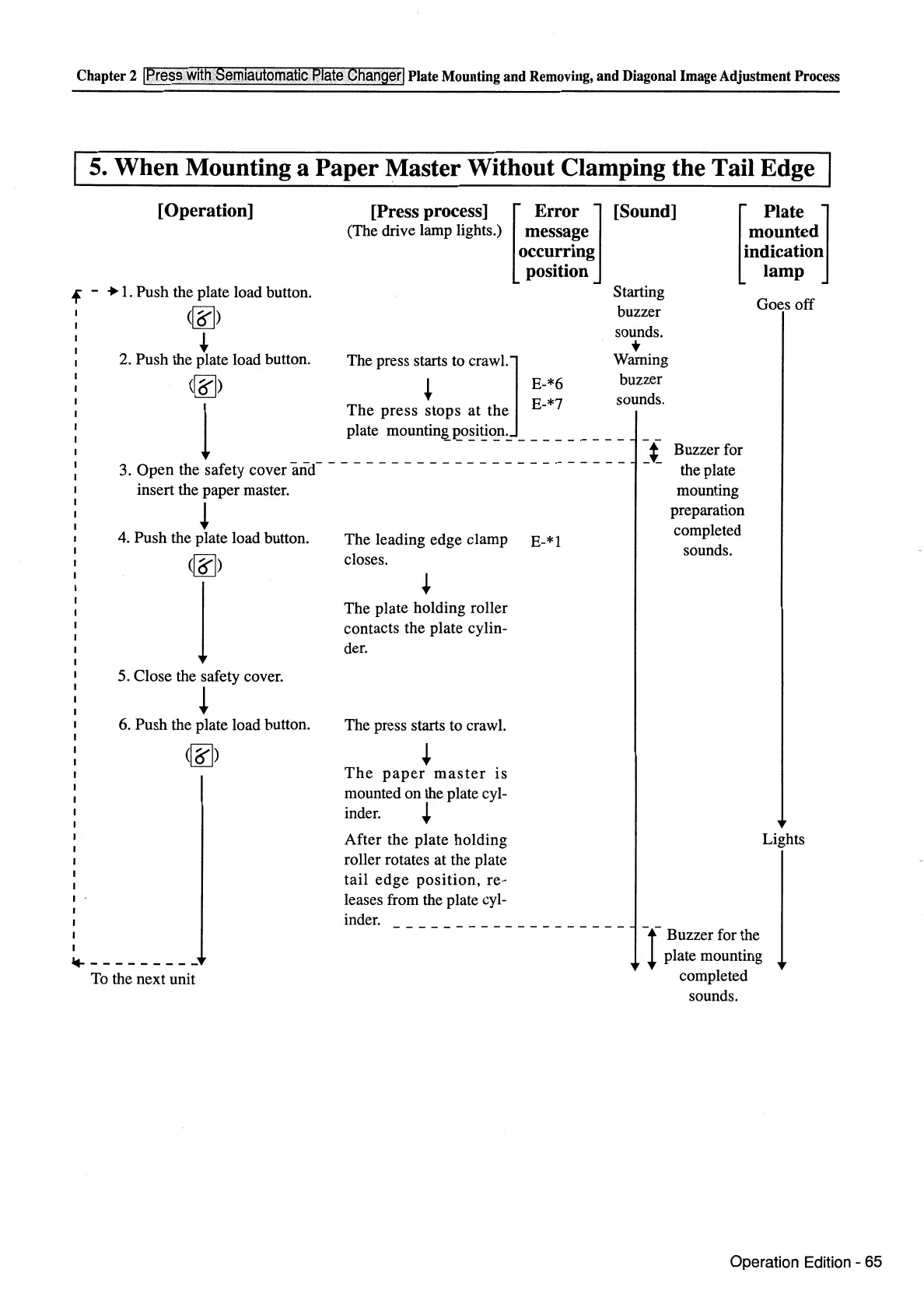

Chapter 2 IPresswithSerniautotnatic.Piate. Changer! Plate Mounting and Removing, and Diagonal Image Adjustment Process
5. When Mounting a Paper Master Without Clamping the Tail Edge
f -
[Operation]
•1. Push the plate load button.
(~)
~
2. Push the plate load button.
(~)
l
[Press process]
(The drive lamp lights.)
[
Error J [Sound]
message
occurring
position
+ E-*6
The press stops at the E-*7
Starting
buzzer
sounds.
•
Warning
buzzer
sounds.
The press starts to crawl.]
plate
mounting_ ~o~i~o_n:... ________ _
[
Plate
J
mounted
indication
lamp
Goes off
3. Open the safety cover
-~u}d- - - - - - - - - - - - - - - - - - - - - - - - -
Buzzer for
the plate
mounting
preparation
completed
sounds.
insert the paper master.
!
4. Push the plate load button.
(~)
l
5. Close the safety cover.
!
6. Push the plate load button.
(~)
14----------
To the next unit
The leading edge clamp
closes.
The plate holding roller
contacts the plate cylin-
der.
The press starts to crawl.
+
The paper master is
mounted on the plate cyl-
inder.
+
After the plate holding
roller rotates at the plate
tail edge position, re-
leases from the plate cyl-
inder.
E-*1
Lights
-!-Buzzer for the
plate mounting
completed
sounds.
Operation Edition - 65
