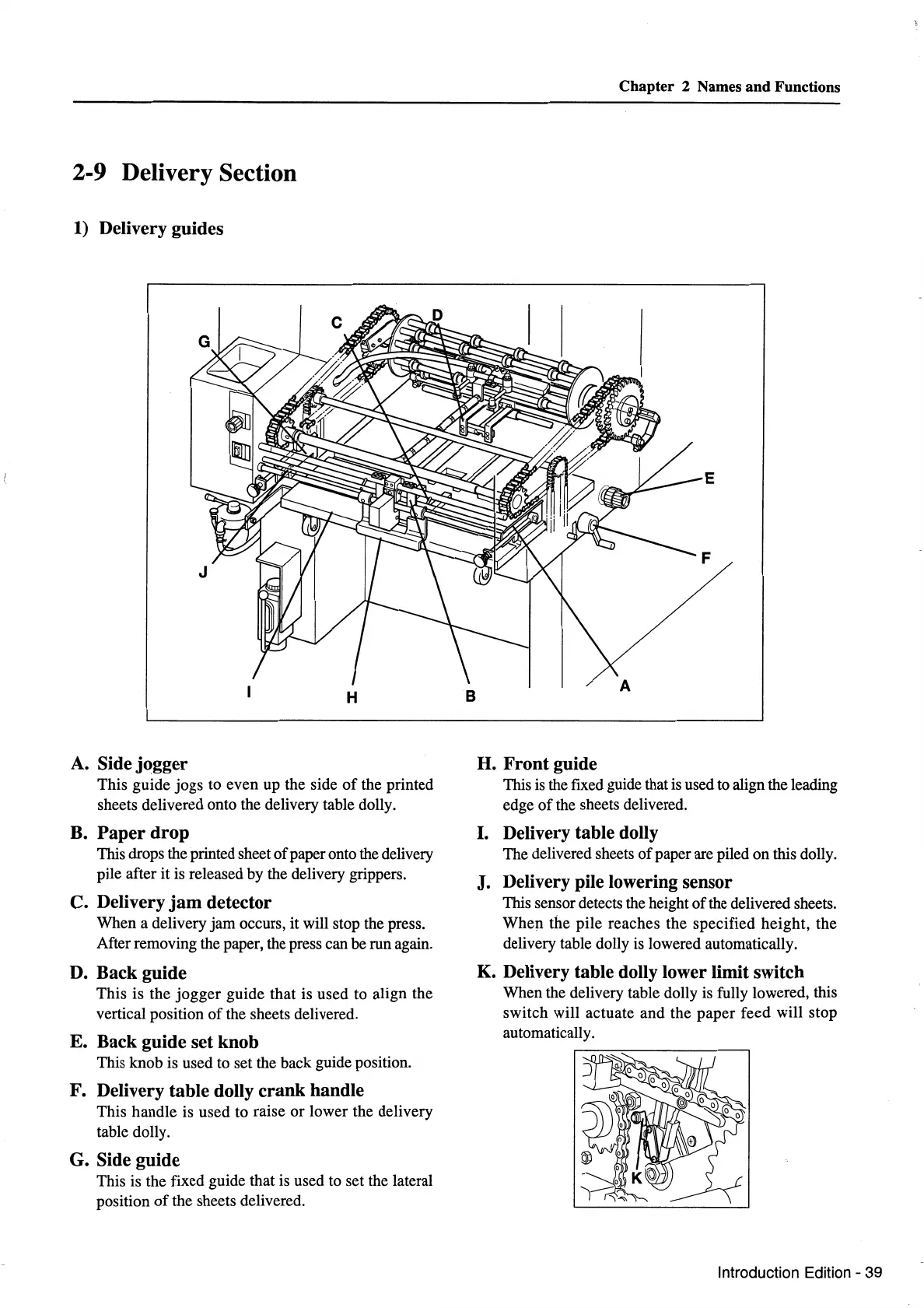

2-9 Delivery Section
1)
Delivery guides
H
A. Side jogger
This guide jogs to even up the side
of
the printed
sheets delivered onto the delivery table dolly.
B.
Paper
drop
This drops the printed sheet
of
paper onto the delivery
pile after it is released by the delivery grippers.
C. Delivery
jam
detector
When a delivery jam occurs, it will stop the press.
After removing the paper, the press can be run again.
D. Back guide
This is the
jogger
guide that is used to align the
vertical position
of
the sheets delivered.
E. Back guide set knob
This knob is used to set the back guide position.
F. Delivery table dolly
crank
handle
This handle is used to raise or lower the delivery
table dolly.
G. Side guide
This is the fixed guide that
is
used to set the lateral
position
of
the sheets delivered.
B
Chapter
2 Names
and
Functions
H.
Front
guide
This
is
the fixed guide that
is
used to align the leading
edge
of
the sheets delivered.
I. Delivery table dolly
The delivered sheets
of
paper are piled on this dolly.
J. Delivery pile lowering sensor
This sensor detects the height
of
the delivered sheets.
When
the pile reaches the specified height, the
delivery table dolly is lowered automatically.
K. Delivery table dolly lower limit switch
When the delivery table dolly is fully lowered, this
switch will actuate and the paper feed will stop
automatically.
Introduction Edition- 39
