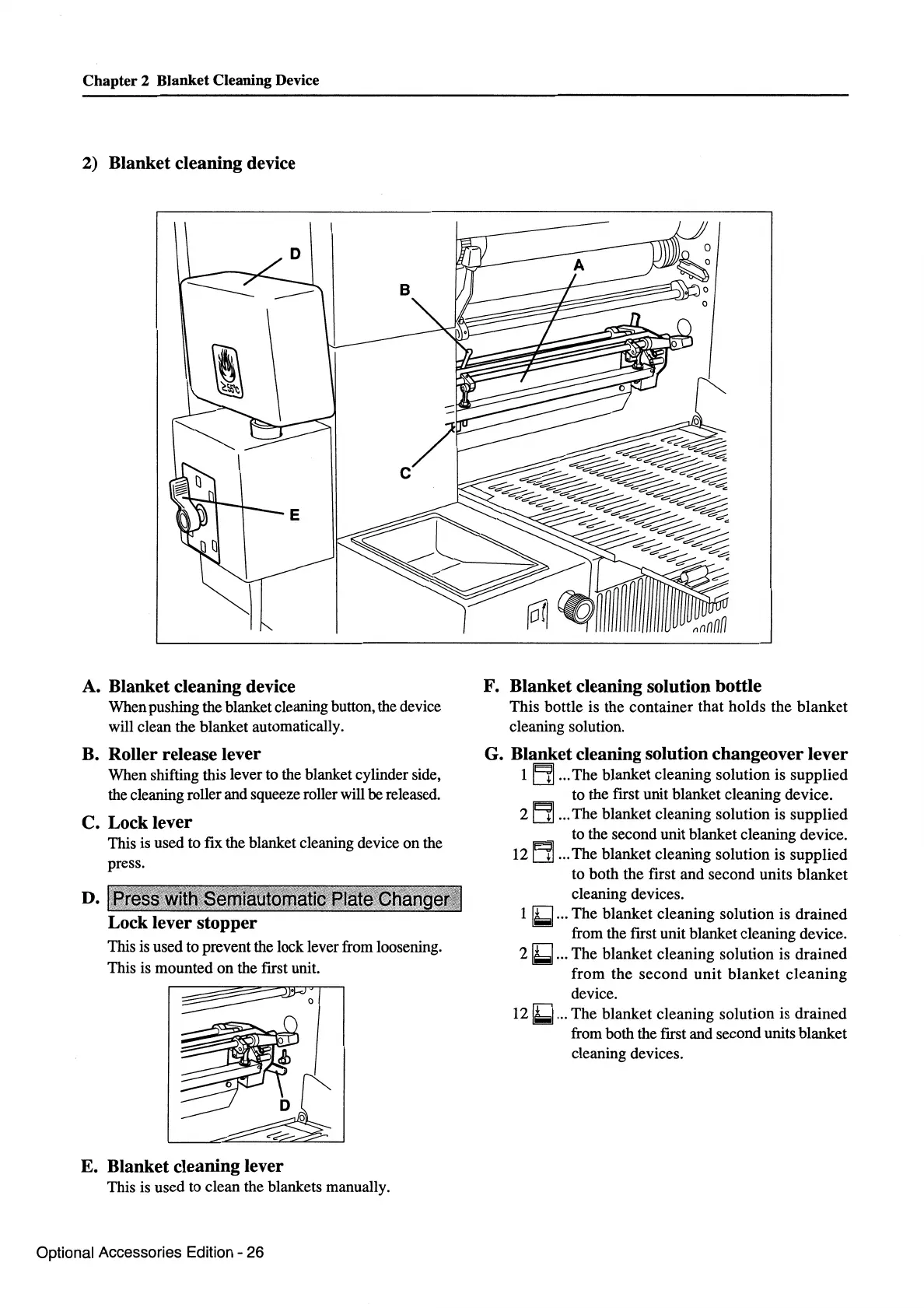

2 Blanket Cleaning Device
2) Blanket cleaning device
A. Blanket cleaning device
When pushing the blanket cleaning button, the device
will clean the blanket automatically.
B. Roller release lever
When
shifting this lever to the blanket cylinder side,
the cleaning roller and squeeze roller will be released.
C. Lock lever
D.
This is used to fix the blanket cleaning device
on
the
press.
Lock lever stopper
This is used to prevent the lock lever from loosening.
This is mounted
on
the first unit.
E. Blanket cleaning lever
This is used to clean the blankets manually.
Optional Accessories Edition - 26
F. Blanket cleaning solution bottle
This bottle is the
container
that
holds
the
blanket
cleaning solution.
G. Blanket cleaning solution changeover lever
1
I:IJ
...
The
blanket
cleaning solution is
supplied
to the first unit blanket cleaning device.
21:IJ
...
The
blanket
cleaning solution is
supplied
to the second unit blanket cleaning device.
121:IJ ...
The
blanket
cleaning solution is
supplied
to
both
the
first
and
second
units
blanket
cleaning devices.
1
~
...
The
blanket
cleaning
solution
is
drained
from the frrst unit blanket cleaning device.
2
ij;)
...
The
blanket
cleaning
solution
is
drained
from
the
second
unit
blanket
cleaning
device.
12
~
...
The
blanket
cleaning
solution
is
drained
from both the frrst and second units blanket
cleaning devices.
