Chapter
1 RYOBI PCS-F

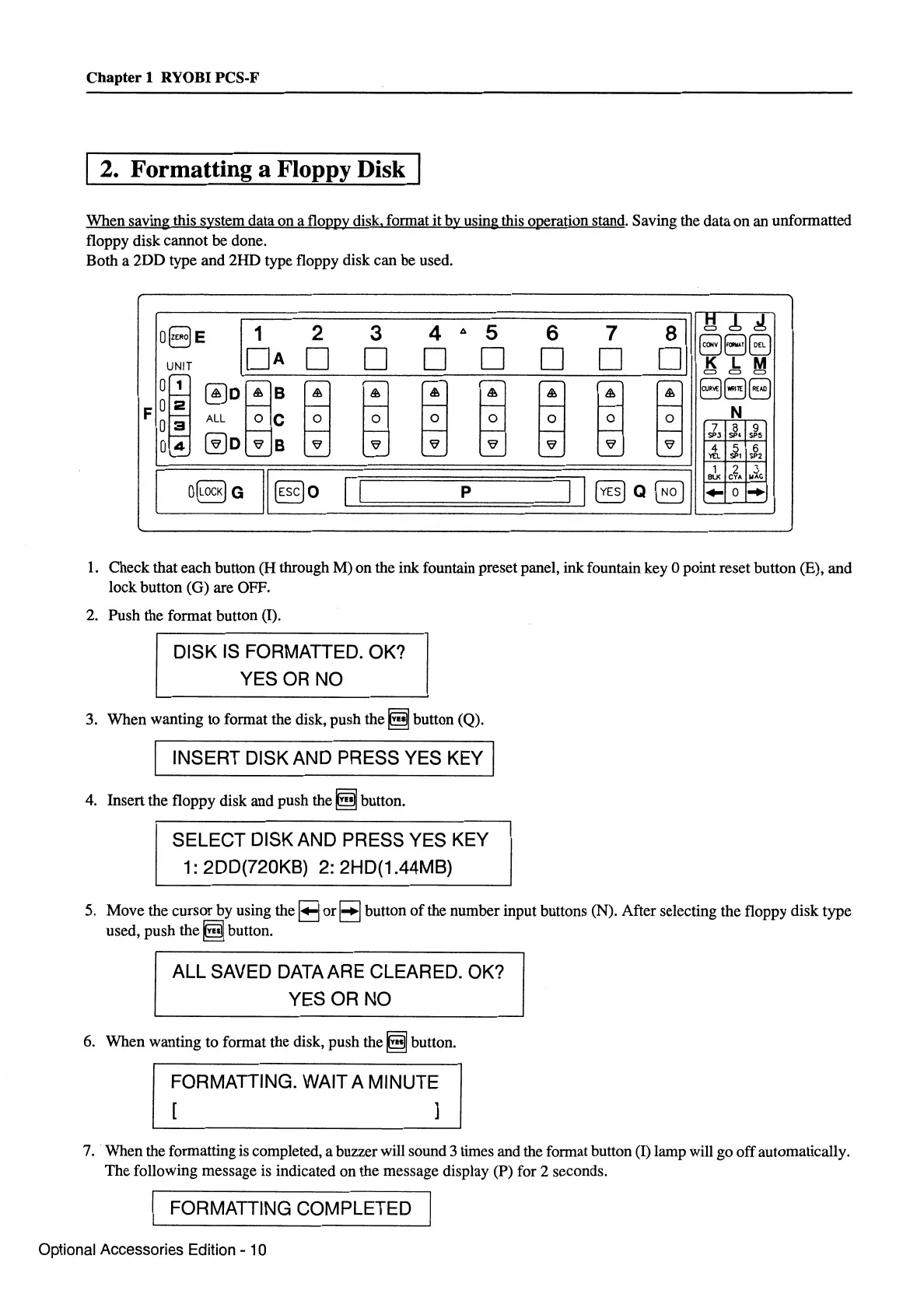

2. Formatting a Floppy Disk
When saving this system data on a
flonnY
disk. format it by using this oneration stand. Saving the data on an unformatted
floppy disk cannot be done.
Both a 2DD type and 2HD type floppy disk can be used.
~!s
888
K L M
= = =
888
N
7 8 9
SPJ
SP4
SPS
4 5 6
VEL
SP1
SP2
1 2 3
~~-o-~_cK_G~~L~~=sc~O~'='======P======~I
~~~=Es~Q~~~o
~~:~~~·~~·~o
1.
Check that each button (H through M) on the ink fountain preset panel, ink fountain key 0 point reset button (E), and
lock button (G) are OFF.
2.
Push the format button (I).
DISK
IS
FORMATTED. OK?
YES OR NO
3. When wanting to format the disk, push
the~
button (Q).
I INSERT DISK AND PRESS YES KEY I
4.
Insert the floppy disk and push the
~
button.
SELECT DISK AND PRESS YES KEY
1:
2DD(720KB)
2:
2HD(1.44MB)
5. Move the cursor by using the 8
or
8 button
of
the number input buttons (N). After selecting the floppy disk type
used, push the
~
button.
ALL SAVED
DATA
ARE CLEARED. OK?
YES OR NO
6. When wanting to format the disk, push the
~
button.
FORMATTING. WAIT A MINUTE
[ ]
7. When the formatting is completed, a buzzer will sound 3 times and the format button (I) lamp will go
off
automatically.
The following message is indicated on the message display (P) for 2 seconds.
I FORMATTING COMPLETED
Optional Accessories Edition - 1 0
