Ryobi 3302H User Manual

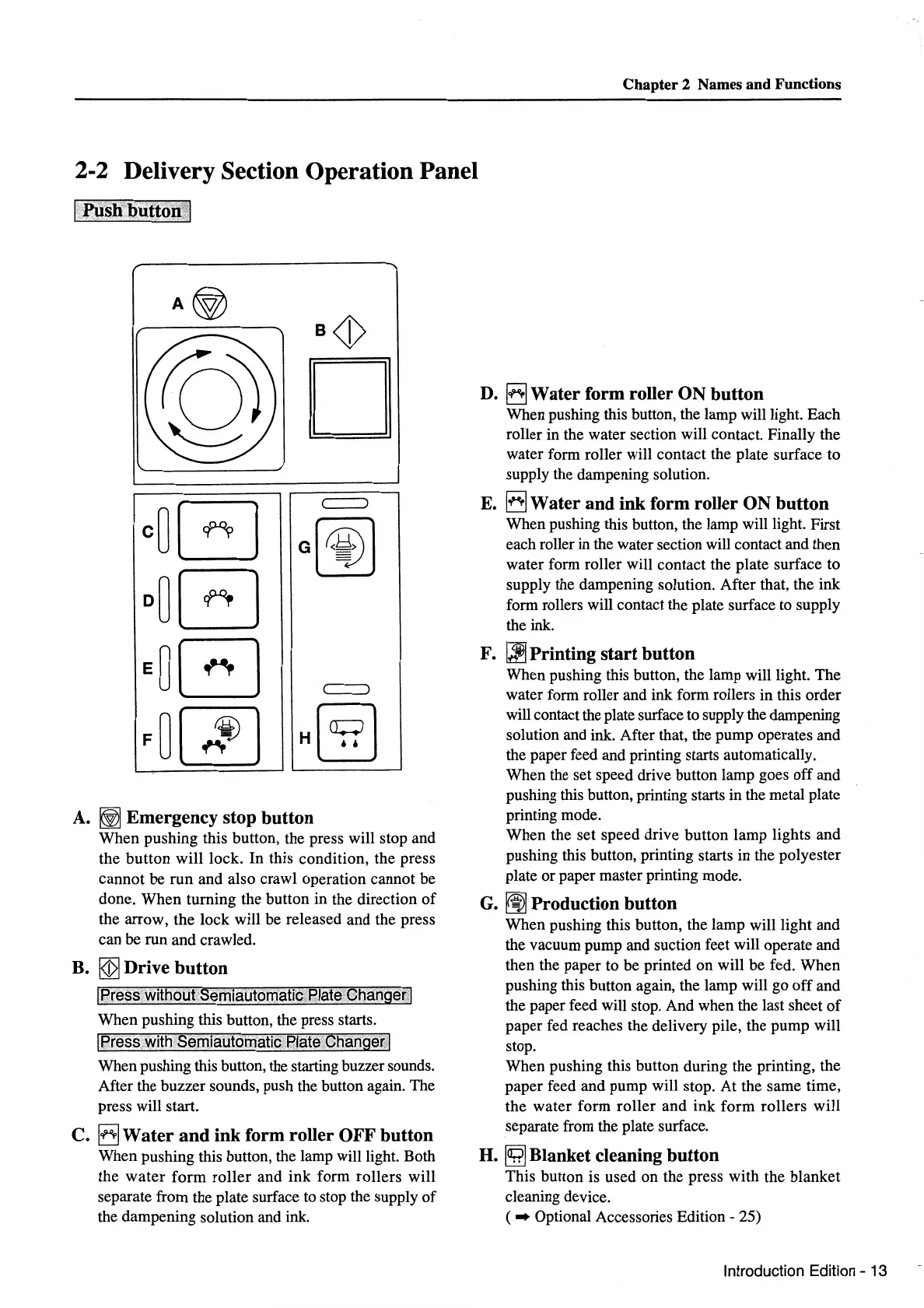

2-2 Delivery Section Operation Panel
l'f1lsfi·6uttorr2
1
l
A@
e<J>
(
(()~)
D
~
-
c~G
c=::J
G~
D~G
E~G
c=::J
F~~
H [ II; ;l l
A. ~ Emergency stop button
When pushing this button, the press will stop and
the button will lock. In this condition, the press
cannot be run and also crawl operation cannot be
done. When turning the button in the direction
of
the arrow, the lock will be released and the press
can be run and crawled.
B. ~ Drive button
IRresswith.Ouf'Semiautomaticd?late
2
Ghangecl
When pushing this button, the press starts.
ll?resswith SemiautdmaticRiate.Changer!l
When pushing this button, the starting buzzer sounds.
After the buzzer sounds, push the button again. The
press will start.
C. ~Water and ink form roller OFF button
When pushing this button, the lamp will light. Both
the
water form roller and ink form rollers will
separate from the plate surface
to stop the supply of
the dampening solution and ink.
Chapter 2 Names and Functions
D. ~Water form roller ON button
When pushing this button, the lamp will light. Each
roller in the water section will contact. Finally the
water form roller will contact the plate surface to
supply the dampening solution.
E. 6 Water and ink form roller ON button
When pushing this button, the lamp will light. First
each roller in the water section will contact and then
water form roller will contact the plate surface to
supply the dampening solution. After that, the ink
form rollers will contact the plate surface to supply
the ink.
F. ~Printing start button
When pushing this button, the lamp will light. The
water form roller and ink form rollers in this order
will contact the plate surface
to supply the dampening
solution and ink. After that, the pump operates and
the paper feed and printing starts automatically.
When the set speed drive button lamp goes off and
pushing this button, printing starts in the metal plate
printing mode.
When the set speed drive button lamp lights and
pushing this button, printing starts in the polyester
plate or paper master printing mode.
G. ~Production button
When pushing this button, the lamp will light and
the vacuum pump and suction feet will operate and
then the paper to be printed on will be fed. When
pushing this button again, the lamp will go
off and
the paper feed will stop. And when the last sheet
of
paper fed reaches the delivery pile, the pump will
stop.
When pushing this button during the printing, the
paper feed and pump will stop. At the same time,
the water form roller and ink form rollers will
separate from the plate surface.
H. [21 Blanket cleaning button
This button is used on the press with the blanket
cleaning device.
( • Optional Accessories Edition - 25)
Introduction Edition- 13
