2-10

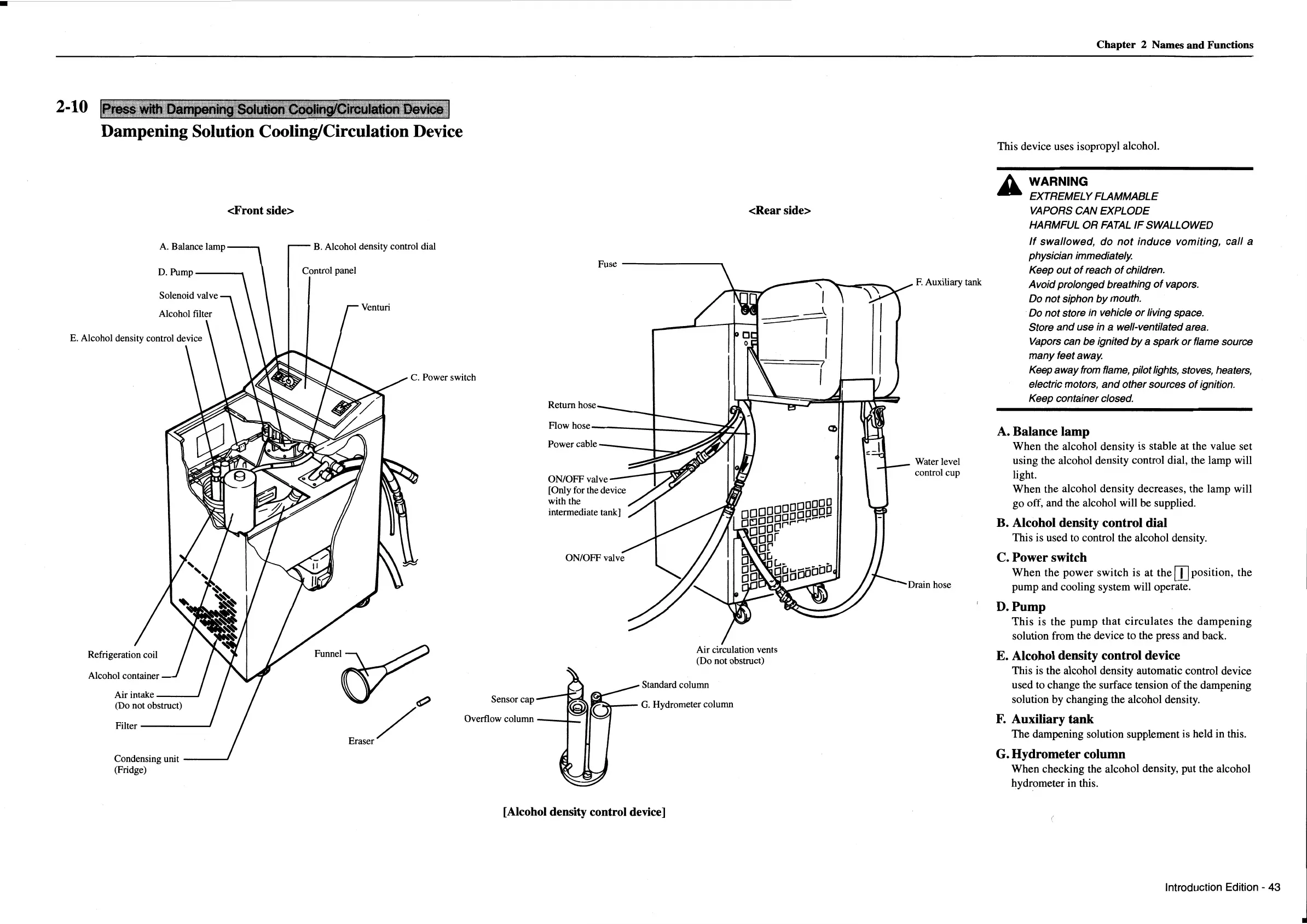

Dampening Solution Cooling/Circulation Device
<Front side> <Rear side>
A.
Balance
lamp--..,
B.
Alcohol density control dial
D.
Pump---..,
Control panel
Fuse
-------~
C.
Power switch
Alcohol container
Air intake
---.J
(Do not obstruct)
Filter-------~
Condensing unit ---...J
(Fridge)
Eraser
/~
Return hose
intermediate tank]
Sensor cap
Overflow column
---+--
Air circulation vents
(Do not obstruct)
Standard column
[Alcohol density control device]
F.
Auxiliary tank
~--
Water level
control cup
Chapter
2 Names
and
Functions
This device uses isopropyl alcohol.
A WARNING
EXTREMELY FLAMMABLE
VAPORS
CAN
EXPLODE
HARMFUL
OR
FATAL
IF
SWALLOWED
If
swallowed,
do
not
induce
vomiting,
call
a
physician immediately.
Keep
out
of
reach
of
children.
Avoid
prolonged breathing
of
vapors.
Do
not
siphon
by
mouth.
Do
not
store in vehicle
or
living space.
Store
and
use in a well-ventilated area.
Vapors can
be
ignited
by
a
spark
or
flame source
many
feet away.
Keep
away
from flame, pilot lights, stoves, heaters,
electric motors,
and
other
sources
of
ignition.
Keep container closed.
A. Balance
lamp
When the alcohol density is stable at the value set
using the alcohol density control dial, the lamp will
light.
When the alcohol density decreases, the lamp will
go off, and the alcohol will be supplied.
B. Alcohol density control dial
This is used to control the alcohol density.
C. Power switch
When the power switch is at the
[I]
position, the
pump and cooling system will operate.
D.
Pump
This is
the
pump
that
circulates
the
dampening
solution from the device to the press and back.
E. Alcohol density control device
This
is
the alcohol density automatic control device
used to change the surface tension
of
the dampening
solution by changing the alcohol density.
F.
Auxiliary
tank
The dampening solution supplement is held in this.
G. Hydrometer column
When checking the alcohol density, put the alcohol
hydrometer in this.
Introduction Edition - 43
