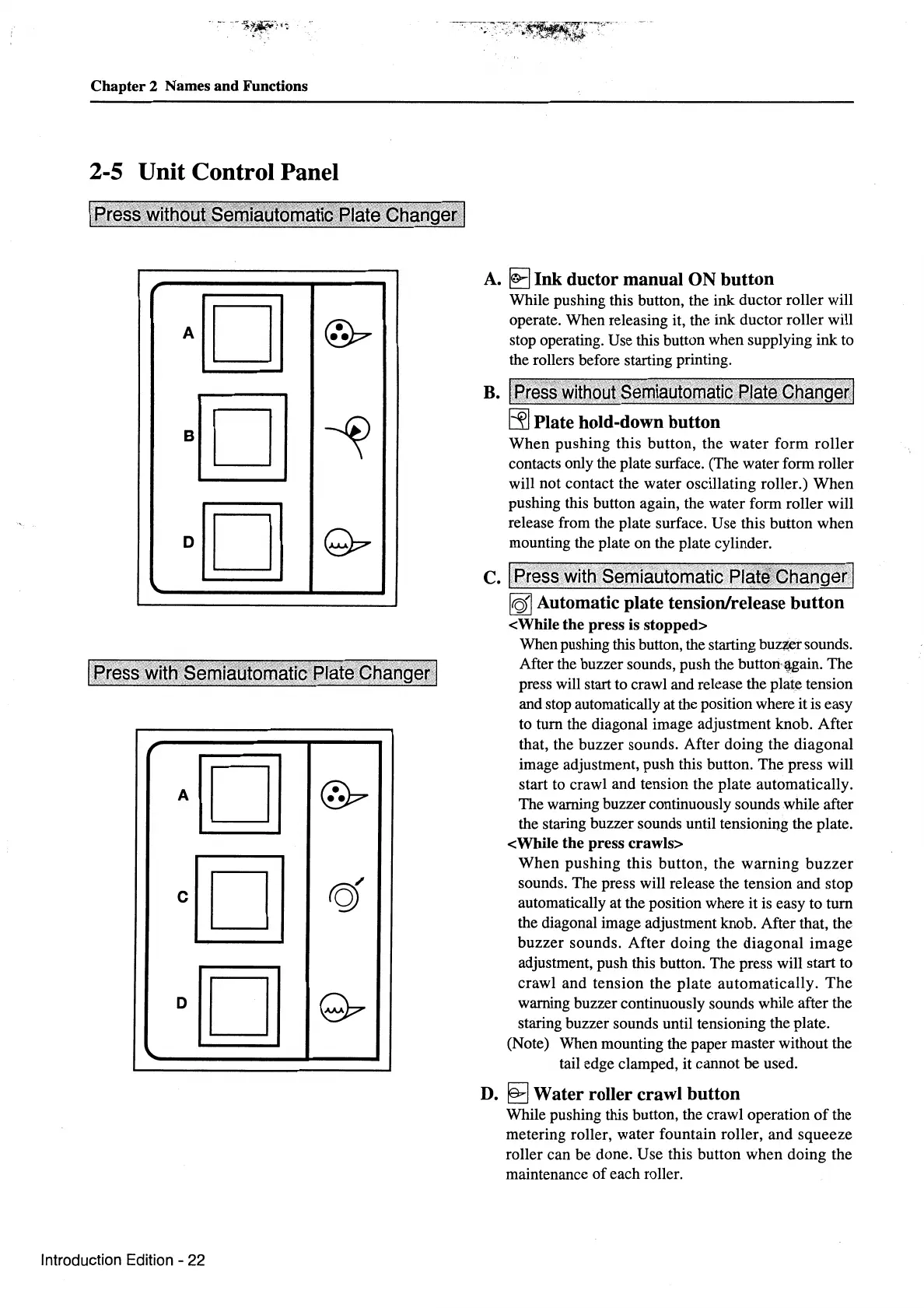

Chapter 2 Names and Functions
2-5 Unit Control Panel
AD
([;p
c[DJ
(())
DD
c;p.
Introduction Edition - 22
A. ~Ink ductor manual ON button
While pushing this button, the ink ductor roller will
operate. When releasing it, the ink ductor roller will
stop operating. Use this button when supplying ink to
the rollers before starting printing.
B. IF>iesswlfhouf.semlautoMafice.rat6tohao9erl
Efl Plate hold-down button
When pushing this button, the water form roller
contacts only the plate surface. (The water form roller
will not contact the water oscillating roller.) When
pushing this button again, the water form roller will
release from the plate surface. Use this button when
mounting the plate on the plate cylinder.
c. !Press with semiautomatic· Pl~i§~chari9erl
~ Automatic plate tension/release button
<While the press is stopped>
When pushing this button, the starting buzr,er sounds.
After the buzzer sounds, push the
button·~gain. The
press will start to crawl and release the
plat~ tension
and stop automatically at the position where it
is easy
to tum the diagonal image adjustment knob. After
that, the buzzer sounds. After doing the diagonal
image adjustment, push this button. The press will
start to crawl and tension the plate automatically.
The warning buzzer continuously sounds while after
the staring buzzer sounds until tensioning the plate.
<While the press crawls>
When pushing this button, the warning
buzzer
sounds. The press will release the tension and stop
automatically at the position where it is easy to tum
the diagonal image adjustment knob. After that, the
buzzer sounds. After doing the diagonal
adjustment, push this button. The press will start to
crawl and tension the plate automatically.
The
warning buzzer continuously sounds while after the
staring buzzer sounds until tensioning the plate.
(Note) When mounting the paper master without the
tail edge clamped, it cannot be used.
D. l§j Water roller crawl button
While pushing this button, the crawl operation of the
metering roller, water fountain roller, and squeeze
roller can be done. Use this button when doing the
maintenance of each roller.
