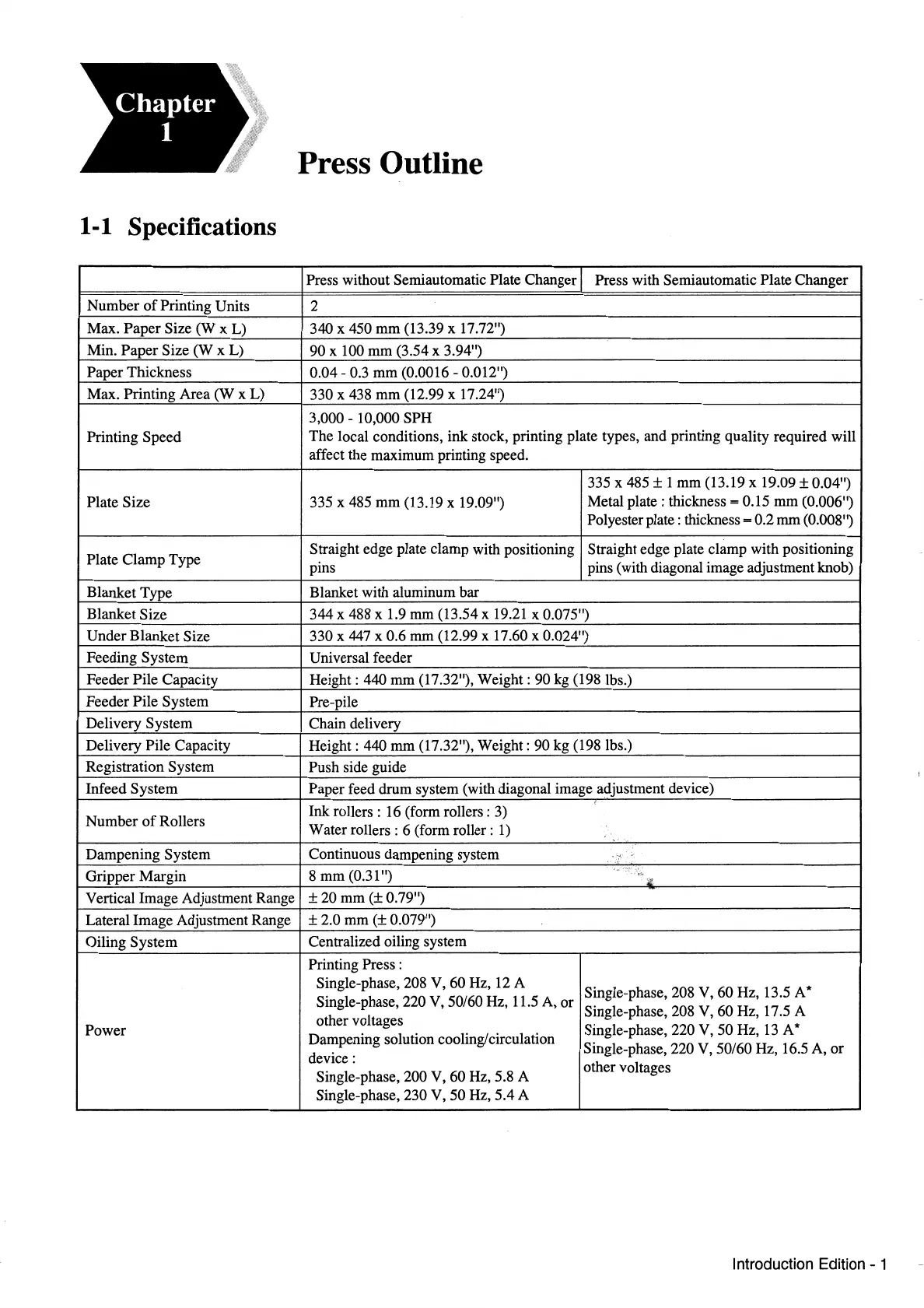

Press Outline
1-1 Specifications
Press without Semiautomatic Plate Changer
Press with Semiautomatic Plate Changer
Number
of
Printing Units
2
Max. Paper Size (W x L)
340 x 450 mm (13.39 x 17.72")
Min. Paper Size (W x L)
90 x 100 mm (3.54 x 3.94")
Paper Thickness
0.04-
0.3 mm (0.0016- 0.012")
Max. Printing Area (W x L) 330 x 438 mm (12.99 x 17.24")
3,000-
10,000 SPH
Printing Speed
The local conditions, ink stock, printing plate types, and printing quality required will
affect the maximum printing speed.
335 x 485
± 1 mm (13.19 x 19.09 ± 0.04")
Plate Size
335 x 485 mm (13.19 x 19.09")
Metal plate: thickness= 0.15 mm (0.006")
Polyester plate: thickness= 0.2 mm (0.008")
Plate Clamp Type
Straight edge plate clamp with positioning
Straight edge plate clamp with positioning
pins pins (with diagonal image adjustment knob)
Blanket Type Blanket with aluminum bar
Blanket Size 344
X 488 X 1.9 mm (13.54 X 19.21 X 0.075")
Under Blanket Size 330
X 447 X 0.6
rom
(12.99 X 17.60 X 0.024")
Feeding System Universal feeder
Feeder Pile Capacity Height: 440 mm (17.32"), Weight: 90 kg (198lbs.)
Feeder Pile System Pre-pile
Delivery System Chain delivery
Delivery Pile Capacity Height: 440 mm (17.32"), Weight: 90 kg (198 lbs.)
Registration System Push side guide
Infeed System Paper feed drum system (with diagonal image adjustment device)
Number
of
Rollers
Ink rollers:
16
(form rollers:
3)
Water rollers: 6 (form roller:
1)
Dampening System Continuous dampening system
Gripper Margin
8 mm (0.31
")
-'
·:,.
:iii:
Vertical Image Adjustment Range ± 20 mm
(±
0.79")
Lateral Image Adjustment Range
± 2.0 mm (± 0.079")
Oiling System Centralized oiling system
Printing Press :
Single-phase, 208
V,
60Hz,
12
A
Single-phase, 208 V,
60Hz,
13.5
A*
Single-phase, 220
V,
50/60Hz, 11.5
A,
or
Single-phase, 208 V,
60Hz,
17.5 A
Power
other voltages
Single-phase, 220
V,
50 Hz,
13
A*
Dampening solution cooling/circulation
Single-phase, 220
V,
50/60Hz, 16.5
A,
or
device:
Single-phase, 200 V,
60Hz,
5.8 A
other voltages
Single-phase, 230 V, 50 Hz, 5.4 A
Introduction Edition- 1
