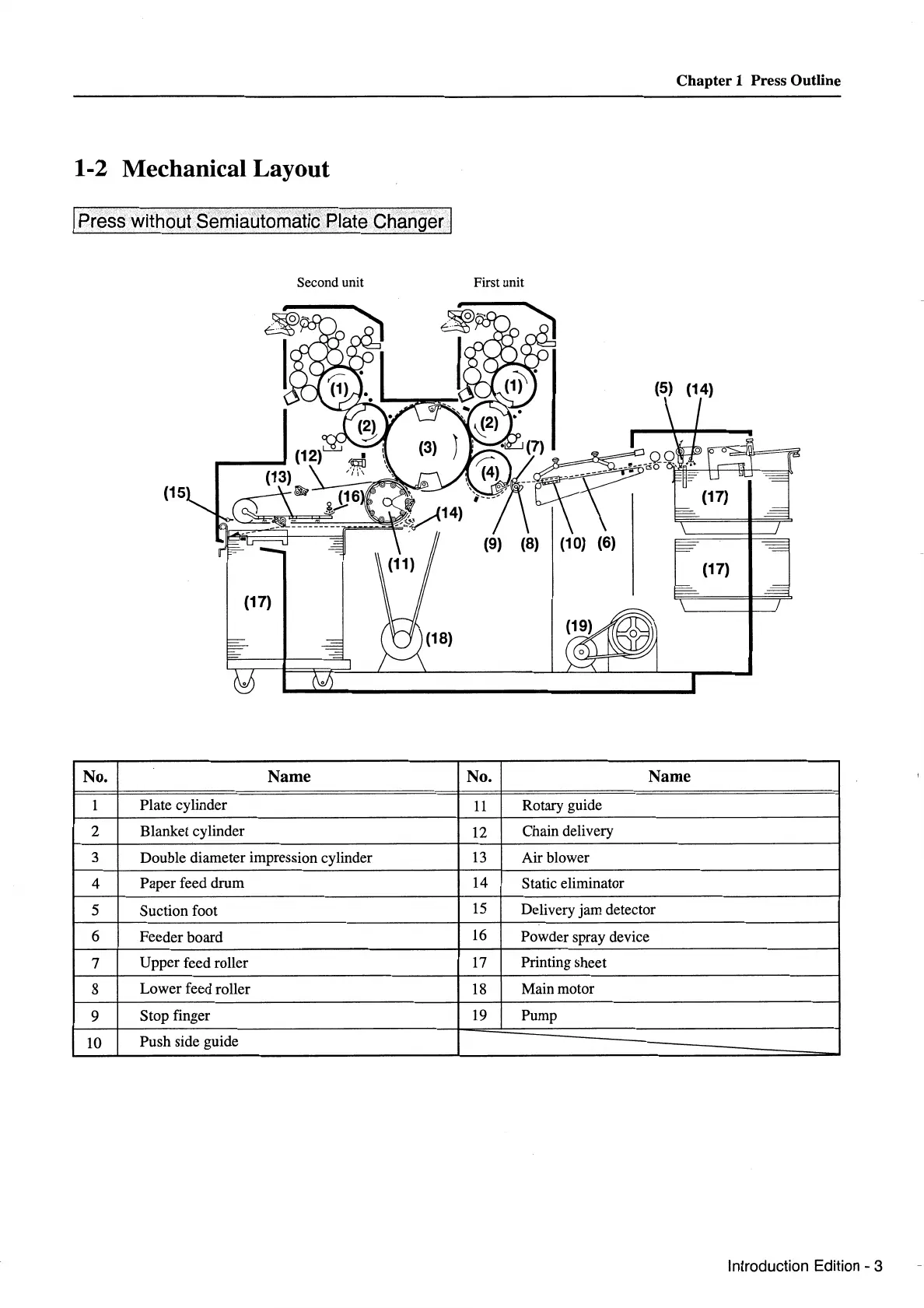

Chapter
1
Press
Outline
1-2
Mechanical
Layout
I
Press
without
Semiautomatic
Plate
Changer
I
Second
unit
First
unit
(5)
(14)
(15
No.
Name
No.
Name
1
Plate
cylinder
11
Rotary
guide
2
Blanket
cylinder
12
Chain
delivery
3
Double
diameter
impression
cylinder
13
Air
blower
4
Paper
feed
drum
14
Static
eliminator
5
Suction
foot
15
Delivery
jam
detector
6
Feeder
board
16
Powder
spray
device
7
Upper
feed
roller
17
Printing
sheet
8
Lower
feed
roller
18
Main
motor
9
Stop
finger
19
Pump
10
Push
side
guide
Introduction
Edition
-
3
40
42
Table of Contents
Default Chapter
8
Table of Contents
8
Safety Operation Edition
13
Chapter 1 Warning Labels
15
Warning Labels
15
Place to Apply the Warning Labels
17
Chapter 2 Precautions in the Operation Environment
21
Use and Storage of Organic Solvent
21
Press Noise
21
Chapter 3 Precautions When Installing and Moving the Press
22
Press Dimensions, Weight, and Power
22
Press Installing and Moving
23
Chapter 4 Precautions When Operating
24
Preparation and Procedures if an Emergency Happens
24
Cautions for Clothes
24
Mount the Covers and Safety Devices Properly! Never Alter the Safety Devices
24
Never "Crawl" and "Work" at the same Time
25
Mount the Cylinder Gap Safety Covers Properly
25
Be Sure of What the Other People Are Doing
25
Never Touch the Rotating Parts
25
Stop the Press before Doing the Setting Around the Rotating Parts! (in the Delivery Section)
26
Never Insert Your Hand Inside When Pulling out a Sheet
26
Never Touch the Electrical Parts with Wet Hands
27
Keep the Area Around the Press Clean
27
Never Use Broken Tools
27
Never Put Your Hand on the Feeder Pile While It Is Rising
27
Stop the Press before Doing the Setting Around the Rotating Parts! (in the Feeder Section)
28
(On the Feeder Board)
28
Chapter 5 Precautions When Doing Maintenance
29
Mount the Covers and Safety Devices Properly! Never Alter the Safety Devices
29
Stop the Rotation before Cleaning the Cylinders and Rollers
29
Wear Safety Goggles before Supplying or Replacing the Chemicals
29
Wear Safety Goggles before Using the Air Gun
30
Adjustment and Maintenance that Should be Done by the Operator
31
Never Replace any Parts Other than the Consumables
31
Chapter 6 Safety Devices
32
Safety Device Operation Indication
32
Safety Device Function Explanation
34
Introduction Edition
37
Chapter 1 Press Outline
39
Specifications
39
Mechanical Layout
41
Roller Arrangement
43
Cy Iinder Packing and Plate and Blanket Size
45
Chapter 2 Names and Functions
47
Feeder Section Operation Panel
47
Delivery Section Operation Panel
51
Ink and Water Operation Panel
56
Crawl Operation Panel
57
Unit Control Panel
60
Delivery Section Auxiliary Switch Panel
61
Paper Feed Section
65
Printing Section
69
Delivery Section
77
Dampening Solution Cooling/Circulation Device
81
Rp520-220F
92
Chapter 1 Operation Procedures
92
Press
93
Ipress
99
(Metal Plate, Polyester Plate, or Paper Master)
103
Setting the Paper Feed Section
113
Setting the Registration Section
119
Setting the Delivery Section
124
Test Feeding
126
Setting the Ink Section
127
Setting the Delivery Section Auxiliary Switch Panel
129
Setting the Impression Pressure Adjustment Dial
129
Test Printing
132
Adjustment of the Image Position
134
Printing
142
Plate Mounting and Removing, and Diagonal Image Ajustment Process
145
When Mounting a Plate
145
When Removing the Plate
147
When Mounting a Plate after Removing
148
When Mounting a Paper Master Without Clamping the Tail Edge
151
When Removing the Paper Master Without the Tail Edge Clamped
152
Chapter 3 Printing Practice
153
Minimum Size Paper Printing (Point)
153
Thin Paper Feeding [Paper with a Thickness Less than 0.08 MM (0.0031 ")] (Point)
156
Paper Feed and Delivery of Curled Paper (Point)
159
Mounting and Removing a Plate (Manually)
160
Positioning the Image When Printing a Third Color and Fourth Color in 2 Passes (Point)
163
Maintenance Edition
165
Chapter 1 Maintenance after the Printing
167
Cleaning the Ink Section
167
Cleaning the Water Section
170
Cleaning the Cylinder Section
172
Plate Preservation
174
Chapter 2 Periodic Inspection
176
Checking the Roller Pressure
176
Checking the Plate Pressure and Impression Pressure
187
Checking the Air Pump Nozzle Section
189
Chapter 3 Periodic Maintenance
190
Maintenance Item List
190
Maintenance Points
192
Chapter 4 Replacing the Supplies
196
Replacing the Blanket
196
Replacing the Sheet Separator
198
Replacing the Water Form Roller and Metering Roller
199
Replacing the Water Control Wiper
200
Replacing the Filter of the Dampening Solution Cooling/Circulation Device
201
Chapter 5 Troubles and Countermeasures
202
Error Message
202
Other Troubles
210
Optional Accessories Edition
217
Chapter 1 RYOBI PCS-F
220
Specifications
220
Names and Functions
224
Operation Procedures
227
Setting the Ink Fountain Key (Manually)
227
Formatting a Floppy Disk
228
Saving the Ink Fountain Key Opening Volume Data
229
Reading and Presetting the Ink Fountain Key Opening Volume Data
230
Returning to the Ink Fountain Key 0 Point
231
Copying the Ink Fountain Key Opening Volume Data
232
Deleting the Data from a Floppy Disk
233
Setting the Color and Conversion Curve Number for each Unit
234
Setting the Ink Section
238
Maintenance after the Printing
240
Cleaning the Ink Fountain and Ink Fountain Roller
240
Chapter 2 Blanket Cleaning Device
244
Operation Procedures
245
Maintenance
247
Caution When Replacing the Blanket
249
