Chapter
1 Operation Procedures
IPress.•without
$erT1IautornatidPiateChangerl

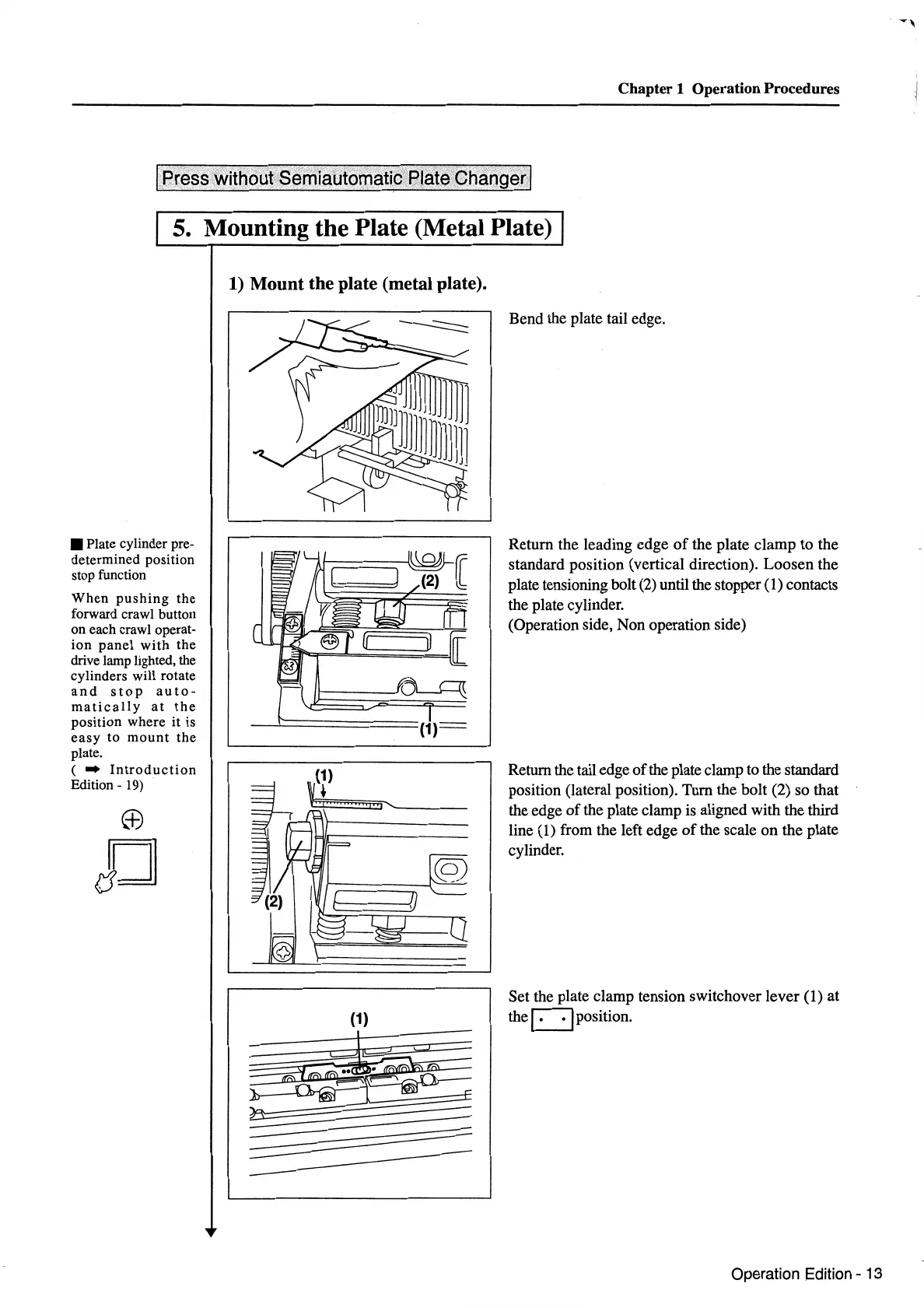

5. Mounting the Plate (Metal Plate)
• Plate cylinder pre-
determined position
stop function
When
pushing
the
forward crawl button
on each crawl operat-
ion
panel
with
the
drive lamp lighted, the
cylinders will rotate
and
stop
auto-
matically
at
the
position where it is
easy
to
mount
the
plate.
( •
Introduction
Edition -
19)
1) Mount the plate (metal plate).
_I::::=::::====(1)=
Bend the plate tail edge.
Return the leading edge
of
the plate clamp to the
standard position (vertical direction). Loosen the
plate tensioning bolt (2) until the stopper
(1) contacts
the plate cylinder.
(Operation side, Non operation side)
Return the tail edge
of
the plate clamp to the standard
position (lateral position). Tum the bolt (2) so that
the edge
of
the plate clamp is aligned with the third
line
(1) from the left edge
of
the scale on the plate
cylinder.
Set the plate clamp tension switchover lever (1) at
the
D position.
Operation Edition - 13
To Next Page
