Chapter 4 Replacing the Supplies

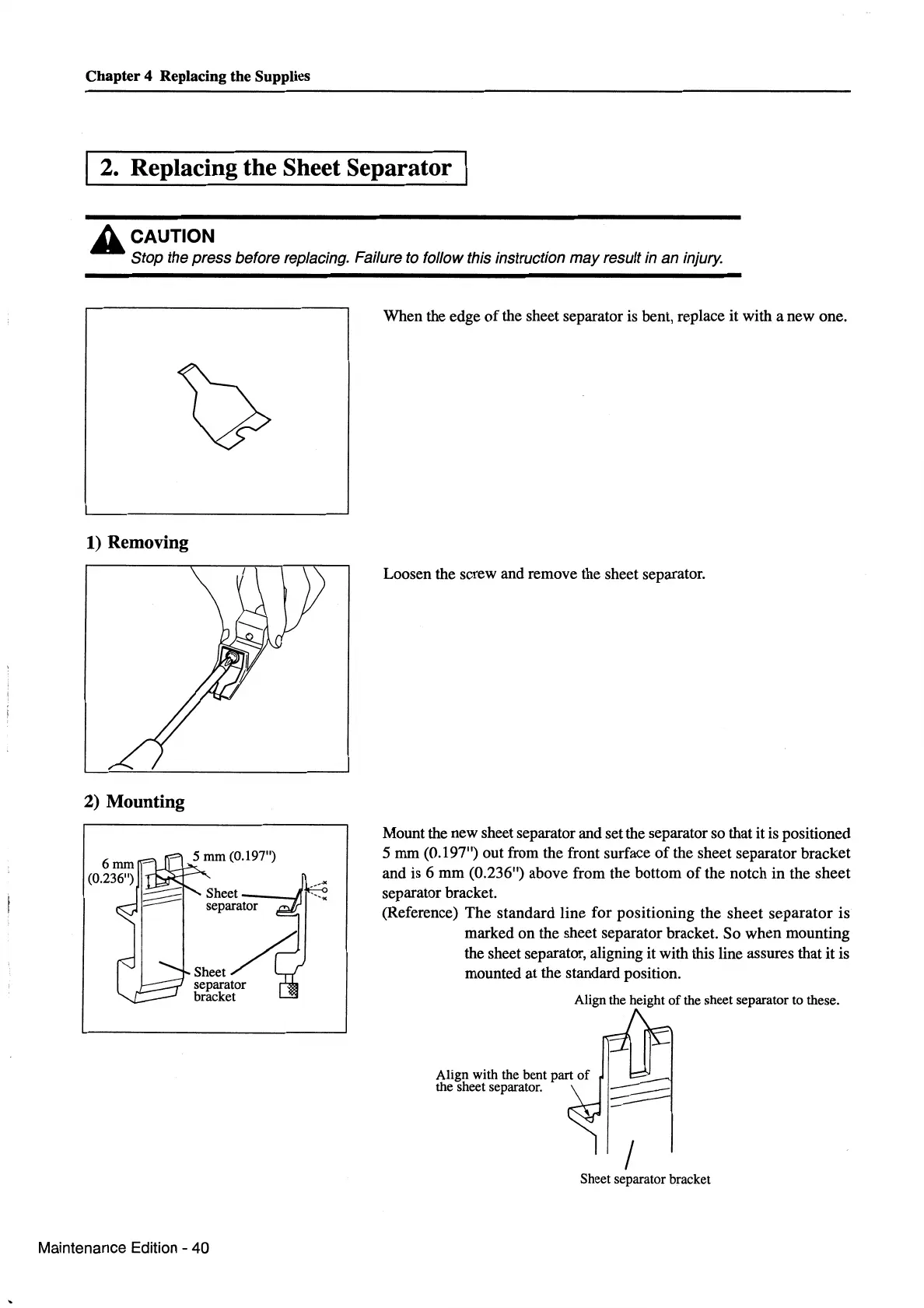

2. Replacing the Sheet Separator
A CAUTION
Stop the
press
before replacing. Failure to follow this instruction
may
result in an injury.
1)
Removing
2) Mounting
Maintenance Edition - 40
When the edge
of
the sheet separator
is
bent, replace it with a new one.
Loosen the screw and remove the sheet separator.
Mount the new sheet separator and set the separator so that it is positioned
5 mm (0.197'') out from the front surface
of
the sheet separator bracket
and is 6 mm (0.236") above from the bottom
of
the notch in the sheet
separator bracket.
(Reference) The standard line for positioning the sheet separator is
marked on the sheet separator bracket. So when mounting
the sheet separator, aligning
it
with this line assures that it is
mounted at the standard position.
Align the height
of
the sheet separator to these.
Align with the bent part
of
the sheet separator.
I
Sheet separator bracket
To Next Page
