Chapter 2 !Press with Semiautomatic Plate Changer! Plate Mounting and Removing, and Diagonal Image Adjustment Process

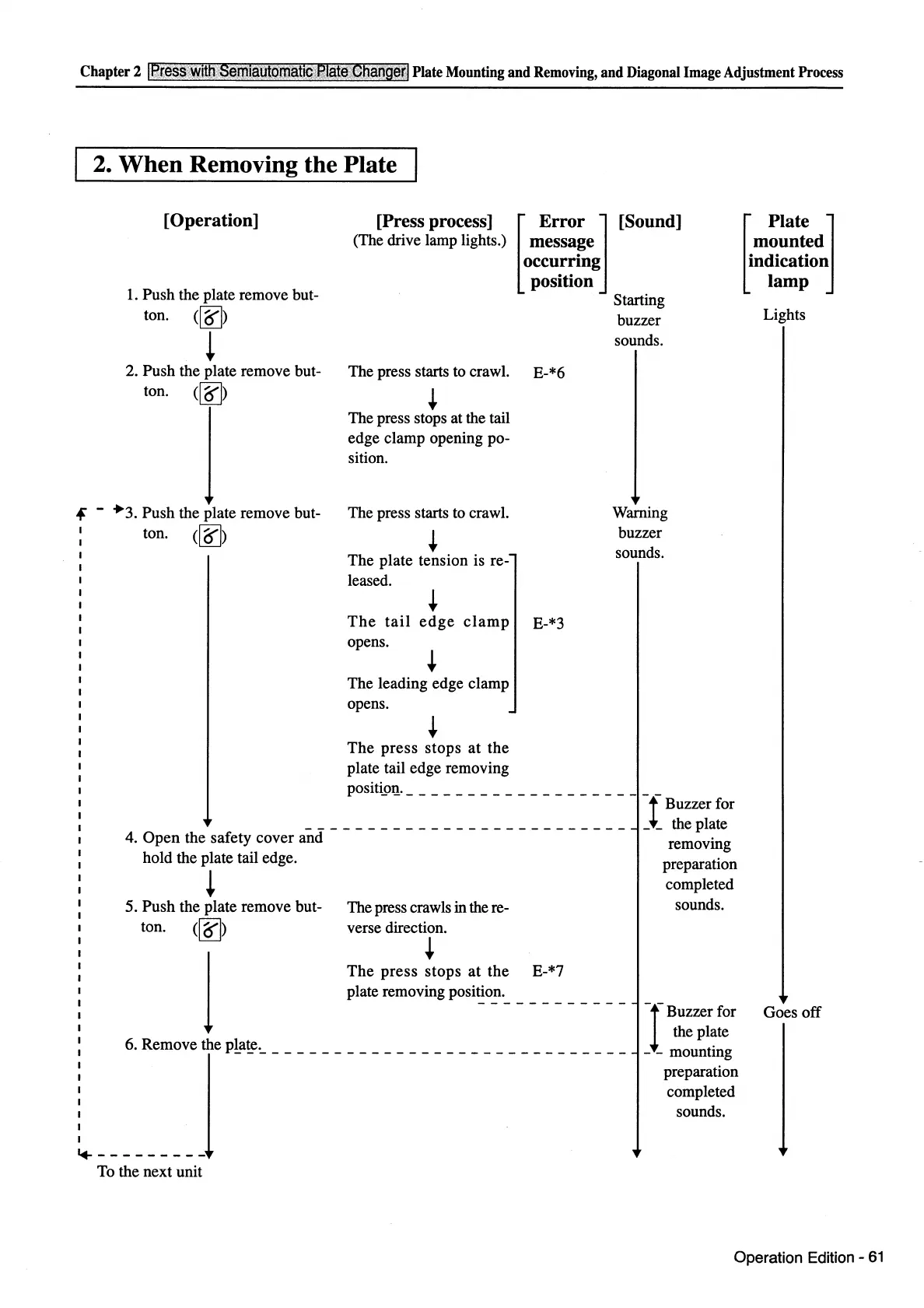

2. When Removing the Plate
[Operation]
1. Push the plate remove but-
ton.
(~)
!
2. Push the plate remove but-
ton.
(~)
[Press process]
(The drive lamp lights.)
[
Error ] [Sound]
message
occurring
position
Starting
buzzer
sounds.
The press starts to crawl. E-*6
+
The press stops at the tail
edge clamp opening po-
sition.
+ - •3. Push the plate remove but- The press starts to crawl.
Warning
buzzer
sounds.
ton.
(~) +
The plate tension is re-
leased.
+
The tail edge clamp E-*3
opens.
+
The leading edge clamp
opens.
The press stops at the
plate tail edge removing
positi,!>Q. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ __
! Buzzerfor
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ the plate
4. Open the safety cover and
hold the plate tail edge.
l
5. Push the plate remove but-
ton.
(~)
l
The press crawls in there-
verse direction.
+
The press stops at the
plate removing position.
E-*7
------------
6. Remove the pla~:... ____________________________ _
..,. ________ _
To the next unit
removing
preparation
completed
sounds.
-1- Buzzer for
the plate
--mounting
preparation
completed
sounds .
[
Plate ]
mounted
indication
lamp
Lights
Goes off
Operation Edition- 61
