4.10.8.1 Connecting the cable shields (FSAA…FSC)
For EMC-compatible wiring, you must use shielded cables to the motor and to the braking
resistor. Connect the cable shields to the shield plate of the converter. The shield support for
converter FSA is displayed as an example.
A ferrite core in the power cable is additionally required for the converter FSAA, 2.2kW.
① Unshielded line cable
② Toothed tapes on the shield plate of the converter
③ Shielded cable to the braking resistor
④ Shield clamp for the cable to the terminal strip on the shield plate of the converter
⑤ Shielded cables to the terminal strip, to the eldbus and to the motor temperature sensor
⑥ Shielded motor cable
⑦ Unlacquered, good electrically conducting mounting plate
⑧ Supplied ferrite core in the line cable, relevant only for FSAA, 2.2kW (6SL3210-1KE15-8A.2)

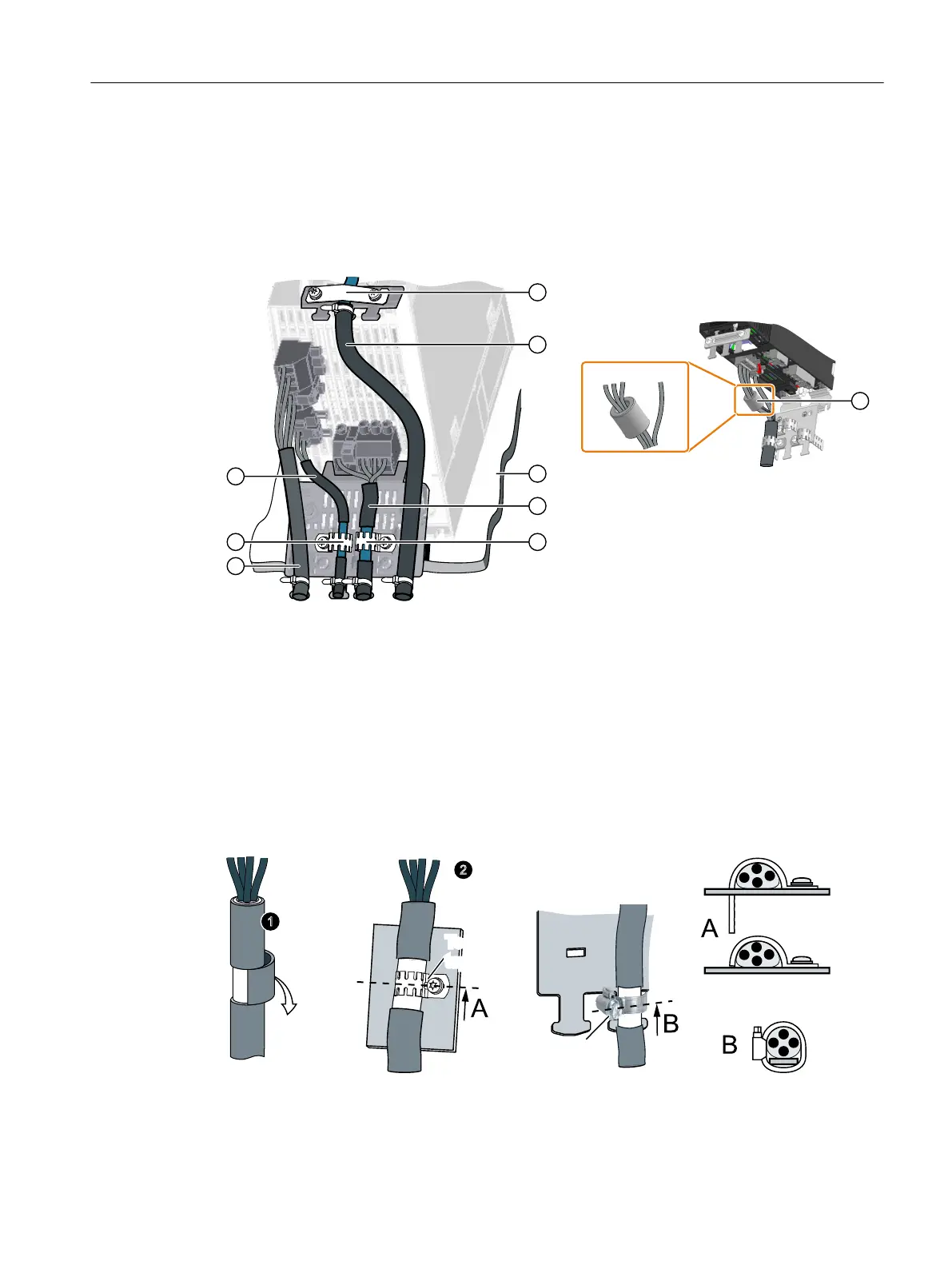

Figure4-42 EMC-compliant wiring shown using the example of a frame size A and frame size AA
converter
%DUHVKLHOG
0RXQWLQJSODWH
6KLHOGSODWH
&RQQHFWVKLHOG
7RRWKHG
WDSH
+RVHFODPS
Figure4-43 EMC-compliant shield connection
Installing
4.10Connecting the interfaces for the converter control
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 107
