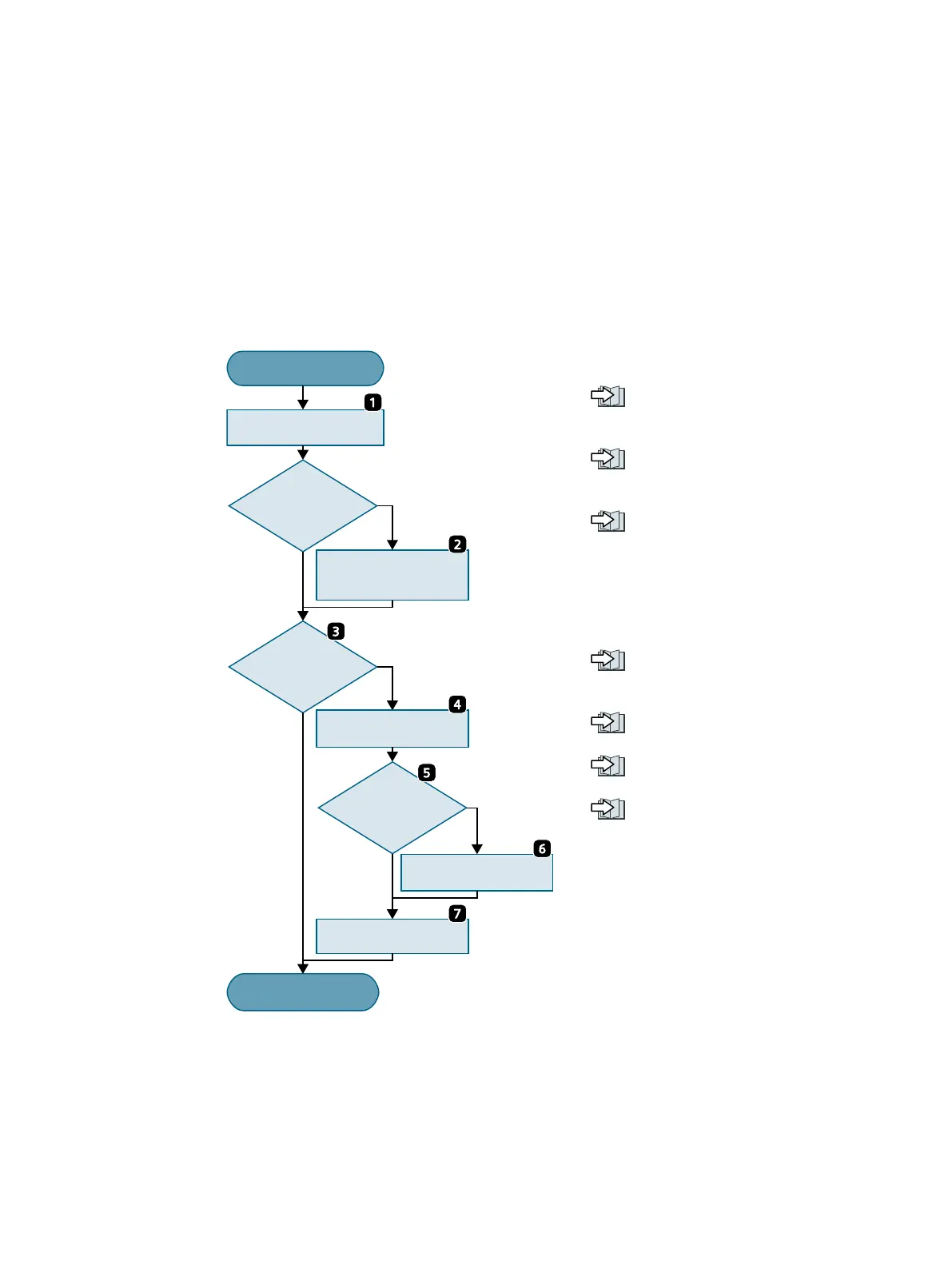

5.1 Commissioning guidelines
Overview
5IFDPOWFSUFSJT
JOTUBMMFE
$PNNJTTJPOJOHJT
DPNQMFUFE
1SFQBSFGPS
DPNNJTTJPOJOH
1FSGPSNRVJDL
DPNNJTTJPOJOH

*TUIF
GBDUPSZTFUUJOH
TV꫾DJFOU

%PFTUIF
DPOWFSUFSIBWF
UIFGBDUPSZ
TFUUJOH

*TRVJDL
DPNNJTTJPOJOH
TV꫾DJFOU
/P
:FT
1FSGPSNFYUFOEFE
DPNNJTTJPOJOH
#BDLJOHVQEBUB
/P
:FT
3FTUPSFUIFGBDUPSZ
TFUUJOHTGPSUIFDPOWFSUFS
/PPSVOLOPXO
:FT







1. De󹪝ne the requirements to be met by the
drive for your application.
(Page121)
2. Restore the factory settings of the con‐
verter if necessary.
(Page153)
3. Check if the factory setting of the con‐
verter is su󹪟cient for your application.
(Page122)
4. Set the following for quick commission‐
ing of the drive:
– The closed-loop motor control
– The inputs and outputs
– The 󹪝eldbus interface
(Page124)
5. Check if additional converter functions
are required for the application.
(Page183)
6. If necessary, adapt the drive.
(Page183)
7. Save your settings.
(Page165)
