10.2.1.3 Manual download from the memory card using Startdrive
Overview
If you have backed up the settings of several converters on the memory card, the settings
download must be started manually.
Requirement
The following preconditions apply:
• The converter power supply has been switched on.
• The PC and converter are connected with one another via a USB cable or via the eldbus.
• The converter settings are not protected against copying.
Download with active know-how protection with copy protection (Page401)
Function description
Procedure

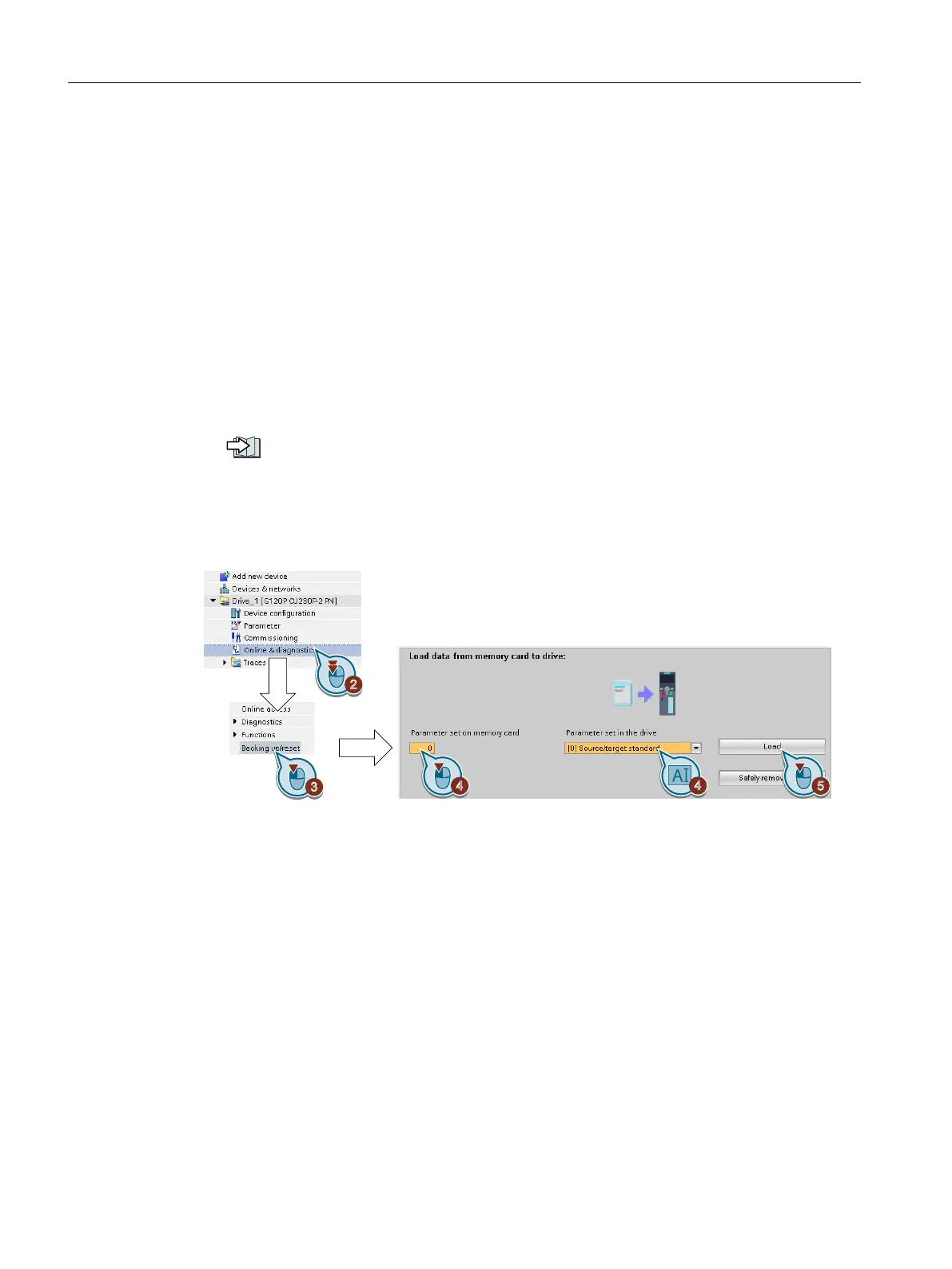

1. Go online.
2. Select "Online & diagnostics".
3. Select "Back up/reset".
4. Set the number of your data backup. You can back up 99 dierent settings on the memory
card.
5. Start the data transfer.
6. Wait until Startdrive has signaled that the data transfer has been completed.
7. Go oine.
You have transferred your settings from a memory card to the converter.
❒
Corrective maintenance
10.2Downloading the converter settings
SINAMICS G120C Converters
384 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK
