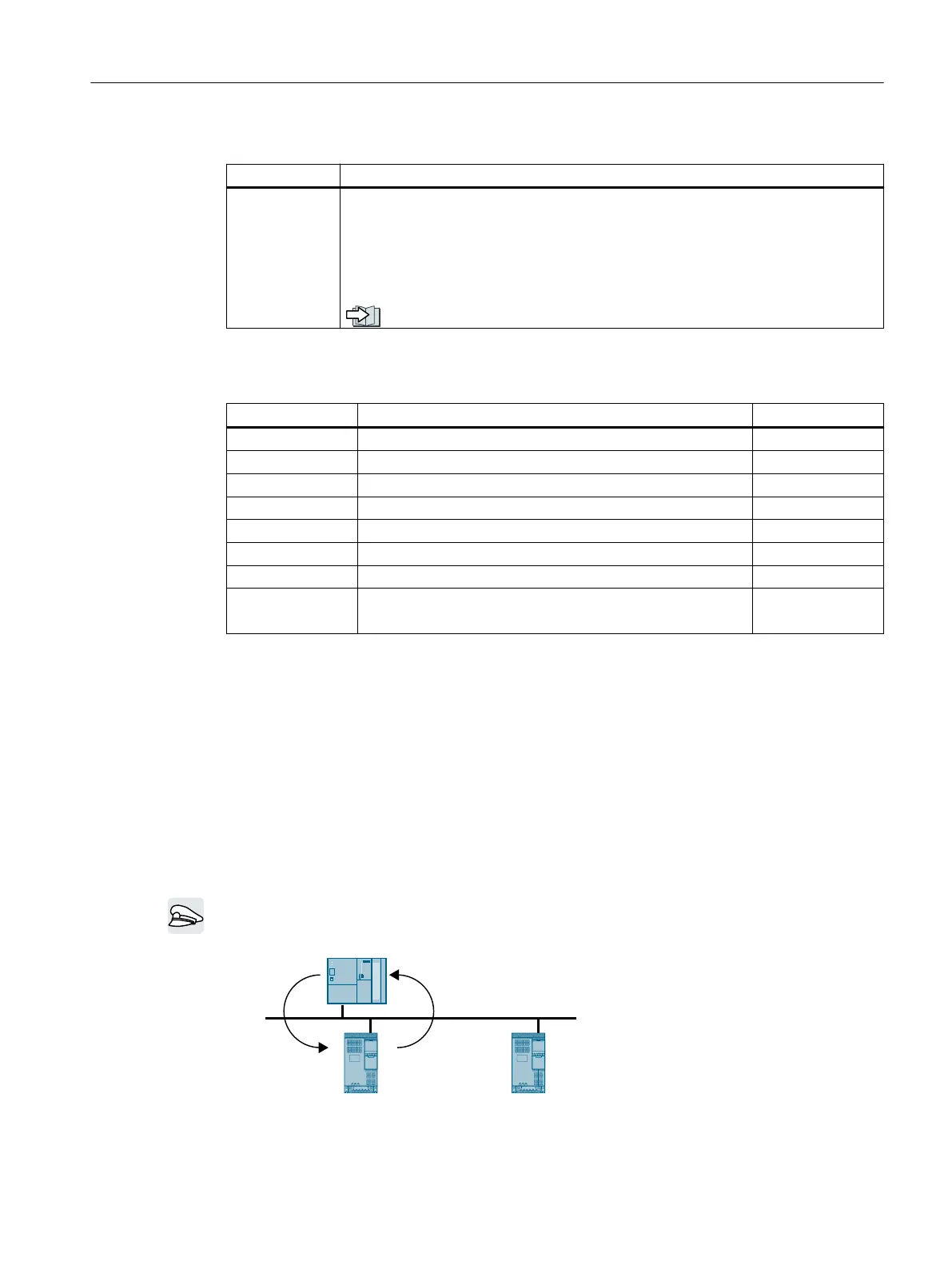

Table 8-21 Set three-wire control, enable/ON/reverse in quick commissioning
Parameter Description
p0015=20 Macro drive unit
Assigning digital inputs to the commands:
• Digital input0: Enable/OFF1
• Digital input1: ON
• Digital input2: Reversing
Default setting of the interfaces (Page92)
Parameter
Parameter Description Factory setting
r0722.0…n CO/BO: CU digital inputs, status -
p0840[C] BI: ON/OFF (OFF1) 0
p1113[C] BI: Setpoint inversion 0
p3330[C] BI: 2/3 wire control command 1 0
p3331[C] BI: 2/3 wire control command 2 0
p3332[C] BI: 2/3 wire control command 3 0
r3333.0…n CO/BO: 2/3 wire control control word -
p3334 2/3 wire control selection
4: Three-wire control enable/ON/reverse
0
8.6 Drive control via PROFIBUS or PROFINET
8.6.1 Receive data and send data
Overview
Cyclic data exchange
The converter receives cyclic data from the higher-level control - and returns cyclic data to
the control.
6HQGGDWD5HFHLYHGDWD
Figure8-11 Cyclic data exchange
Converter and higher-level control system package their data in the form of telegrams.
Advanced commissioning
8.6Drive control via PROFIBUS or PROFINET
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 211
