Parameter
Table 8-4 Frequently used connector inputs (CI) of the converter
Parameter Description Factory setting
p1070[C] CI: Main setpoint 0
p1075[C] CI: Supplementary setpoint 0
p2253[C] CI: Technology controller setpoint 1 0
p2264[C] CI: Technology controller actual value 0
You can nd additional connector inputs in the parameter list.
Overview of the manuals (Page465)
Further information
Using an analog input as a digital input
An analog input can also be used as a digital input.
Digital inputs (Page189)

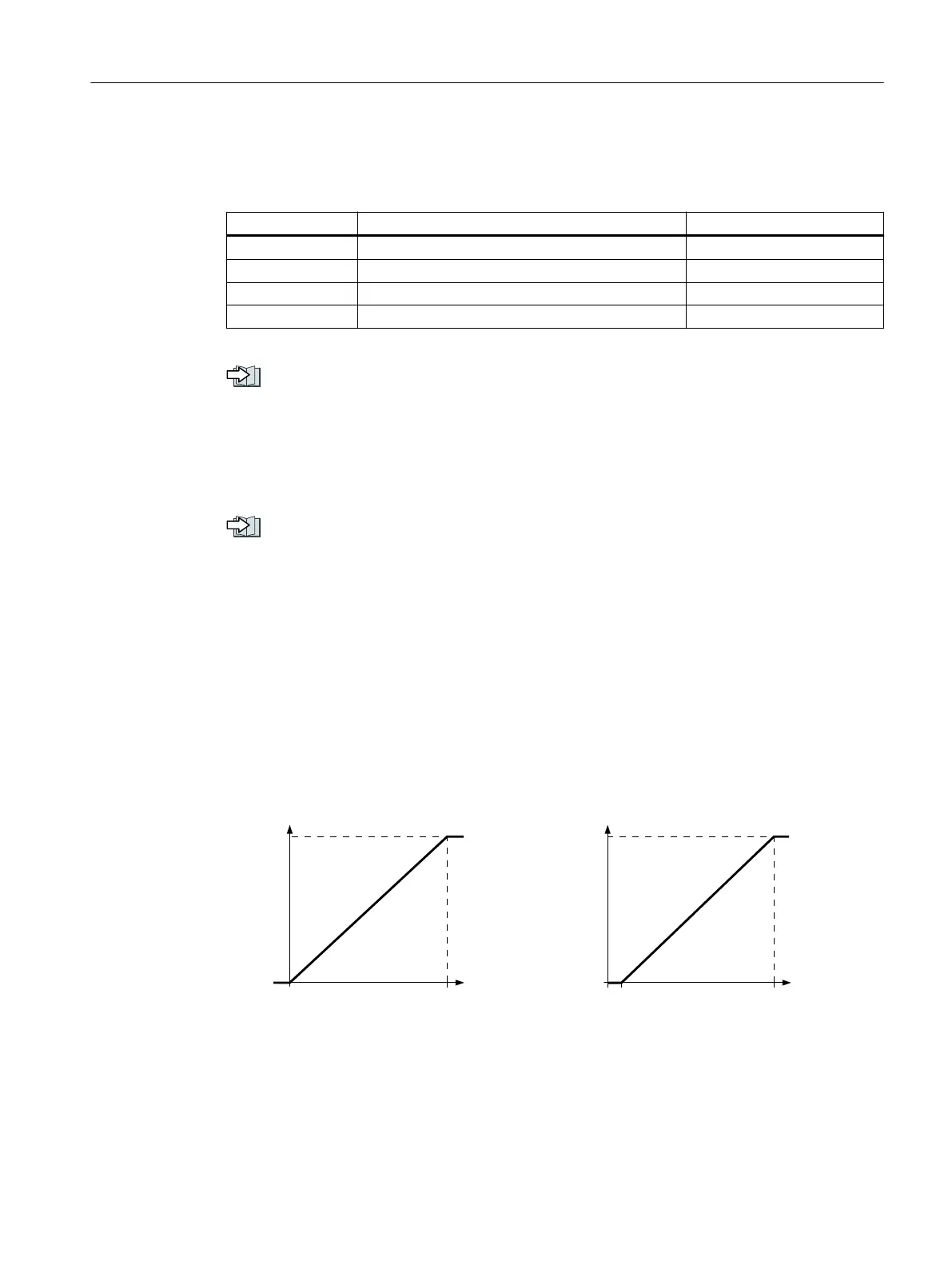

8.4.6 Adjusting characteristics for analog input
Function description
If you change the analog input type using p0756, then the converter automatically selects the
appropriate scaling of the analog input. The linear scaling characteristic is dened using two
points (p0757, p0758) and (p0759, p0760). Parameters p0757…p0760 are assigned to an
analog input via their index, e.g. parameters p0757[0]…p0760[0] belong to analog input0.
9ROWDJHLQSXW99&XUUHQWLQSXWP$P$
S S
[
S
\
S
[
S
\
S
P$
[
S
\
S
[
S
\
S
9
You must dene your own characteristic if none of the default types match your particular
application.
Advanced commissioning
8.4Adapt the default setting of the terminal strip
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 195
