5.3.2 Converter factory setting
Motor
With its factory settings, the converter is set up for an induction motor suitable for the power
rating of the Power Module.
Converter interfaces
The inputs and outputs and the eldbus interface of the converter have specic functions when
set to the factory settings.
Factory setting of the interfaces (Page89)
Switching the motor on and o
0RWRUVSHHG
&ORFNZLVHURWDWLRQ
&RXQWHUFORFNZLVHURWDWLRQ
5HYHUVLQJ
6HWSRLQW
USP
6HWSRLQWLQYHUWHG
212))
VV
W
W
W

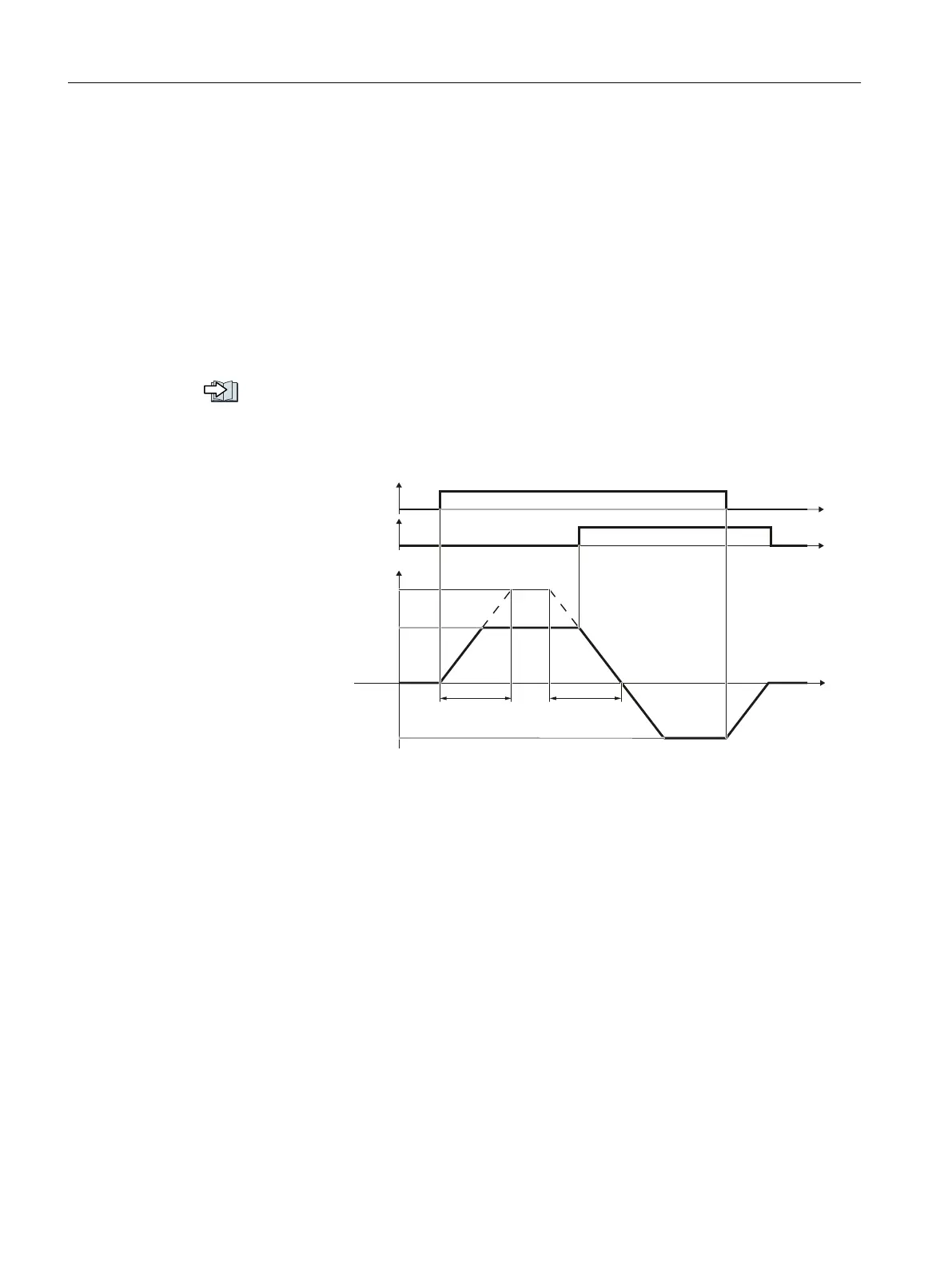

Figure5-2 Switching on and switching o the motor and reversing in the factory setting
The converter is set in the factory as follows:
• After the ON command, the motor accelerates with a ramp-up time of 10s (referred to
1500rpm) to its speed setpoint.
• After the OFF1 command, the motor brakes down to standstill with 10 s ramp-down time.
• The motor direction of rotation reverses with the reversing command.
The ramp-up and ramp-down times dene the maximum motor acceleration when the speed
setpoint changes. The ramp-up and ramp-down time is derived from the time between motor
standstill and the maximum speed, or between the maximum speed and motor standstill.
Commissioning
5.3Preparing for commissioning
SINAMICS G120C Converters
122 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK
