8.34 Switchover between dierent settings
Overview
In several applications, the converter must be able to be operated with dierent settings.
Example:
Dierent motors are operated on one converter. Depending on the particular motor, the
converter must operate with the associated motor data and the appropriate ramp-function
generator.
Function description
Drive Data Sets (DDS)
Your can parameterize several converter functions dierently and then switch over between
the dierent settings.
Note
You can only switch over the motor data of the drive data sets in the "ready" state with the motor
switched o. The switchover time is approx. 50ms.
If you do not switch over the motor data together with the drive data sets (i.e. same motor
number in p0826), then the drive data sets can also be switched over in operation.
The associated parameters are indexed (index 0 or 1). Via control commands select one of
the two indices and therefore one of the two saved settings.
The settings in the converter with the same index are known as drive data set.

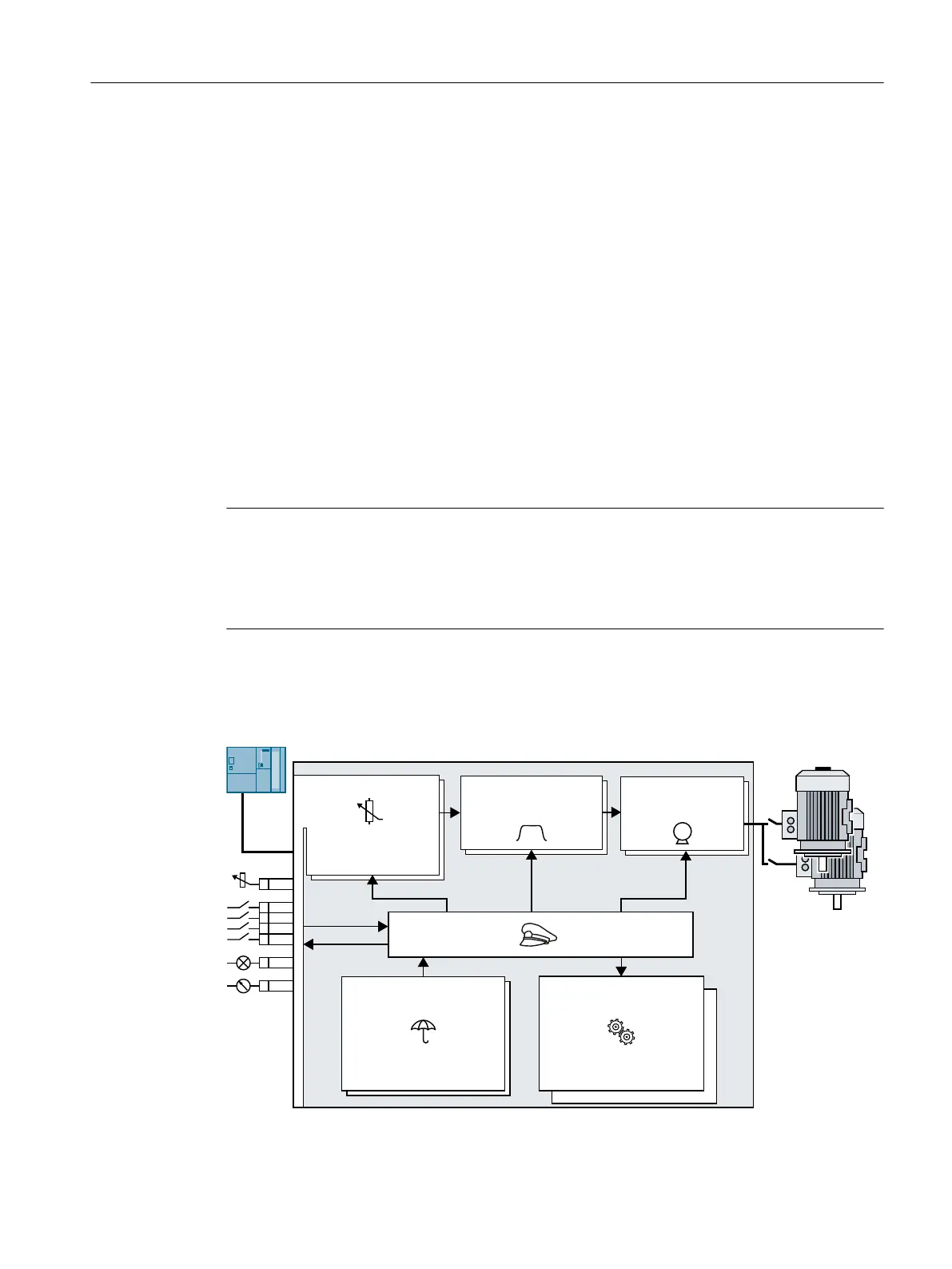

0
6HWSRLQW
SURFHVVLQJ
0RWRUFRQWURO
6HWSRLQWV
)L[HGVHWSRLQWV
0RWRUL]HGSRWHQWLRPHWHU
-RJJLQJ
%UDNHV
)O\LQJUHVWDUW
6\VWHPSURWHFWLRQ
$SSOLFDWLRQ
VSHFLILF
2YHUFXUUHQW
2YHUYROWDJH
2YHUWHPSHUDWXUH
3URWHFWLRQDQG
PRQLWRULQJ
''6
''6
Advanced commissioning
8.34Switchover between dierent settings
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 359
