8.17.3 Specifying the setpoint via the eldbus
Function description
0DLQVHWSRLQW
6FDOLQJ
6FDOLQJ
6XSSOHPHQWDU\VHWSRLQW
5HFHLYHZRUG3='
5HFHLYHZRUG3='
S
S
S
U
U
S
U>@

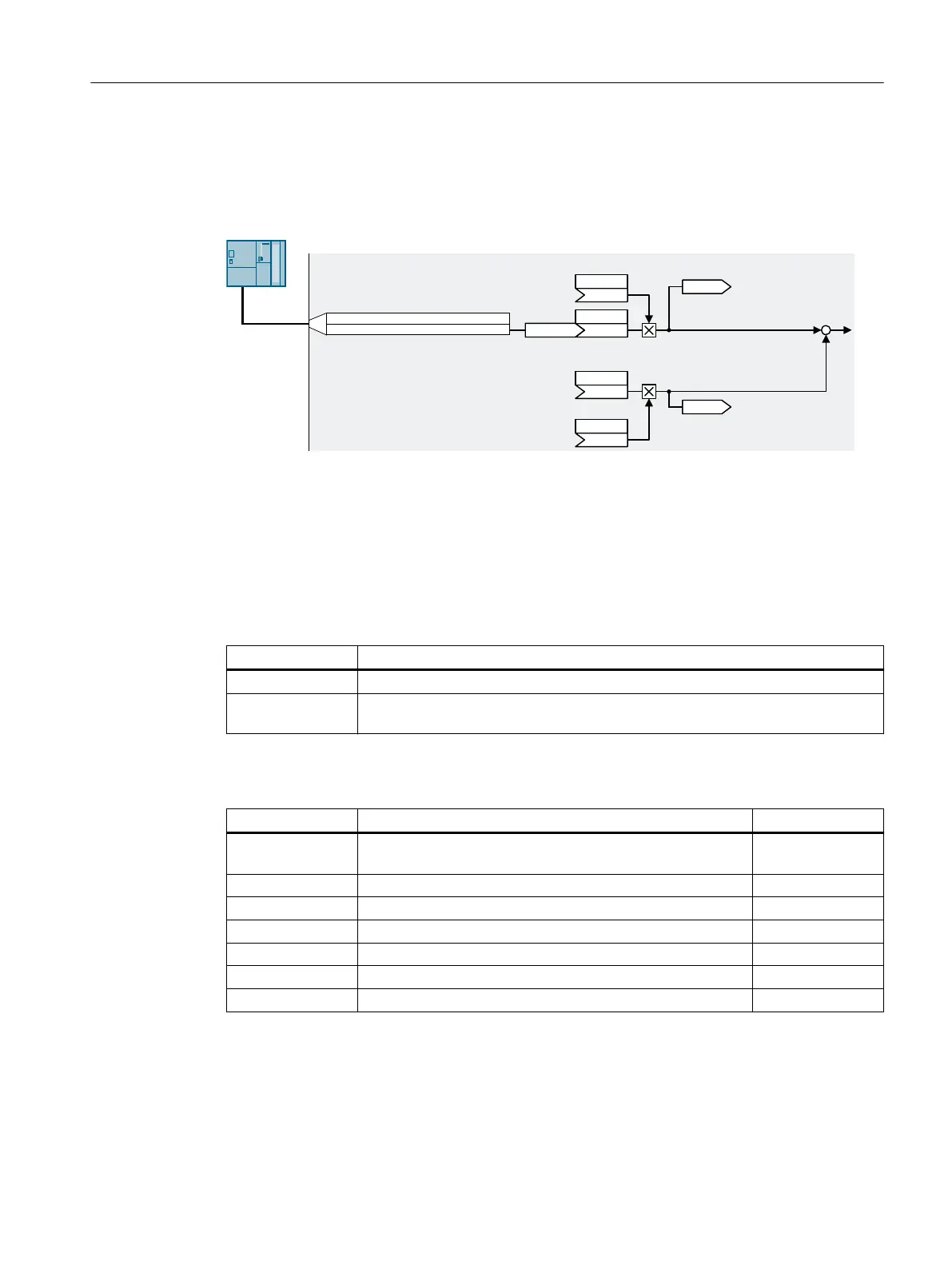

Figure8-34 Fieldbus as setpoint source
In the quick commissioning, you dene the preassignment for the converter interfaces.
Depending on what has been preassigned, after quick commissioning, the receive word
PZD02 can be interconnected with the main setpoint.
Example
Setting with receive word PZD02 as setpoint source:
Parameter Description
p1070 = 2050[1] Interconnects the main setpoint with the receive word PZD02 from the eldbus.
p1075 = 2050[1] Interconnects the supplementary setpoint with receive word PZD02 from the eld‐
bus.
Parameters
Number Name Factory setting
p1070[C] CI: Main setpoint Dependent on the
converter
p1071[C] CI: Main setpoint scaling 1
r1073 CO: Main setpoint active - rpm
p1075[C] CI: Supplementary setpoint 0
p1076[C] CI: Supplementary setpoint scaling 1
r1077 CO: Supplementary setpoint eective - rpm
r2050[0…11] CO: PROFIdrive PZD receive word -
Advanced commissioning
8.17Setpoints
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 273
