4.3 Mounting base components

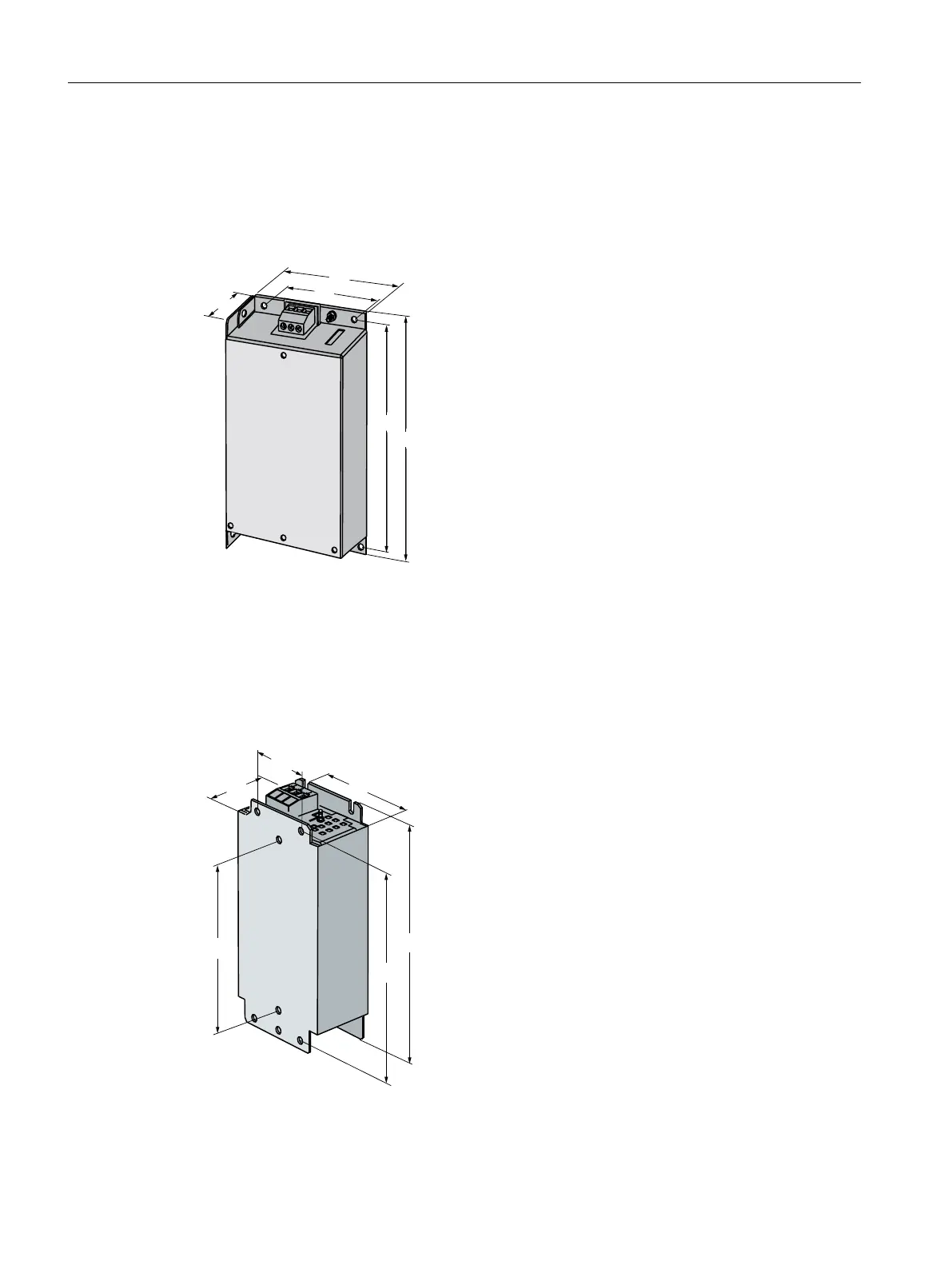

Dimensions
All dimensions in mm
K
E
7
+
%
 FSAA, FSA FSB FSC
B 73 100 140
b 62.3 80 120
H 202 297 359
h 186 281 343
T 65 85 95
Figure4-6 Line 󹪝lter






Figure4-7 Line reactor
Installing
4.3Mounting base components
SINAMICS G120C Converters
46 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK
