4.10.9 Fieldbus interfaces
Overview
The Control Units are available in di󹪜erent versions for communication with higher-level
controls with the subsequently listed 󹪝eldbus interfaces:
Fieldbus Pro󹪝les S7 commu‐
nication
2)
Control Unit
PROFIdrive PROFIsafe
1)
PROFIenergy
2)
PROFINET ✓ ✓ ✓ ✓ G120CPN
EtherNet/IP
2)
--- ---
PROFIBUS ✓ ✓ --- ✓ G120CDP
USS
2)
--- --- G120C USS/MB
Modbus RTU
2)
--- ---
1)
Information on PROFIsafe can be found in the "Safety Integrated" Function Manual.
2)
Information about these 󹪝eldbuses, pro󹪝les and communication types can be found in the
"Fieldbus" Function Manual.
Overview of the manuals (Page465)
4.10.10 Connecting the converter to PROFINET
4.10.10.1 Communication via PROFINET IO and Ethernet
You can either integrate the converter in a PROFINET network or communicate with the
converter via Ethernet.
The converter in PROFINET IO operation
1$4VQFSWJTPS
130'*/&5
4*."5*$4
$POUSPMMFS
4*/".*$4
(%
4*/".*$4
(%
4*/".*$4(
4*/".*$4($
4*/".*$4(9

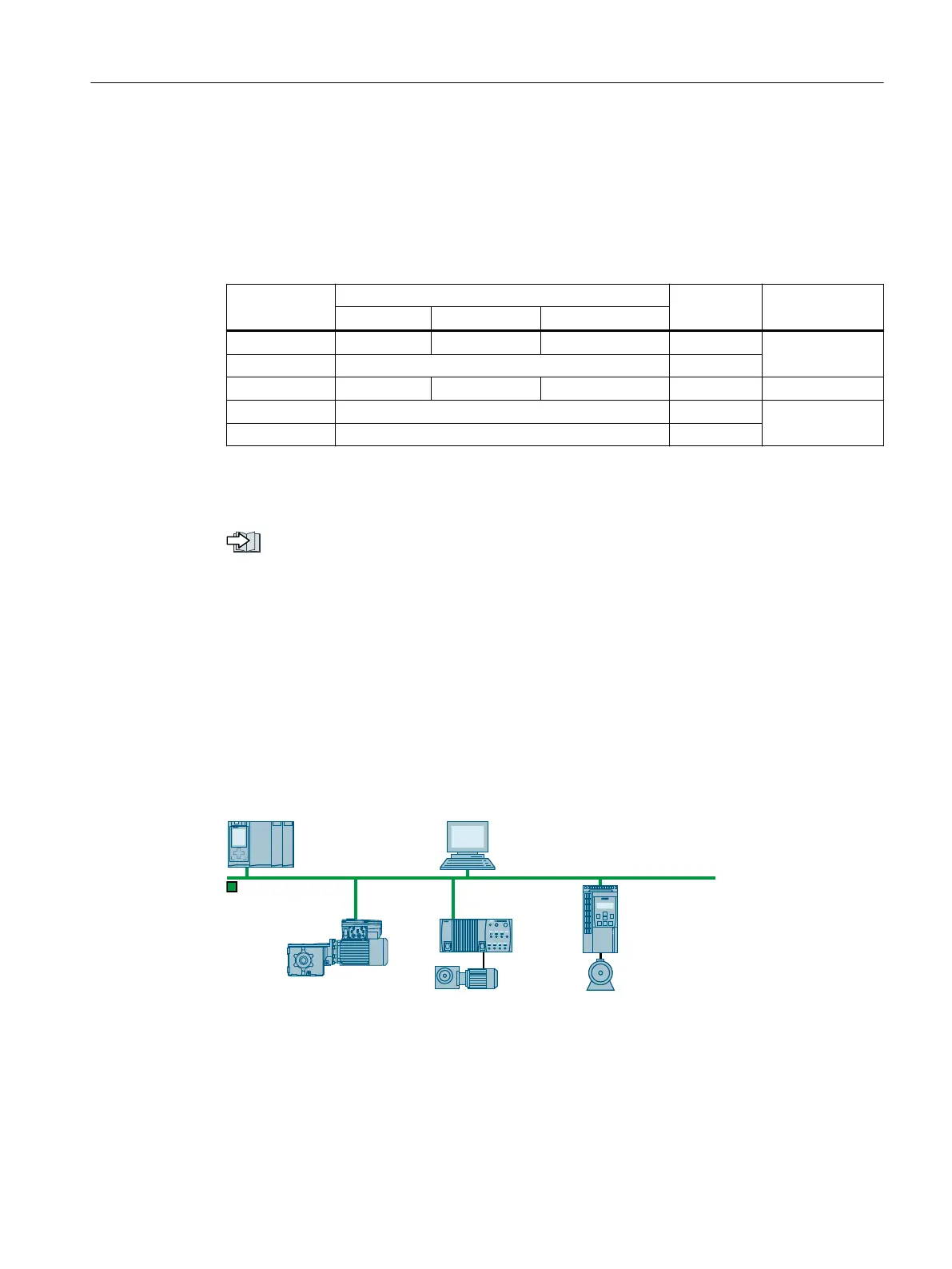

Figure4-44 The converter in PROFINET IO operation (examples)
The converter supports the following functions:
• RT
• IRT: The converter forwards the clock synchronism, but does not support clock synchronism.
Installing
4.10Connecting the interfaces for the converter control
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 109
