4.10.8.2 Connecting cable shields (FSD … FSF)
Connect cables at the converter so that they are EMC compliant

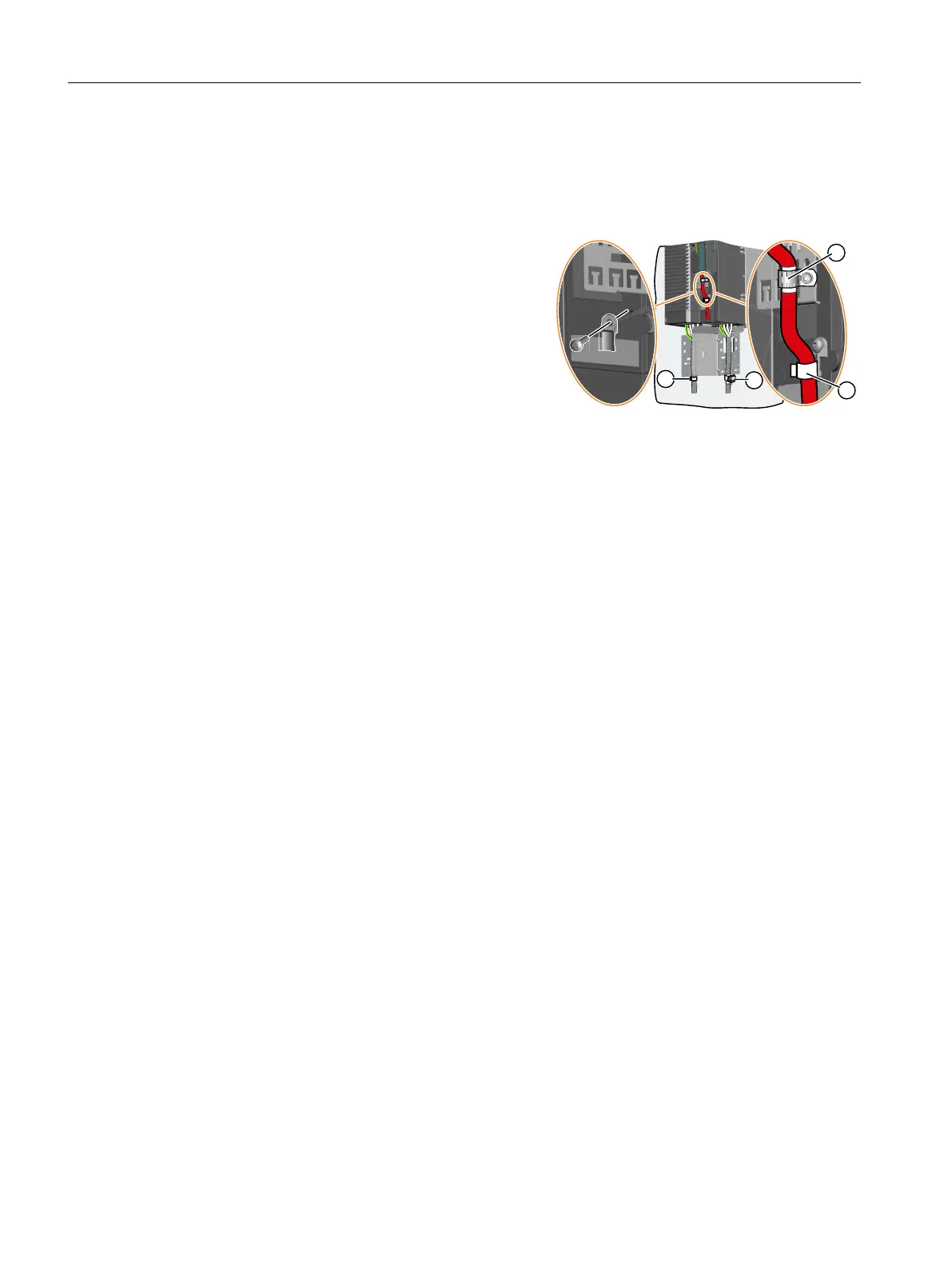

Attach the cable tie holders to the Power Mod‐
ule as shown to the left in the diagram before
you establish the connections.
Fix the line connecting cable using a cable tie
as shown in ①.
Fix the shield of the motor connecting cable
using a hose clamp (②).
Connect the shield of the control cable with the
shield plate of the Control Unit (③) using a
steel band. Also attach the control cable to the
Power Module using a cable tie (④).
Installing
4.10Connecting the interfaces for the converter control
SINAMICS G120C Converters
108 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK
