8.17.2 Analog input as setpoint source

Function description

$QDORJLQSXWDFWXDOYDOXH

0DLQVHWSRLQW

6FDOLQJ

6XSSOHPHQWDU\VHWSRLQW

S

S

S

U

U

S

$,

$,

U>@



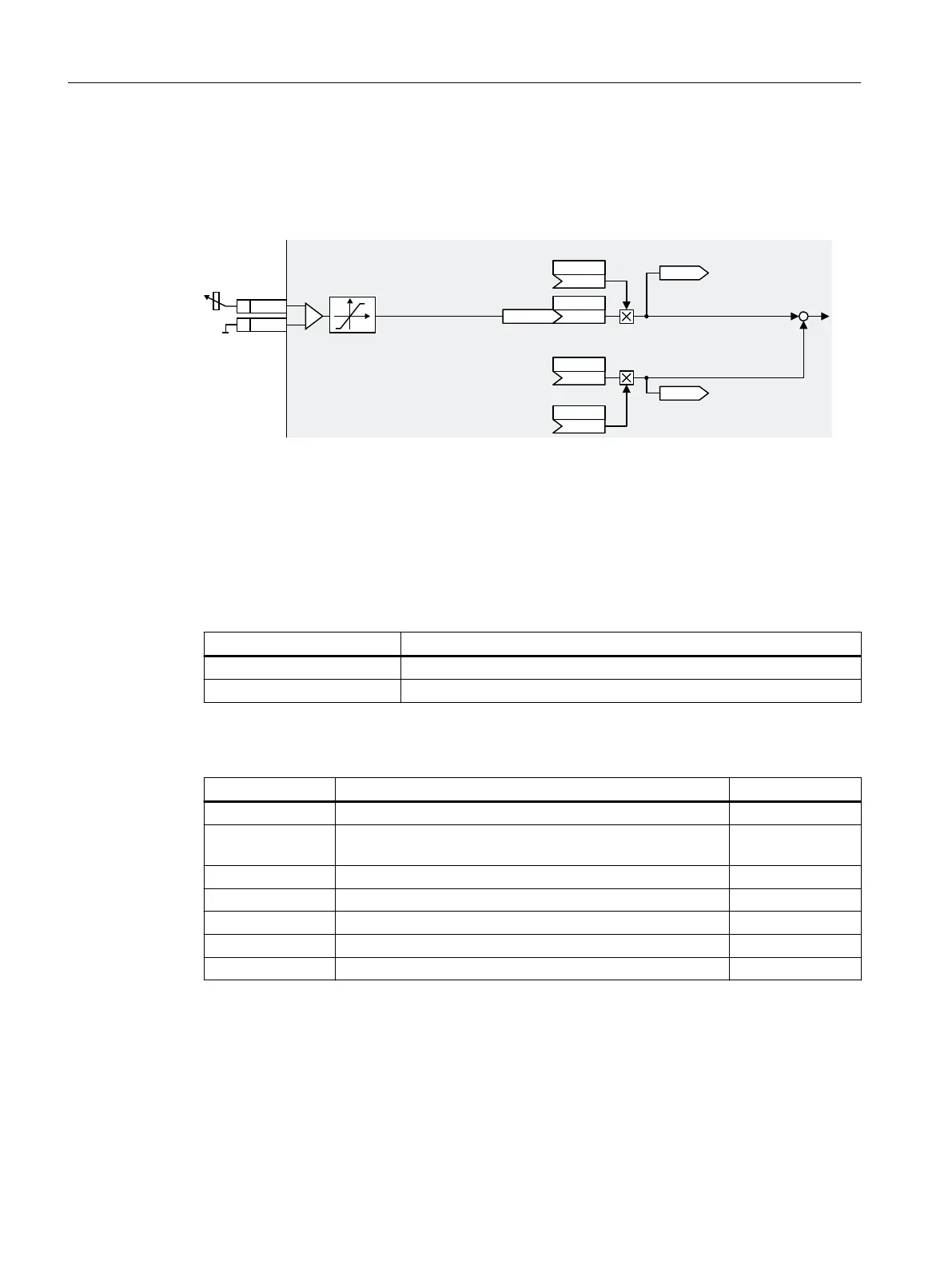

Figure8-33 Example: Analog input 0 as setpoint source

In the quick commissioning, you de󹪝ne the preassignment for the converter interfaces.

Depending on what has been preassigned, after quick commissioning, the analog input can

be interconnected with the main setpoint.

Example

Setting with analog input0 as setpoint source:

Parameter Description

p1070 = 755[0] Interconnects main setpoint with analog input0

p1075 = 755[0] Interconnects supplementary setpoint with analog input0

Parameters

Number Name Factory setting

r0755[0…1] CO: CU analog inputs, actual value in percent - %

p1070[C] CI: Main setpoint Dependent on the

converter

p1071[C] CI: Main setpoint scaling 1

r1073 CO: Main setpoint active - rpm

p1075[C] CI: Supplementary setpoint 0

p1076[C] CI: Supplementary setpoint scaling 1

r1077 CO: Supplementary setpoint e󹪜ective - rpm

Advanced commissioning

8.17Setpoints

SINAMICS G120C Converters

272 Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK
