5.5.9 Identify motor data
Overview
Using the motor data identication, the converter measures the data of the stationary motor. In
addition, based on the response of the rotating motor, the converter can determine a suitable
setting for the vector control.
To start the motor data identication routine, you must switch on the motor.
Identifying the motor data and optimizing the closed-loop control
Requirements
• You have selected a method of motor data identication during quick commissioning, e.g.
measurement of the motor data while the motor is stationary.
When quick commissioning is complete, the converter issues alarm A07991.
• The motor has cooled down to the ambient temperature.
An excessively high motor temperature falsies the motor data identication results.
• The PC and converter are connected to each other online.
WARNING
Unexpected machine motion while the motor data identication is in progress
For the stationary measurement, the motor can make several rotations. The rotating
measurement accelerates the motor up to the rated speed. Secure dangerous machine parts
before starting motor data identication:
• Before switching on, ensure that nobody is working on the machine or located within its
working area.
• Secure the machine's work area against unintended access.
• Lower suspended loads to the oor.

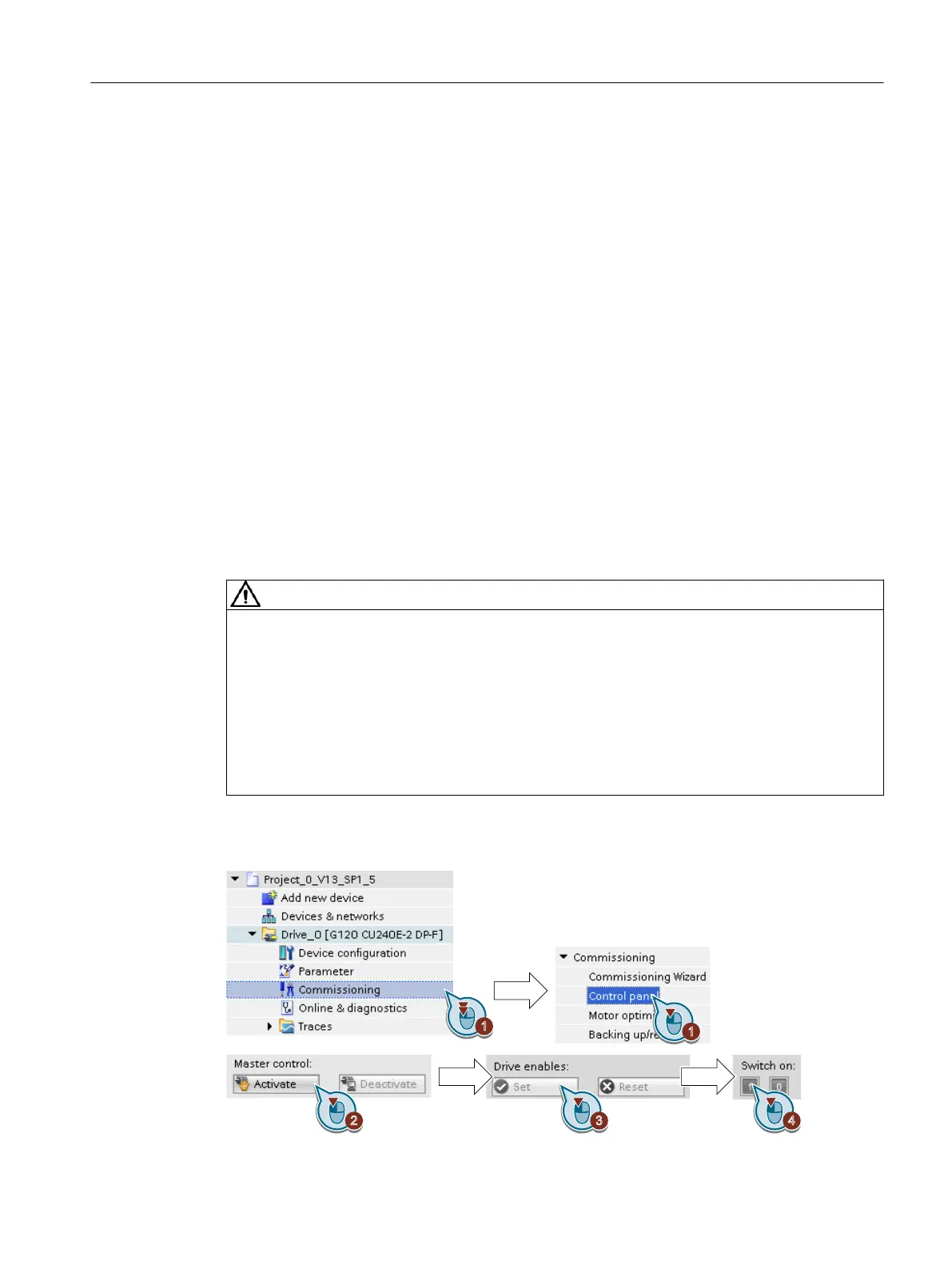

Procedure
Commissioning
5.5Quick commissioning with a PC.
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 151
