8.16.4.9 Complete commissioning
Overview
You must exit commissioning the safety functions and save the settings.
Requirement
You are online with Startdrive.
Function description

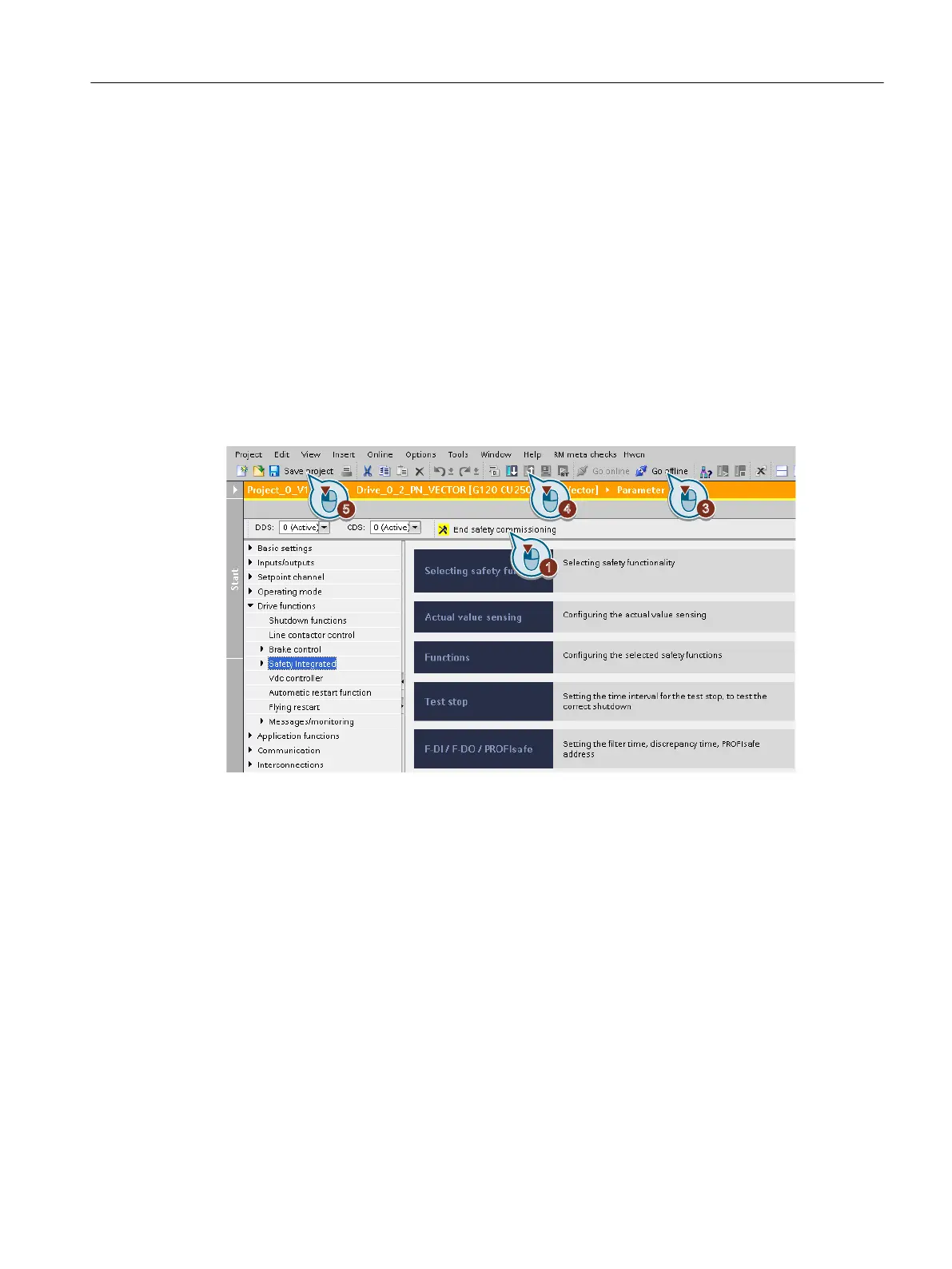

Procedure
1. Press the "End safety commissioning" button.
2. Conrm the prompt for saving your settings (copy RAM to ROM).
3. Disconnect the online connection.
4. Select the "Load from device (software)" button.
5. Save the project.
6. Switch o the converter power supply.
7. Wait until all LEDs on the converter go dark (no voltage condition).
8. Switch on the converter power supply again.
Your settings are now active.
❒
Advanced commissioning
8.16Safe Torque O (STO) safety function
SINAMICS G120C Converters
Operating Instructions, 02/2023, FW V4.7 SP14, A5E34263257B AK 267
