13.8. DIL Switch Settings for DR-298-FDW

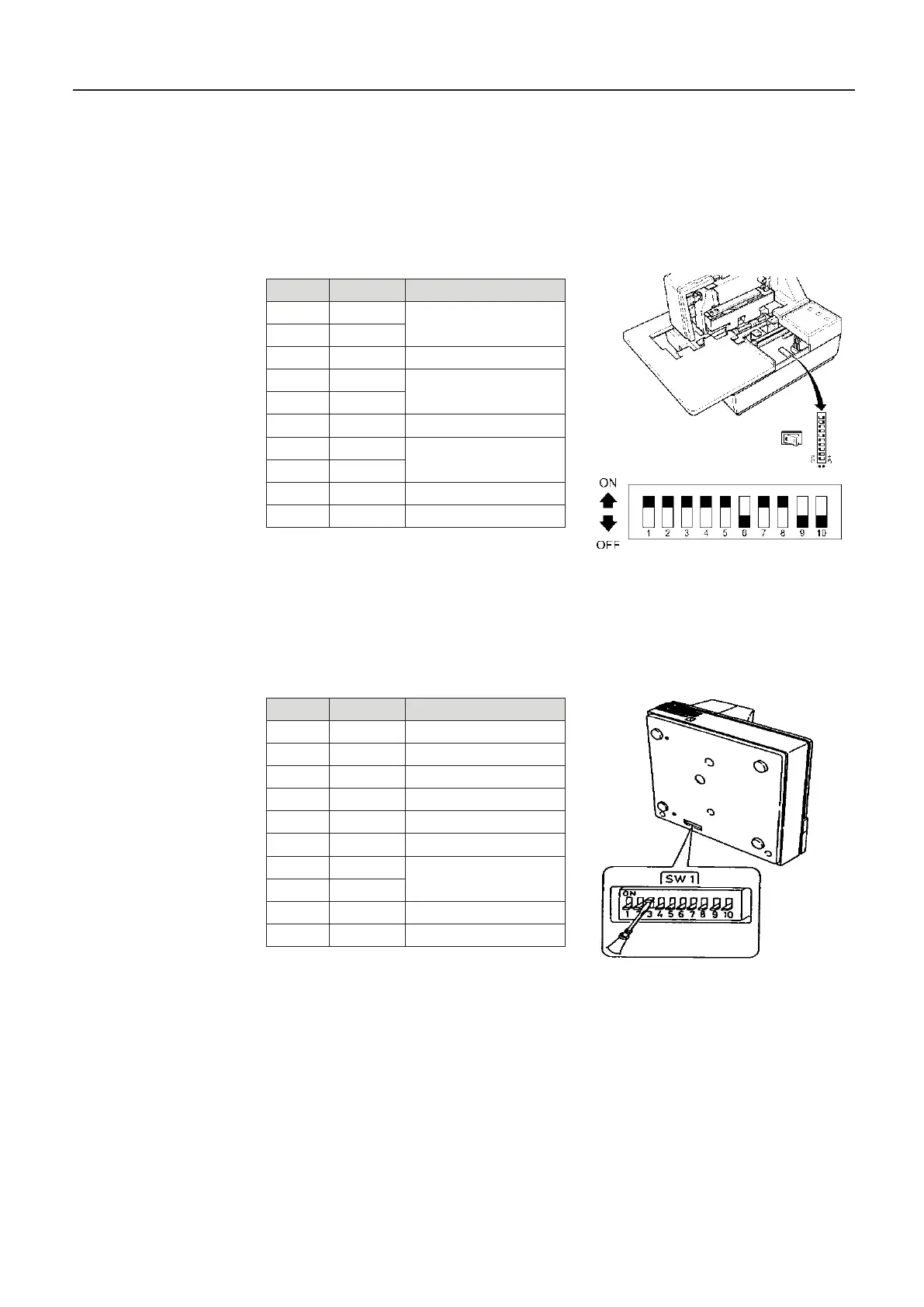

The switches that determine the operating mode of the DR-298 are located in the interior of the
unit (see manual).
The following factory settings are to be checked on the printer in the event of a
fault:
13.9. DIL switch settings DR-295
The following factory settings are to be checked on the printer in the event of a
fault:
Switch Position Function
SW-1 ON 9600 Baud
SW-2 ON
SW-3 ON 8 Bit
SW-4 ON No Parity
SW-5 ON
SW-6 OFF Handshake XON/XOFF
SW-7 ON Printer mode Star
SW-8 ON
SW-9 OFF* Pin 6 Reset inactive
SW-10 OFF* Pin 25 Reset inactive
* Any setting is valid
Switch Position Function
1 OFF Transfer error print "?"
2 OFF
3 ON Handshake XON/XOFF
4 OFF 8 bits
5 ON Parity used
6 ON Even parity
7 OFF 9600 Baud
8 OFF
9 OFF No Pin 6: Reset signal
10 OFF No Pin 25: Reset signal
