TechnipFMC Sening MultiLevel User Manual


MultiLevel Instruction Manual MENU structure
Explanation of the submenus
1 Setup: Printout of the parameters
2 Tables: Printout of the gauging tables
3 Logbook: Printout of the event logbook
(for example: Event Report, Loading and Delivery Note, Receipt copies etc.
4 Report: Printout of the tour reports

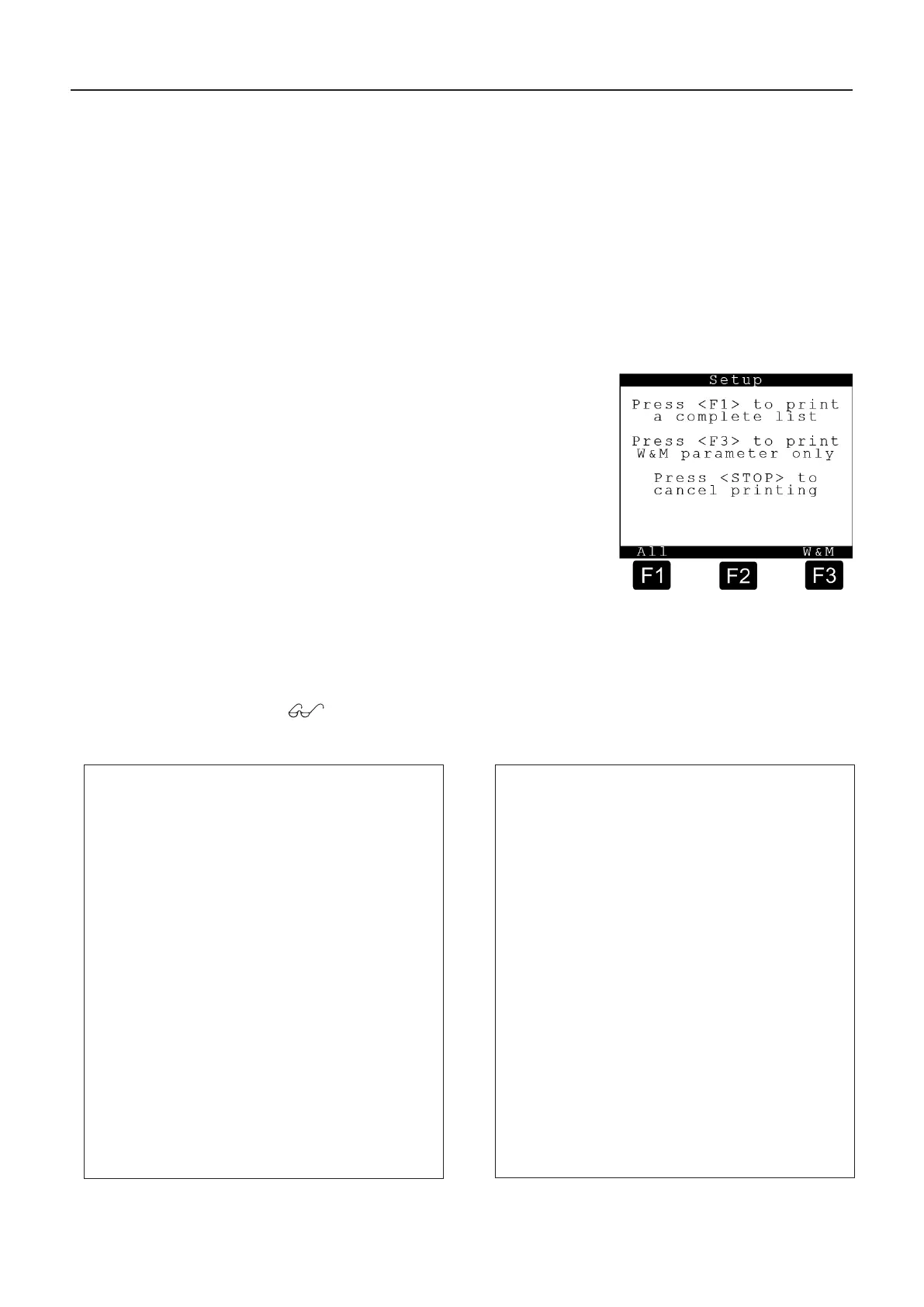

9.3.1. PRINT <1> – Setup
The Print menu looks like this:

Press the <1> button to enter the
MultiLevel print setup menu.

By pressing the <function keys>
(here for example <F1> and <F3>.)
you enter the corresponding submenu.

By pressing the <STOP> button the
print job is cancelled. You return to the
print main menu display.
9.3.1.1. Setup <F1> – Complete Parameter List
The calibration parameters protected by W&M are marked with a "+" sign.
Parameter (sample printout!)
16.05.2011 12:57:29
Device : MultiLevel
------------------------------------------
Version : 1.23[1.27]DE
Sealcounter : 000002
Serial no. : ????????
Comp. no. : - ? -
------------------------------------------
Seal broken!
------------------------------------------
Parameter CRC : 77A5
------------------------------------------
13 User language English
14 Customer lang. English
Local CAN-Bus
------------------------------------------
3111 Terminals 1
+ 3112 Level-IF 1
+ 3114 Wetleg-IF 1
3115 IO-IF 1
Global CAN-Bus
------------------------------------------
3121 Global node no. 1
3122 EMIS node 21
3123 NOMIX node 0
3124 Printer admin 1
Compartments
------------------------------------------
+ 3131 No of Comp. 3
+ 3132111 Level sensor no. 1
+ 3132112 Temp. sensor no. 1
+ 3132113 Wetleg sensor no. 1
+ 3132114 Level serial no. 3000
+ 3132121 Zero level sensor 0
+ 3132122 Oset Ice Prot. 25000
+ 3132123 Oset slope table 0
+ 3132124 Oset oat 0
+ 3132125 X Oset Level 0
+ 3132126 Y Oset Level 0
+ 3132127 Oset Temp. 0.0
+ 3132131 Comp. volume 5000
+ 3132132 Pipe volume 0
+ 3132133 Residual volume 0
+ 3132134 Float MIN 40000
+ 3132135 Float MAX 1000000
+ 3132136 Correction 1.00000000
3132137 PreStop-Level 0
3132138 SlopeStop-Level 0
3132139 Overll Volume 0
+ 3132141 Min. Pitch Slope -3.00
+ 3132142 Max. Pitch Slope 3.00
+ 3132143 Min. Roll Slope -3.00
continued...
