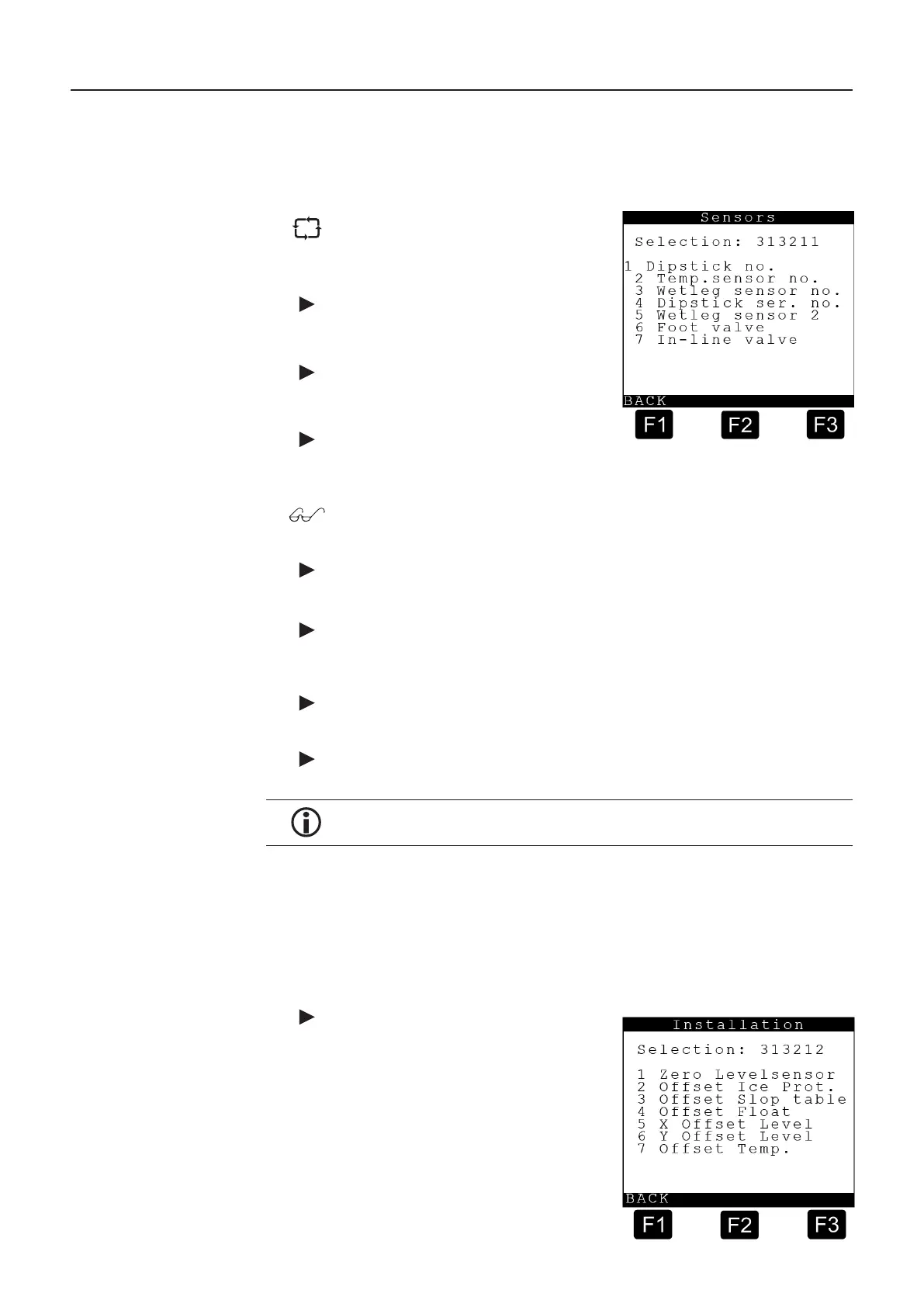

9.7.1.3.1.1.1. Compartment 1 Sensors – 313211
The settings for the various sensors are made here:
The following parameters already contain
the number of the related compartment
as a preliminary setting. Alternatively, the
values can be altered if so desired
3132111 – Dipstick no.
compartment, i.e. '1' is entered here.
3132112 – Temp. Sensor no.
The temperature sensor number of the
3132113 – Wetleg Sensor no.
compartment, i.e. '1' is entered here.
The following input takes place automatically when the system is switched on,
3132114 – Dipstick Ser. no.
here.
3132115 – Wetleg Sensor 2
Correlation of wet-leg detector number 2.
Selecting from '0' to '32' is possible.
3132116 – Foot Valve
Correlation of the foot valve number. Selecting from '0' to '32' is possible.
3132116 – Inline Valve
Correlation of the in-line valve number. Selection is possible from '0' to '32'.
This correlation changes every time the number of compartments is reset to the
factory settings!
9.7.1.3.1.1.2. Compartment 1 Installation – 313212
Various installation parameters are set here. This is described in detail in DOK-480 ‘MultiLevel
calibration and official verification’. The following four parameters are necessary in order to
precisely determine the fill level. Details of the height parameters in chapter 5.8 "Height
definition of the sensor head ".
3132121 – Level sensor zero point
Sensor zero point the zero point of the
level sensor is set here. The zero point
resting on the ice protection. This value
level sensor interface and must
subsequently be entered here. In order
to simplify entry, a menu item has been
provided in which this takes place
automatically. See chapter 9.8.2
"Calibration - 42".
MultiLevel Instruction Manual MENU structure
