9.7.1.4.4. Help Screens – 3147

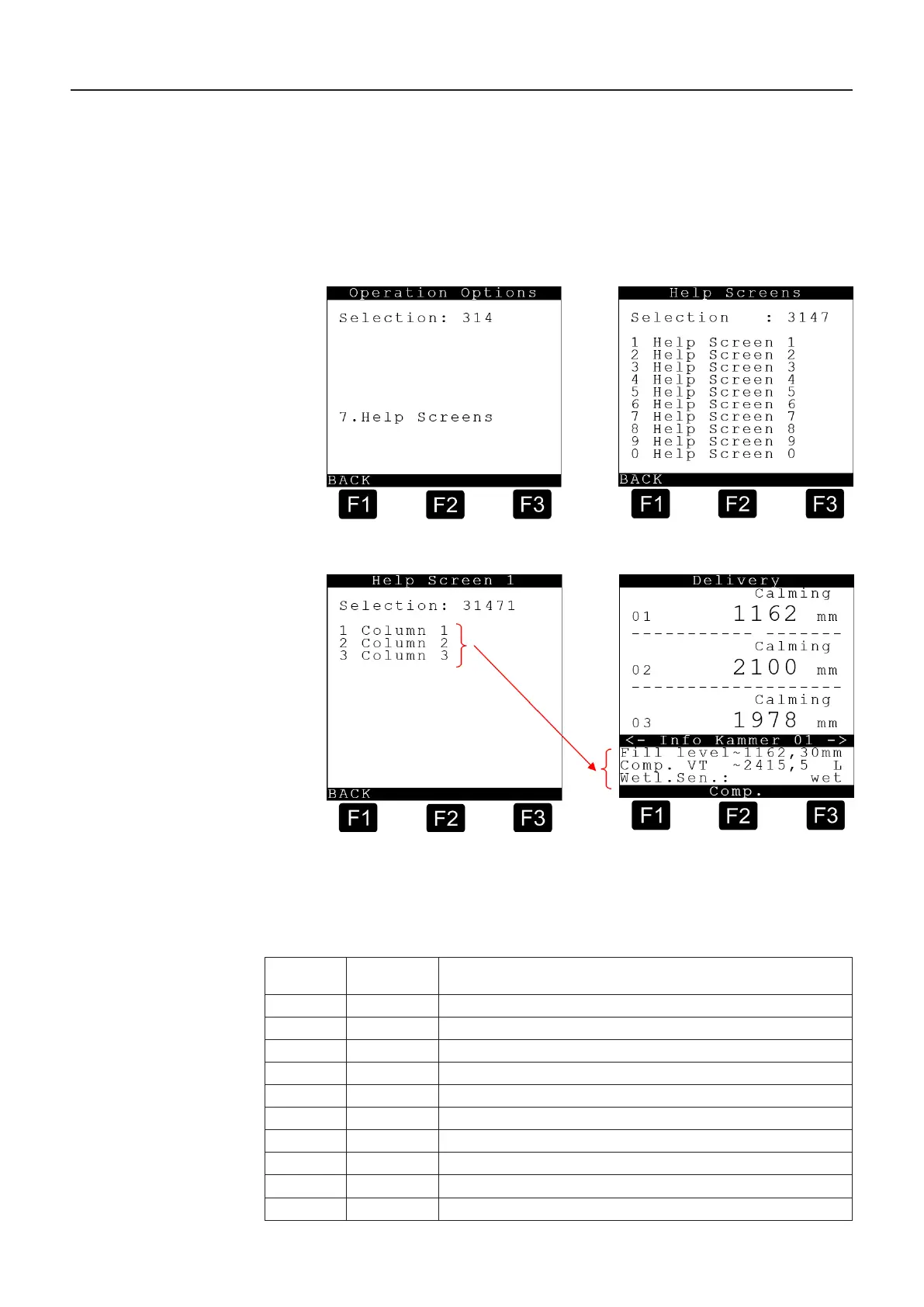

The information which is to be displayed in the ‘Compartment info’ in the lower third of the
display during the delivery is set here in accordance with the numeric key shown below.
The help display settings are accessed with <7>. Three details can be shown
on each display page. (Lines 1 to 3).
These have proven themselves in practice and should therefore not be
changed. (Factory setting)
Param. Factory
Setting
Meaning
3.1.4.7.1.1 11 Page 1 / line 1: Fill height in mm
3.1.4.7.1.2 37 Page 1 / line 2: Compartment VT (volume in litres)
3.1.4.7.1.3 38 Page 1 / line 3: Wet leg sensor status
3.1.4.7.2.1 1 Page 2 / line 1: Current roll in °
3.1.4.7.2.2 2 Page 2 / line 2: Min. permissible roll in °
3.1.4.7.2.3 3 Page 2 / line 3: Max. permissible roll in °
3.1.4.7.3.1 6 Page 3 / line 1: Current pitch in °
3.1.4.7.3.2 7 Page 3 / line 2: Min. permissible pitch in °
3.1.4.7.3.3 8 Page 3 / line 3: Max. permissible pitch in °
3.1.4.7.4.1 16 Page 4 / line 1: Current temperature in °C
To Next Page
