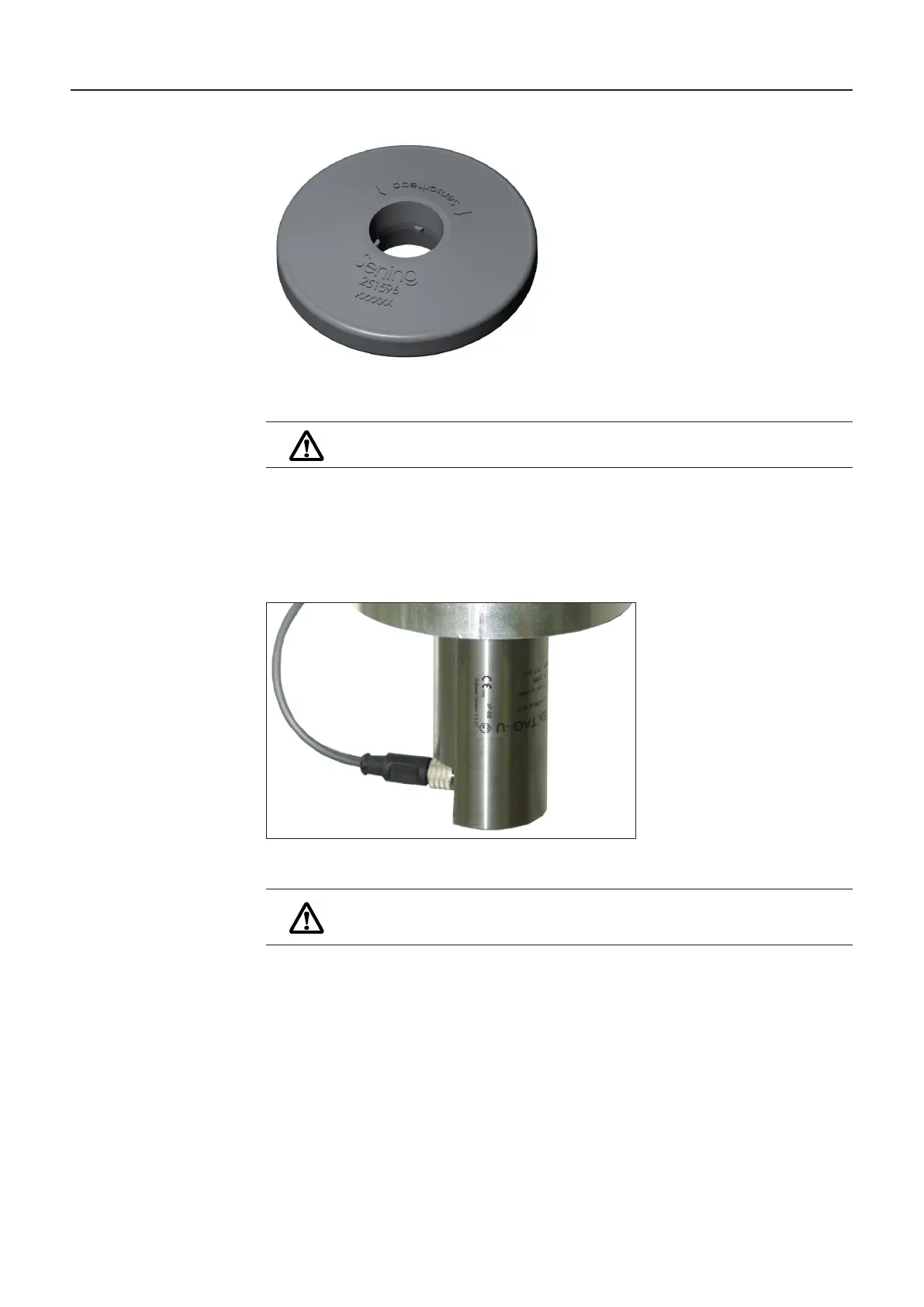

Figure 29: Float
ATTENTION:
6.5.3. Cable Plug Connector
The level sensor is equipped with an M12 plug-in connector.
Figure 30: Level sensor plug-in connector
ATTENTION:
We use special cable sockets made by Hirschmann, which have proven to be
leak proof. Other cables may not be used.
6.5.4. Level sensor – MLDSBO-XXXX
Parts no.: MLDSBO-xxxx
(xxxx = sensor length in mm)
Drawing no.: 51.351851
Wiring diagram no.: 51.351918
• The high-precision level sensor supplies information about the fill level of containers.
• As a continuous level measuring device it provides for quality assurance and process
reliability.
• The level sensor is suitable for all applications where a very precise level measurement
is necessary.
MultiLevel Instruction Manual Installation of the mechanical level sensor components
