7.4. Temperature sensor – MLDTS-2
Parts no.: MLDTS-2
Drawing: 51.351978
Wiring diagram: 61.351918

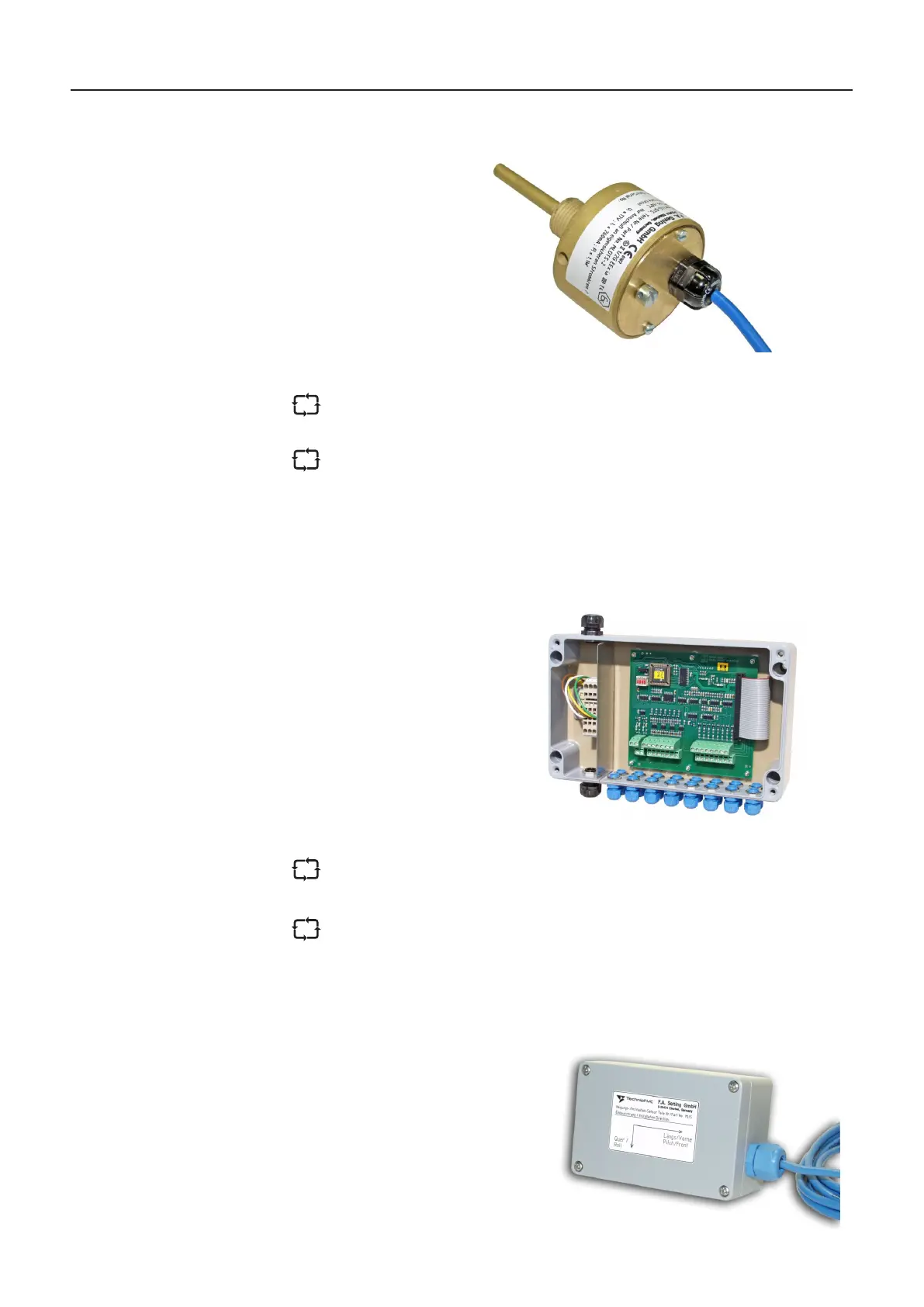

Figure 37: Temperature sensor – MLDTS-2
The temperature sensor MLDTS-2 serves for the temperature measurement in
the piping system. It is connected to the level sensor interface - MLIF.
All components are installed in a housing and sealed for protection against the
• Analogue temperature sensor type PT 1000, 1/3 DIN class B
• Analogue / digital converter circuit
• Microprocessor circuit for the generation of a digital 4-20 mA signal
7.5. Level sensor interface – MLIF
Parts no.: MLIF
Drawing: 51.351998
Wiring diagram: 61.351918
Figure 38: Level sensor interface – MLIF
The level sensor interface - MLIF is a component of the MultiLevel level sensor
system and evaluates the level sensor sensors, temperature sensors and the
inclination sensor.
The entire system is fundamentally structured in accordance with the overall
level sensor interface. The level sensor interface is connected to the main unit
and other interface modules via a bus system, the internal CAN bus.
7.6. Inclination sensor – MLIS
Parts no.: MLIS
Drawing: 31.351914
Wiring diagram: 51.351918
Figure 39: Inclination sensor – MLIS
MultiLevel Instruction Manual Modules
