MultiLevel Instruction Manual Installation of the mechanical level sensor components
6.5. Mechanics
6.5.1. Installation specifications for the sensor head
ATTENTION:
of the guide!

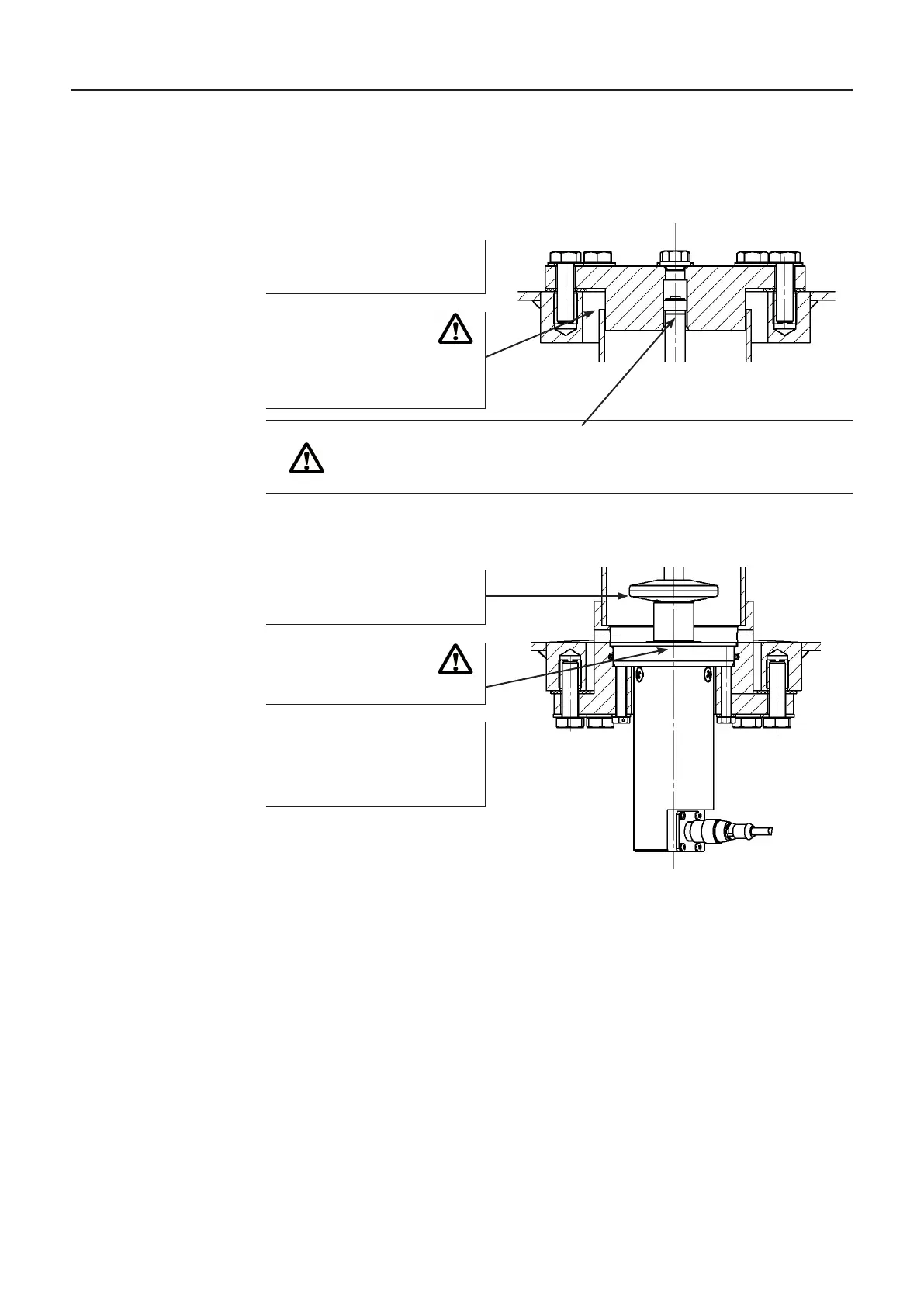

Figure 27: Installation of sensor head, part 1
Figure 28: Installation of sensor head, part 2
6.5.2. Float
A float made of POM (polyoxymethylene) with added graphite is used for measurements of
mineral oils.
• The float is resistant to all low-viscosity mineral oils and alcohols/bio-diesel RME.
• Liquid can flow off well from the top side.
• In the level sensor tube guide area there are small spacer studs that prevent adhesion to
the level sensor tube.
Assembly aperture for inserting
the level sensor. (use screwdriver,
for example, as an aid.)
ATTENTION:
Recommended gap
Otherwise danger of the protective
tube jumping out of the guide.
Float alignment:
faces the sensor head.
IMPORTANT:
Shortening the ice
protection is not permitted.
contacts should be lightly
greased with acid-free
grease (e.g. terminal grease).
