98
,
,

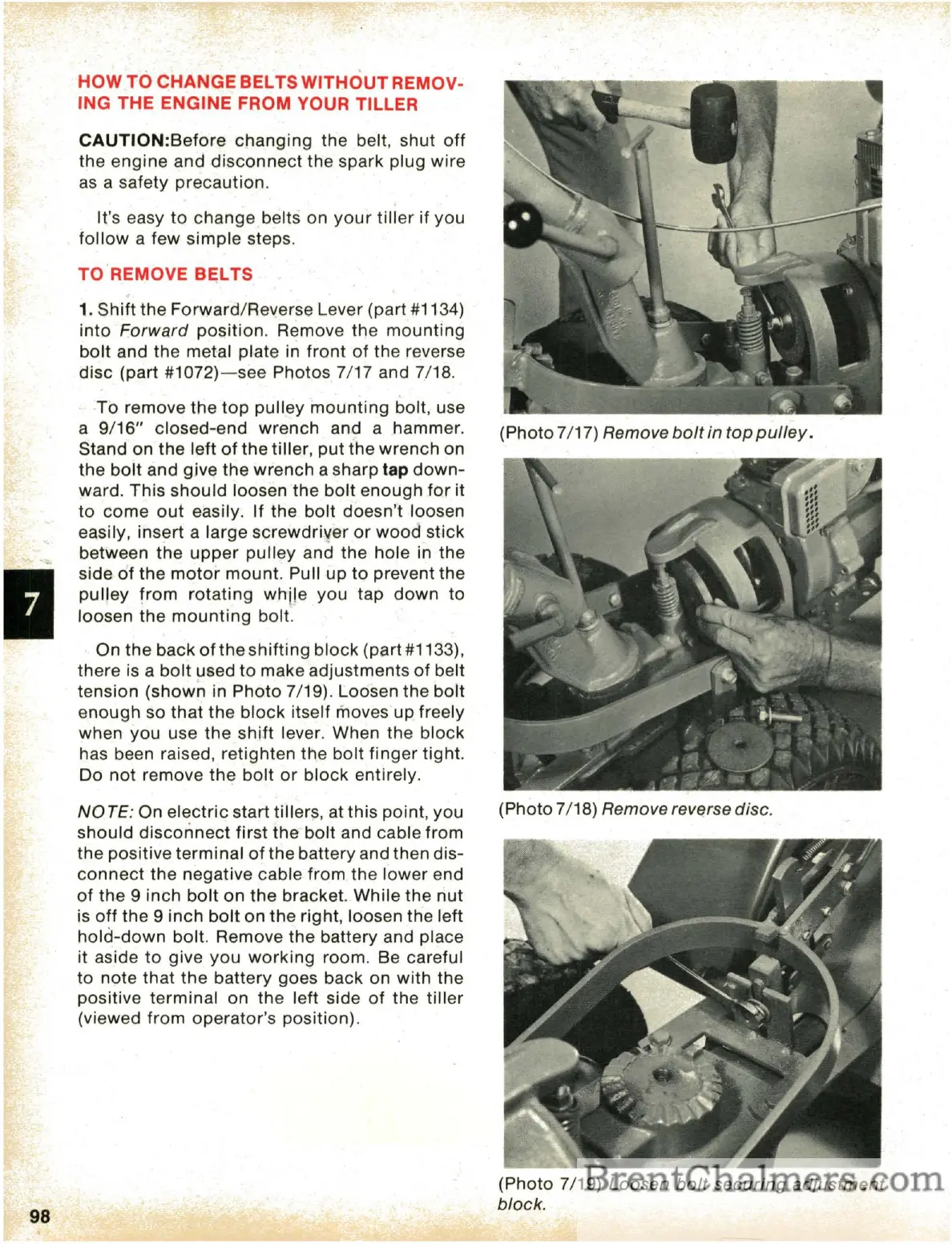

HOW
TO
CHANGE
BELTS
WITHOUT
REMOV-
ING
THE
ENGINE
FROM
YOUR
TILLER
CAUTION:Before
changing
the
belt,
shut
off
the
engine
and
disconnect
the
spark
plug
wire
as
a
safety
precaution.
It's
easy
to
change
belts
on
your
tiller
if
you
follow
a
few
simple
steps.
TO
REMOVE
BI;L
TS
1.
Shift
the
Forward/Reverse
Lever
(part
#1134)
into
Forward
position.
Remove
the
mounting
bolt
and
the
metal
plate
in
front
of
the
reverse
disc
(part
#1072)-see
Photos
7/17
and
7/18.
To
remove
the
top
pulley
mounting
bolt,
use
a
9/16"
closed-end
wrench
and
a
hammer.
Stand
on
the
left
of
the
tiller,
put
the
wrench
on
the
bolt
and
give
the
wrench
a
sharp
tap
down-
ward.
This
should
loosen
the
bolt
enough
for
it
to
come
out
easily.
If
the
bolt
doesn't
loosen
easily,
insert
a
large
screwdriyer
or
wood
stick
between
the
upper
pulley
and
the
hole
in
the
side
of
the
motor
mount.
Pull
up
to
prevent
the
pulley
from
rotating
while
you
tap
down
to
loosen
the
mounting
bolt.
On
the
back
of
the
shifting
block
(part
#1133),
there
is
a
bolt
~sed
to
make
adjustments
of
belt
tension
(shown
in
7/19).
Loosen
the
bolt
enough
so
that
the
block
itself
moves
up
freely
when
you
use
the
shift
lever,
When
the
block
has
been
raised,
retighten
the
bolt
finger
tight.
Do
not
remove
the
bolt
or
block
entirely.
NOTE:
On
electric
start
tillers,
at
this
point,
you
should
disconnect
first
the
bolt
and
cable
from
the
positive
terminal
of
the
battery
and
then
dis-
connect
the
negative
cable
from
the
lower
end
of
the
9
inch
bolt
on
the
bracket.
While
the
nut
is
off
the
9
inch
bolt
on
the
right,
loosen
the
left
hold-down
bolt.
Remove
the
battery
and
place
it
aside
to
give
you
working
room.
Be
careful
to
note
that
the
battery
goes
back
on
with
the
positive
terminal
on
the
left
side
of
the
tiller
(viewed
from
operator's
position).
(Photo
7/17)
Remove
bolt
in
top
pulley.
(Photo
7/18)
Remove
rev~rse
disc.
(Photo
7/1
9)
Loosen
bolt
securing
adjustment
block.
99
101
