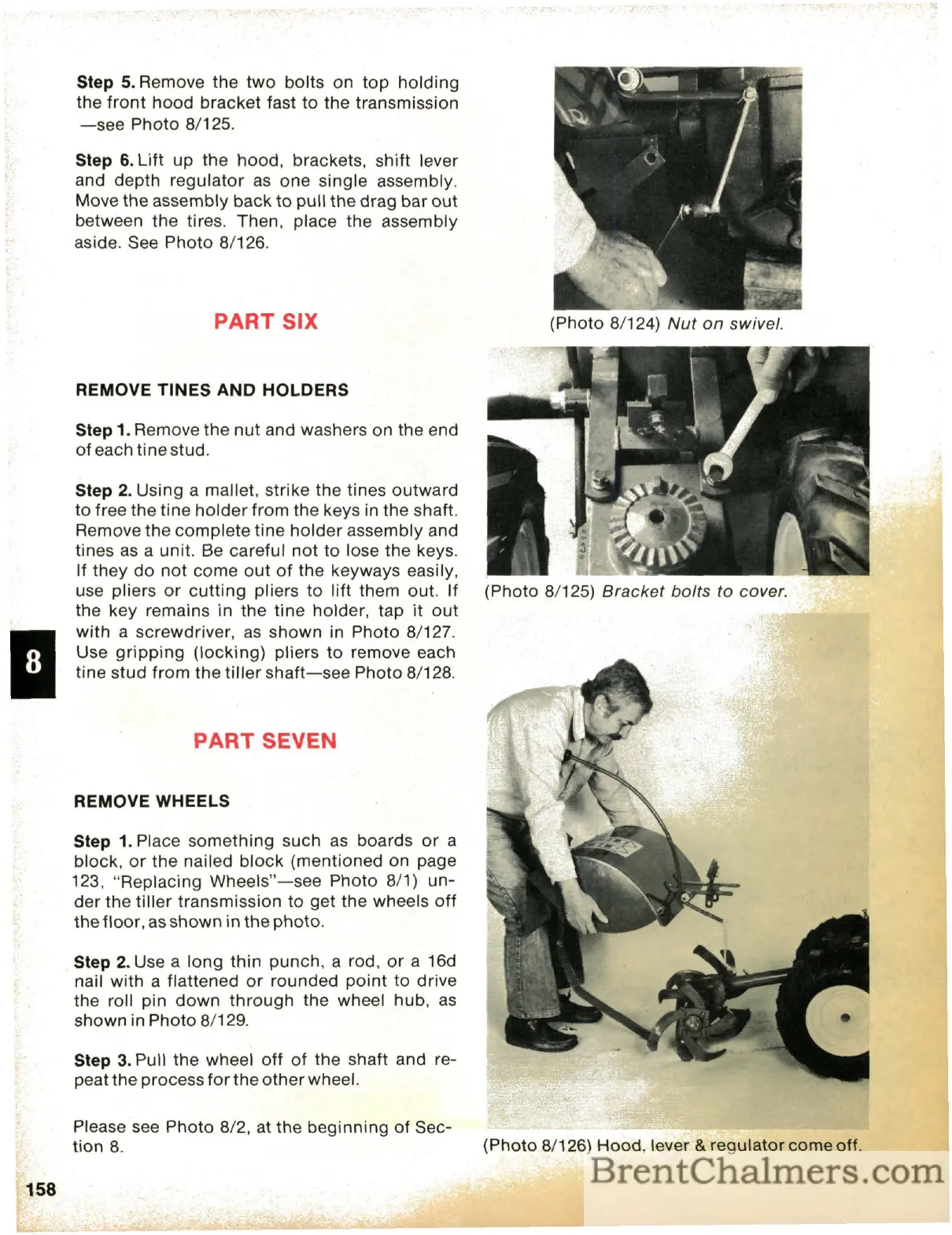

I
Step
5.
Remove
the
two
bolts
on
top
holding
the
front
hood
bracket
fast
to
the
transmission
-see
8/125.
Step
6.
Lift
up
the
hood,
brackets,
shift
lever
and
depth
regulator
as
one
single
assembly.
Move
the
assembly
back
to
pull
the
drag
bar
out
between
the
tires.
Then,
place
the
assembly
aside.
See
8/126.
PART
SIX
REMOVE
TINES
AND
HOLDERS
Step
1.
Remove
the
nut
and
washers
on
the
end
of
each
tine
stud.
Step
2.
Using
a
mallet,
strike
the
tines
outward
to
free
the
tine
holder
from
the
keys
in
the
shaft.
Remove
the
complete
tine
holder
assembly
and
tines
as
a
unit.
Be
careful
not
to
lose
the
keys.
If
they
do
not
come
out
of
the
keyways
easily,
use
pliers
or
cutting
pliers
to
lift
them
out.
If
the
key
remains
in
the
tine
holder,
tap
it
out
with
a
screwdriver,
as
shown
in
8/127.
Use
gripping
(locking)
pliers
to
remove
each
tine
stud
from
the
tiller
shaft-see
8/128.
PART
SEVEN
REMOVE
WHEELS
Step
1.
Place
something
such
as
boards
or
a
block,
or
the
nailed
block
(mentioned
on
page
123,
"Replacing
Wheels"-see
8/1)
un-
der
the
tiller
transmission
to
get
the
wheels
off
the
floor,
as
shown
in
the
photo.
Step
2.
Use
a
long
thin
punch,
a
rod,
or
a
16d
nail
with
a
flattened
or
rounded
point
to
drive
the
roll
pin
down
through
the
wheel
hub,
as
shown
in
8/129.
Step
3.
Pull
the
wheel
off
of
the
shaft
and
re-
peat
the
process
for
the
other
wheel.
(Photo
8/124)
Nut
on
swivel.
158
Please
see
8/2,
at
the
beginning
of
Sec-
tion
8.
(Photo
8/126)
Hood,
lever
&
regulator
come
off.
159
