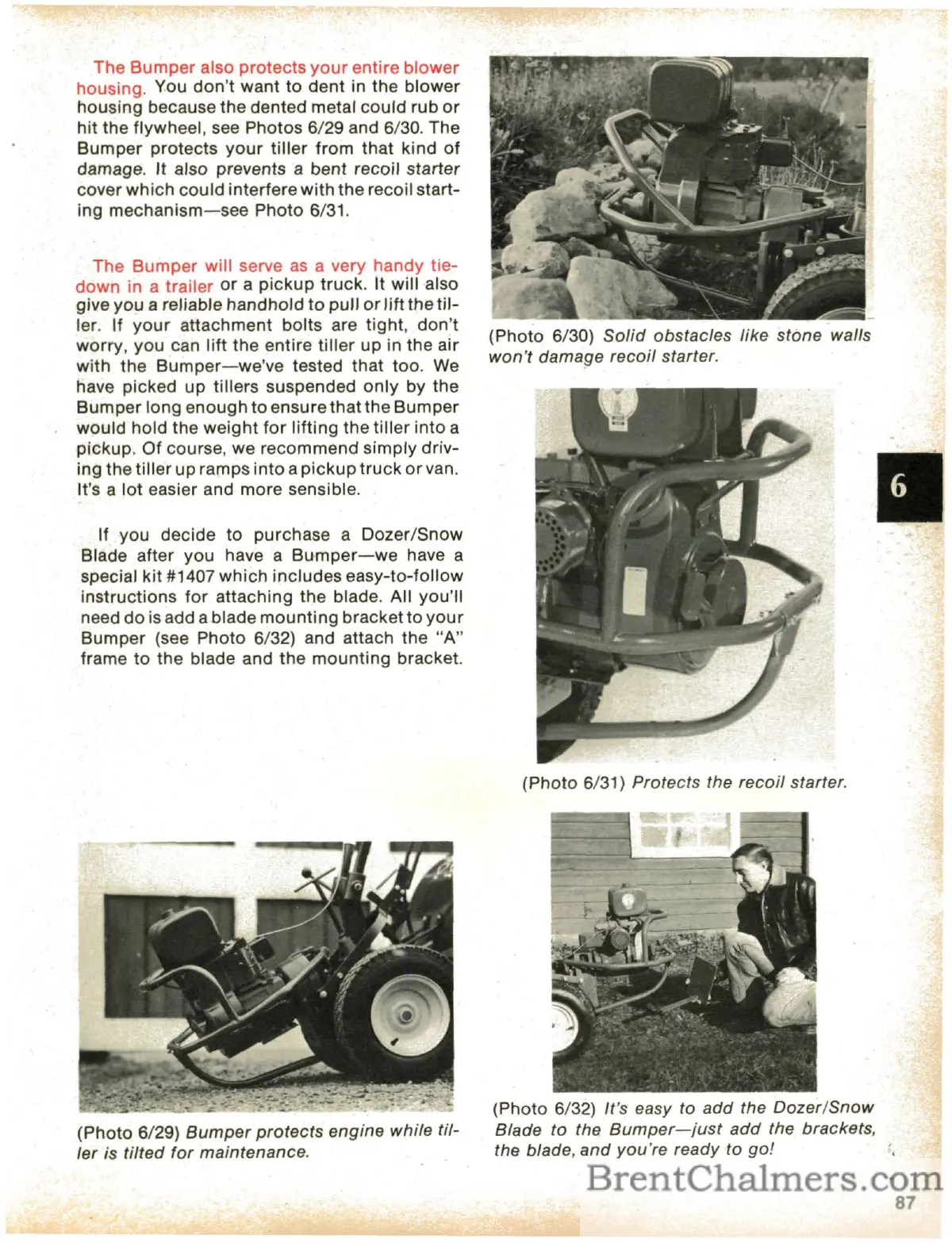

The Bumper also protects your entire blower
housing. You don't want to dent in the blower
housing because the dented metal
could rub or
hit the flywheel, see Photos 6/29 and 6/30. The
Bumper protects your tiller from that kind of
damage. It also prevents a bent recoil starter
cover
which could interfere with the recoil start-
ing
mechanism-see Photo 6/31.
The
Bumper will serve as a very handy tie-
down in a trailer or a pickup truck. It will also
give you a reliable
handhold to pull or lift the til-
ler. If your attachment bolts are tight, don't
worry, you can lift the entire tiller up in the air
with the Bumper-we've tested that too. We
have picked up tillers suspended only by the
Bumper long enough to ensurethat the Bumper
would hold the weight for lifting the tiller into a
pickup.
Of course, we recommend simply driv-
ing the tiller up ramps into a pickup truck orvan.
It's a lot easier and more sensible.
If you decide to purchase a Dozer/Snow
Blade after you have a
Bumper-we have a
special
kit #1407 which includes easy-to-follow
instructions for attaching the blade. All you'll
need do is add a blade mounting bracket to your
Bumper (see Photo 6/32) and attach the "A"
frame to the blade and the mounting bracket.
(Photo 6/30)
Solid obstacles like stone walls
won't damage recoil starter.
(Photo 6/31) Protects the recoil starter.
(Photo 6/29) Bumper protects engine while til-
ler is tilted for maintenance.
(Photo 6/32) It's easy to add the Dozer/Snow
Blade to the Bumper-just add the brackets,
the blade,
and you're ready to go! ",
87
