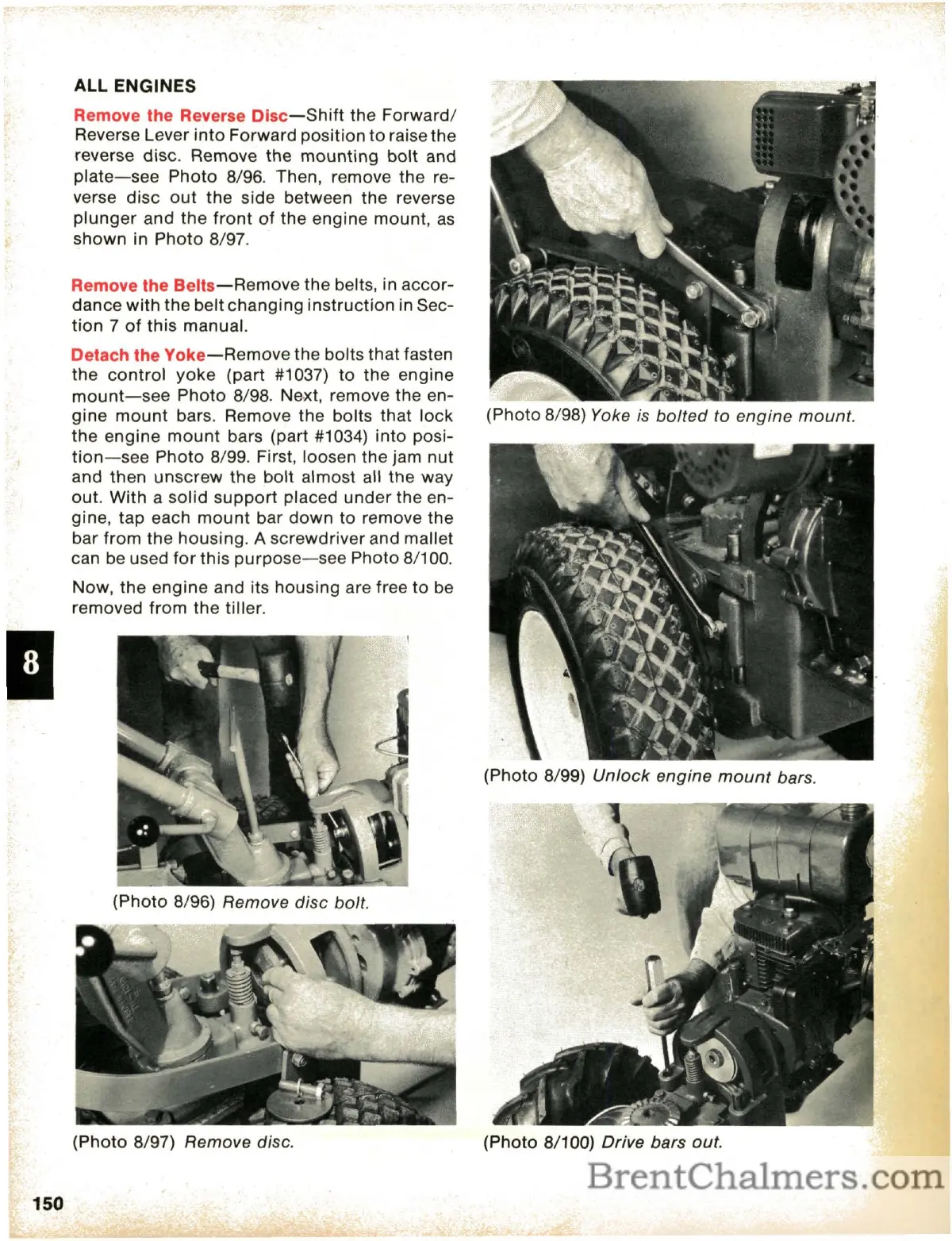

Troy-Bilt Horse - All Engines; Remove the Reverse Disc; Remove the Belts; Detach the Yoke

(Photo 8/98) Yoke is bolted to engine mount.
(Photo 8/100) Drive bars out.
(Photo 8/99)
Unlock engine mount bars.
ALL ENGINES
Remove the Reverse Disc-Shift the Forward/
Reverse Lever into Forward position to raise the
reverse disc. Remove
the mounting bolt and
plate-see Photo 8/96. Then, remove the re-
verse
disc out the side between the reverse
plunger and the front of the engine mount, as
shown in Photo 8/97.
(Photo 8/96) Remove disc bolt.
(Photo 8/97) Remove disc.
Remove the Belts-Remove the belts, in accor-
dance with the belt changing instruction in Sec-
tion 7 of this manual.
Detach the Yoke-Remove the bolts that fasten
the control yoke (part #1037) to the engine
mount-see Photo 8/98. Next, remove the en-
gine
mount bars. Remove the bolts that lock
the engine mount bars (part #1034) into posi-
tion-see Photo 8/99. First, loosen the jam nut
and
then unscrew the bolt almost all the way
out.
With a solid support placed under the en-
gine,
tap each mount bar down to remove the
bar from the housing. A
screwdriver and mallet
can be used
for this purpose-see Photo 8/100.
Now,
the engine and its housing are free to be
removed
from the tiller.
150
