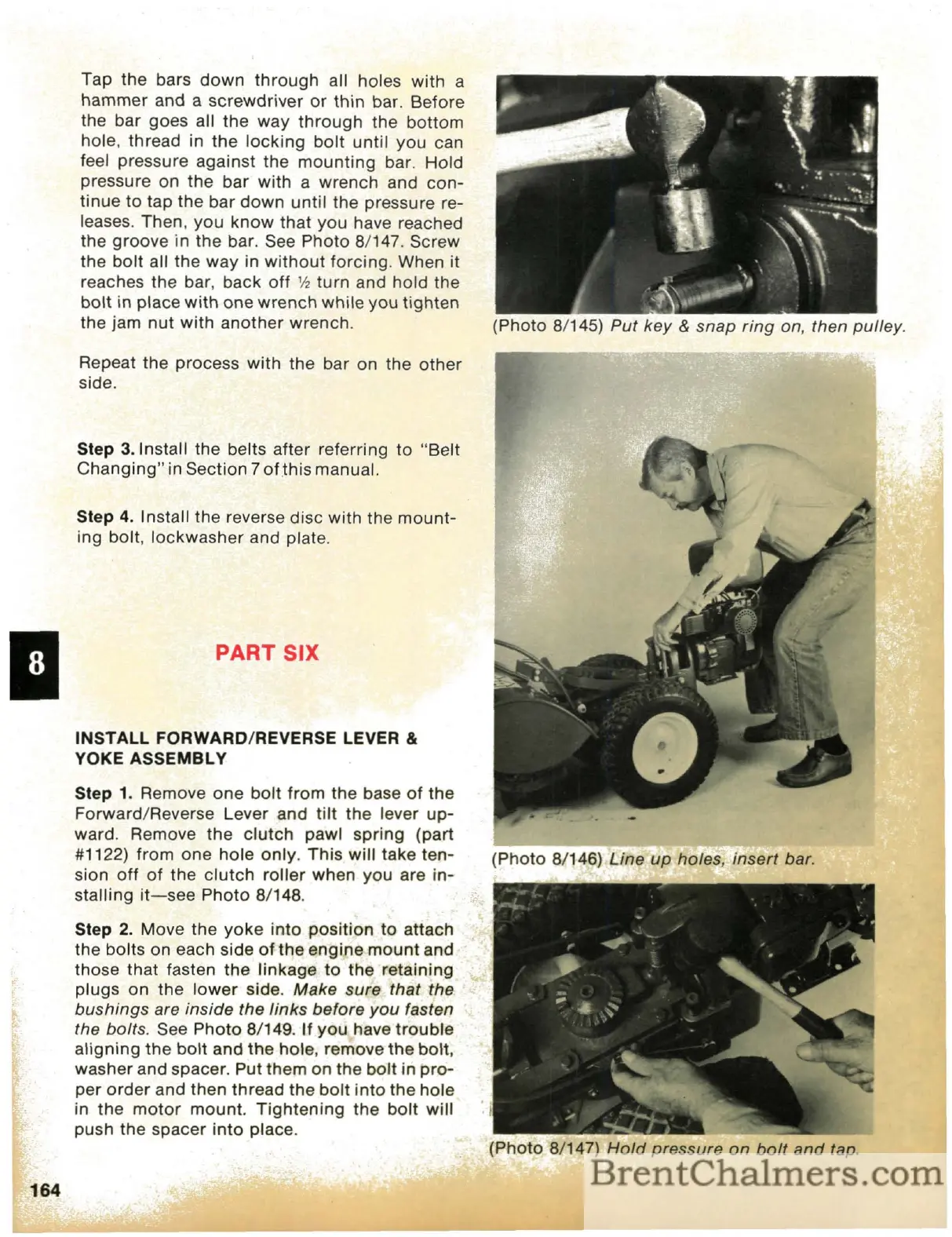

Tap
the
bars
down
through
all
holes
with
a
hammer
and
a
screwdriver
or
thin
bar.
Before
the
bar
goes
all
the
way
through
the
bottom
hole,
thread
in
the
locking
bolt
until
you
can
feel
pressure
against
the
mounting
bar.
Hold
pressure
on
the
bar
with
a
wrench
and
con-
tinue
to
tap
the
bar
down
until
the
pressure
re-
leases.
Then,
you
know
that
you
have
reached
the
groove
in
the
bar.
See
8/147.
Screw
the
bolt
all
the
way
in
without
forcing.
When
it
reaches
the
bar,
back
off
V2
turn
and
hold
the
bolt
in
place
with
one
wrench
while
you
tighten
the
jam
nut
with
another
wrench.
(Photo
8/145)
Put
key
&
snap
ring
on,
then
pulley.
I
Repeat
the
process
with
the
bar
on
the
other
side.
Step
3.
Install
the
belts
after
referring
to
"Belt
Changing"
in
Section
7
of
.
this
manual.
Step
4.
Install
the
reverse
disc
with
the
mount-
ing
bolt,
lockwasher
and
plate.
PART
SIX
INSTALL
FORWARD/REVERSE
LEVER
&
YOKE
ASSEMBLY
Step
1.
Remove
one
bolt
from
the
base
of
the
Forward/Reverse
Lever
and
tilt
the
lever
up-
ward.
Remove
the
clutch
pawl
spring
(part
#1122)
from
one
hole
only.
This
will
take
ten-
sion
off
of
the
clutch
roller
when
you
are
in-
stalling
it-see
8/148.
Step
2.
Move
the
yoke
ioto
position
to
attach
the
bolts
on
each
side
of
the
engine
mount
and
those
that
fasten
the
linkage
to
the
retaining
plugs
on
the
lower
side.
Make
sure
that
the
bushings
are
inside
the
links
before
you
fasten
the
bolts.
See
8/149.
If
you
have
trouble
aligning
the
bolt
and
the
hole,
remove
the
bolt.
washer
and
spacer.
Put
them
on
the
bolt
in
pro-
per
order
and
then
thread
the
bolt
into
the
hole
in
the
motor
mount.
Tightening
the
bolt
will
push
the
spacer
into
place.
(Photo
8/146)
Line
up
holes,
insert
bar.
(Photo
8/147)
Hold
pressure
on
bolt
and
tap.
165
167
