124

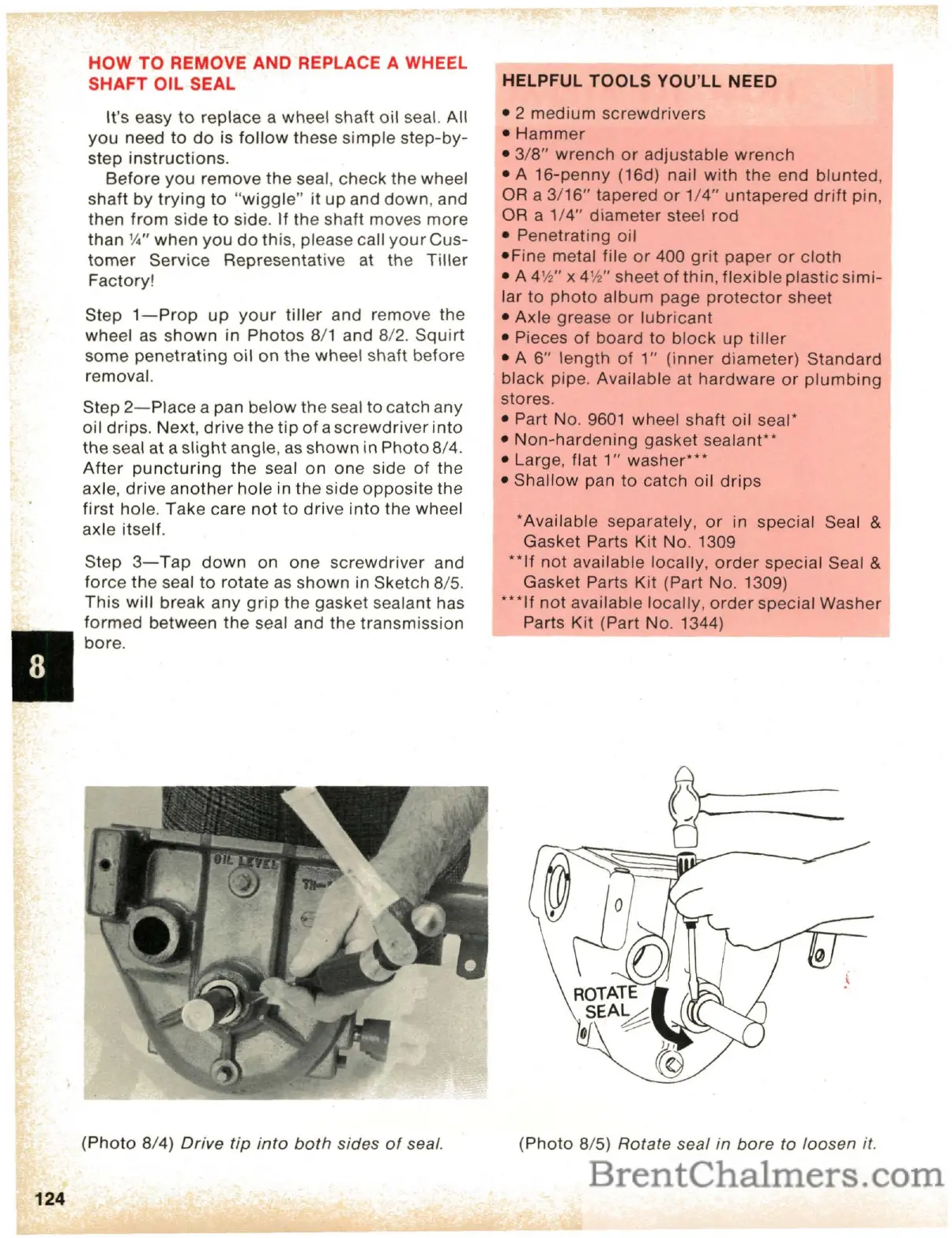

HOW
TO
REMOVE
AND
REPLACE
A
WHEEL
SHAFT
OIL
SEAL
It's
easy
to
replace
a
wheel
shaft
oil
seal.
All
you
need
to
do
is
follow
these
simple
step-by-
step
instructions.
Before
you
remove
the
seal,
check
the
wheel
shaft
by
trying
to
"wiggle"
it
up
and
down,
and
then
from
side
to
side.
If
the
shaft
moves
more
than
'1.1"
when
you
do
this,
please
call
your
Cus-
tomer
Service
Representative
at
the
Tiller
Factory!
Step
1-Prop
up
your
tiller
and
remove
the
wheel
as
shown
in
Photos
8/1
and
8/2.
Squirt
some
penetrating
oil
on
the
wheel
shaft
before
removal.
Step
2-Place
a
pan
below
the
seal
to
catch
any
oil
drips.
Next,
drive
the
tip
of
a
screwdriver
into
the
seal
at
a
slight
angle,
as
shown
in
8/4.
After
puncturing
the
seal
on
one
side
of
the
axle,
drive
another
hole
in
the
side
opposite
the
first
hole.
Take
care
not
to
drive
into
the
wheel
axle
itself.
Step
3-
Tap
down
on
one
screwdriver
and
force
the
seal
to
rotate
as
shown
in
Sketch
8/5.
This
will
break
any
grip
the
gasket
sealant
has
formed
between
the
seal
and
the
transmission
bore.
(Photo
8/4)
Drive
tip
into
both
sides
of
seal.
HELPFUL
TOOLS
YOU'LL
NEED
.2
medium
screwdrivers
•
Hammer
•
3/8"
wrench
or
adjustable
wrench
•
A
16-penny
(16d)
nail
with
the
end
blunted,
OR
a
3/16"
tapered
or
1/4"
untapered
drift
pin,
OR
a
1/4"
diameter
steel
rod
•
Penetrating
oil
·Fine
metal
file
or
400
grit
paper
or
cloth
•
A
4'12"
x
4'12"
sheet
of
thin,
flexible
plastic
simi-
lar
to
album
page
protector
sheet
•
Axle
grease
or
lubricant
•
Pieces
of
board
to
block
up
tiller
•
A
6"
length
of
1"
(inner
diameter)
Standard
black
pipe.
Available
at
hardware
or
plumbing
stores.
•
Part
No.
9601
wheel
shaft
oil
seal*
•
Non-hardening
gasket
sealant**
•
Large,
flat
1"
washer***
•
Shallow
pan
to
catch
oil
drips
*Available
separately,
or
in
special
Seal
&
Gasket
Parts
Kit
No.
1309
**If
not
available
locally,
order
special
Seal
&
Gasket
Parts
Kit
(Part
No.
1309)
***If
not
available
locally,
order
special
Washer
Parts
Kit
(Part
No.
1344)
(Photo
8/5)
Rotate
seal
in
bore
to
loosen
it.
125
