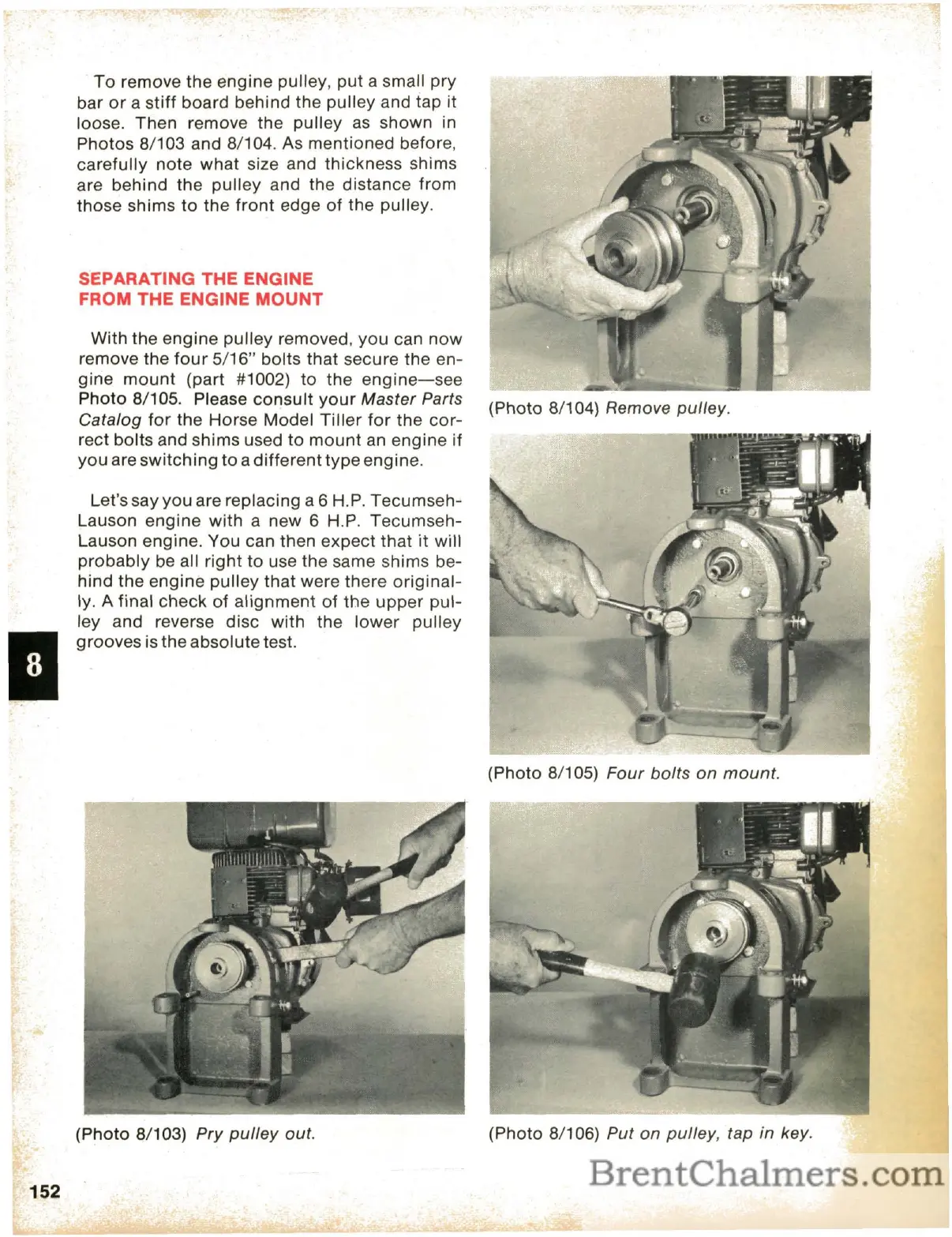

I
152
To
remove
the
engine
pulley,
put
a
small
pry
bar
or
a
stiff
board
behind
the
pulley
and
tap
it
loose.
Then
remove
the
pulley
as
shown
in
Photos
8/103
and
8/104.
As
mentioned
before,
carefully
note
what
size
and
thickness
shims
are
behind
the
pulley
and
the
distance
from
those
shims
to
the
front
edge
of
the
pulley.
SEPARATING
THE
ENGINE
FROM
THE
ENGINE
MOUNT
With
the
engine
pulley
removed,
you
can
now
remove
the
four
5/16"
bolts
that
secure
the
en-
gine
mount
(part
#1002)
to
the
engine-see
8/105.
Please
consult
your
Master
Parts
Catalog
for
the
Horse
Model
Tiller
for
the
cor-
rect
bolts
and
shims
used
to
mount
an
engine
if
you
are
switching
to
a
different
type
engine.
Let's
say
you
are
replacing
a
6
H.P.
Tecumseh-
Lauson
engine
with
a
new
6
H.P.
Tecumseh-
Lauson
engine.
You
can
then
expect
that
it
will
probably
be
all
right
to
use
the
same
shims
be-
hind
the
engine
pulley
that
were
there
original-
ly.
A
final
check
of
alignment
of
the
upper
pul-
ley
and
reverse
disc
with
the
lower
pulley
grooves
is
the
absolute
test.
(Photo
8/103)
Pry
pUlley
out.
(Photo
8/104)
Remove
pulley.
(Photo
8/105)
Four
bolts
on
mount.
(Photo
8/106)
Put
on
pulley,
tap
in
key.
153
