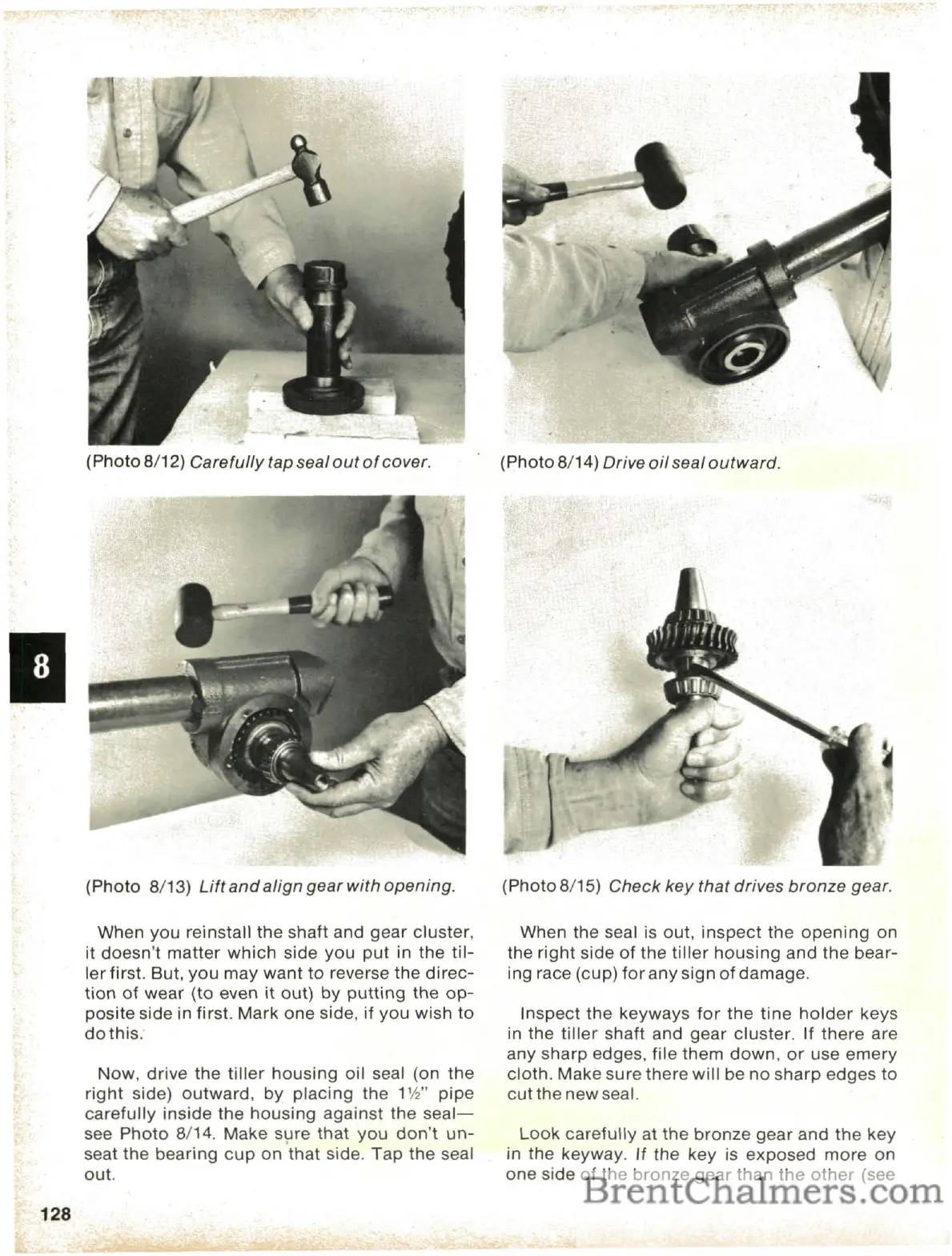

(Photo 8/12) Carefully tap seal out of cover.
(Photo 8/13) Lift and align gear with opening.
When you reinstall the shaft and gear cluster,
it doesn't matter which side you put in the til-
ler first. But, you may want to reverse the direc-
tion of wear (to even it out) by putting the op-
posite side in first. Mark one side. if you wish to
do this:
Now, drive the tiller housing oil seal (on the
right side) outward, by placing the 1 W' pipe
carefully inside the housing against the seal-
see Photo 8/14. Make s\Jre that you don't un-
seat the bearing cup on that side. Tap the seal
out.
(Photo 8/14)
Drive oil seal outward.
(Photo 8/15) Check key that drives bronze gear.
When the seal is out, inspect the opening on
the
right side of the tiller housing and the bear-
ing race (cup)
for any sign of damage.
Inspect
the keyways for the tine holder keys
in
the tiller shaft and gear cluster. If there are
any sharp edges, file
them down, or use emery
cloth. Make sure there will be no sharp edges to
cut the newseal.
Look carefully at the bronze gear and the key
in the keyway.
If the key is exposed more on
one side of the bronze gear than the other (see
