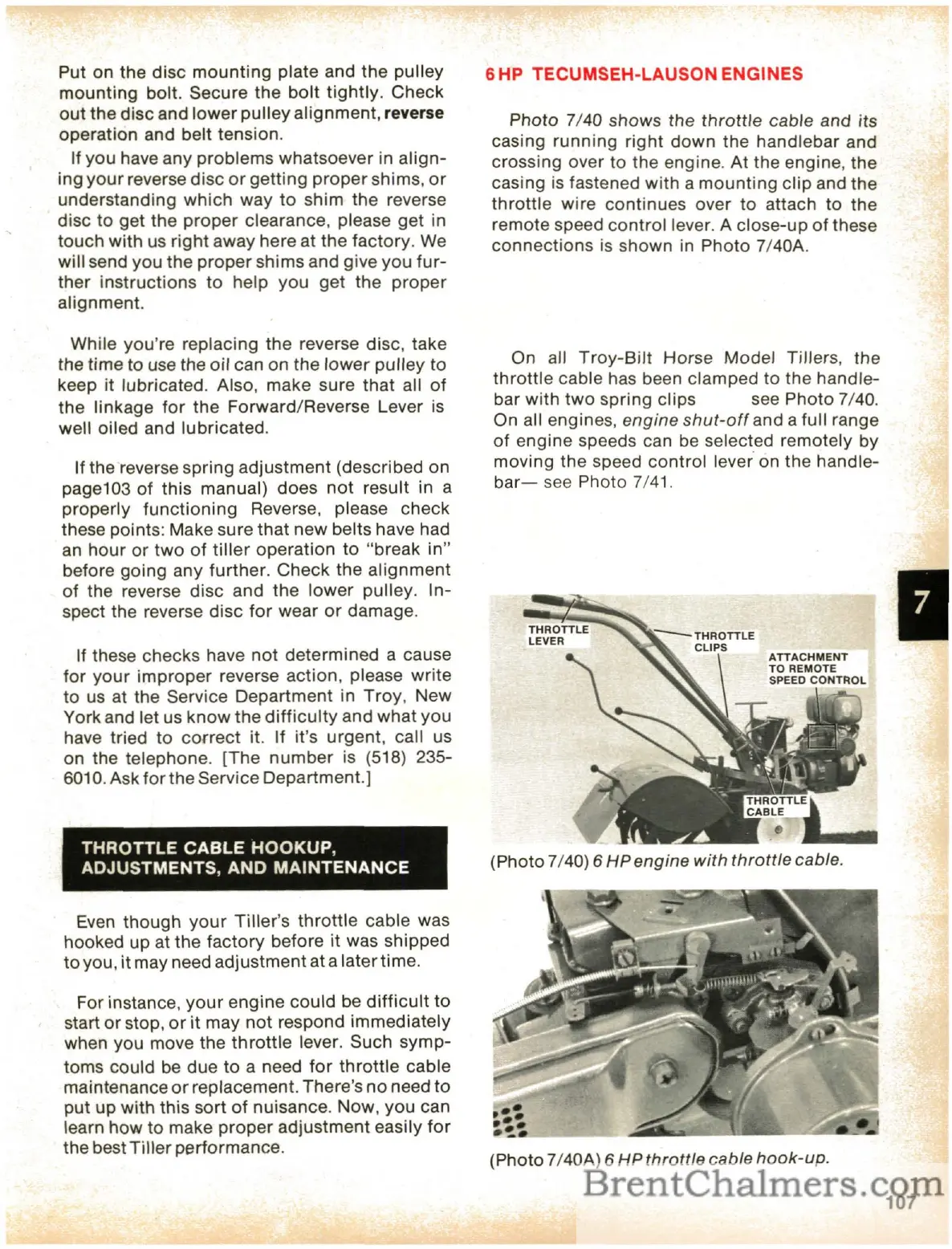

Put on the disc
mounting
plate and
the
pulley
mounting
bolt. Secure
the
bolt
tightly.
Check
out
the
disc and
lower
pulley alignment, reverse
operation and belt tension.
If
you
have any problems whatsoever in
align-
ing
your
reverse disc
or
getting
proper
shims,
or
understanding which way
to
shim the reverse
disc
to
get
the
proper
clearance, please get in
touch with us
right
away here at the factory. We
will send
you
the
proper
shims and give
you
fur-
ther
instructions to help
you
get the
proper
alignment.
While you're replacing
the
reverse disc, take
the time to use the
oil
can on the
lower
pulley
to
keep it lubricated. Also, make sure
that
all
of
the
linkage
for
the
Forward/Reverse Lever
is
well oiled and lubricated.
If the reverse spring adjustment (described on
page103
of
this manual) does
not
result in a
properly
functioning
Reverse, please
check
these points: Make sure
that
new belts have had
an
hour
or
two
of
tiller
operation to
"break
in"
before going any further.
Check
the
alignment
of
the reverse disc and
the
lower
pulley.
In-
spect the reverse disc
for
wear
or
damage.
If these checks have
not
determined a cause
for
your
improper
reverse action, please write
to
us at the Service Department in Troy, New
York and let us
know
the
difficulty
and what
you
have tried
to
correct
it. If it's urgent, call us
on the telephone. [The
number
is
(518) 235-
6010. Ask
for
the Service Department.]
THROTTLE CABLE
HOOKUP,
ADJUSTMENTS, AND
MAINTENANCE
Even
though
your
Tiller's
throttle
cable was
hooked up at the
factory
before it was shipped
to
you,
it
may need adjustmentat a later time.
For instance,
your
engine
could
be
difficult
to
start
or
stop,
or
it
may
not
respond immediately
when you move the
throttle
lever. Such
symp-
toms could be due
to
a need
for
throttle
cable
maintenance
or
replacement. There's
no
need to
put
up
with this sort
of
nuisance. Now,
you
can
learn how
to
make
proper
adjustment easily
for
the
bestTilier
performance.
6 HP TECUMSEH-LAUSON ENGINES
7/40 shows the
throttle
cable and its
casing running
right
down the handlebar and
crossing over
to
the engine. At the engine, the
casing is fastened with a
mounting
clip and the
throttle
wire continues over to attach to the
remote speed
control
lever. A close-up
of
these
connections
is shown in Photo 7/40A.
On all
Troy-Silt
Horse
Model
Tillers, the
throttle
cable has been clamped to the handle-
bar
with
two
spring clips see
7/40.
On all engines,
engine
shut-off
and a full range
of
engine speeds can
be
selected remotely by
moving the speed
control
lever on the handle-
bar-
see Photo 7/41.
(Photo 7/40) 6
HPengine
with
throttle
cable.
(Photo 7/40A) 6
HP
throttle
cable
hook-up.
I
107
