Bolts
To
Top
Of
Engine
Mount
Bars
Bolt
Mounts
Blade
To
A-Frame
""
Use
Index
Pin
/
To
Change
Blade
Position
Bolt
Mounts
Bracket
to
Bumper
~;.-
"-
Mounts
A-Frame
To
Mounting
Bracket
\
~
Bolt
Mounts
To
Bottom
Of
Tiller
Transmission
Bumper
Brace
Dozer
Mounting
Bracket

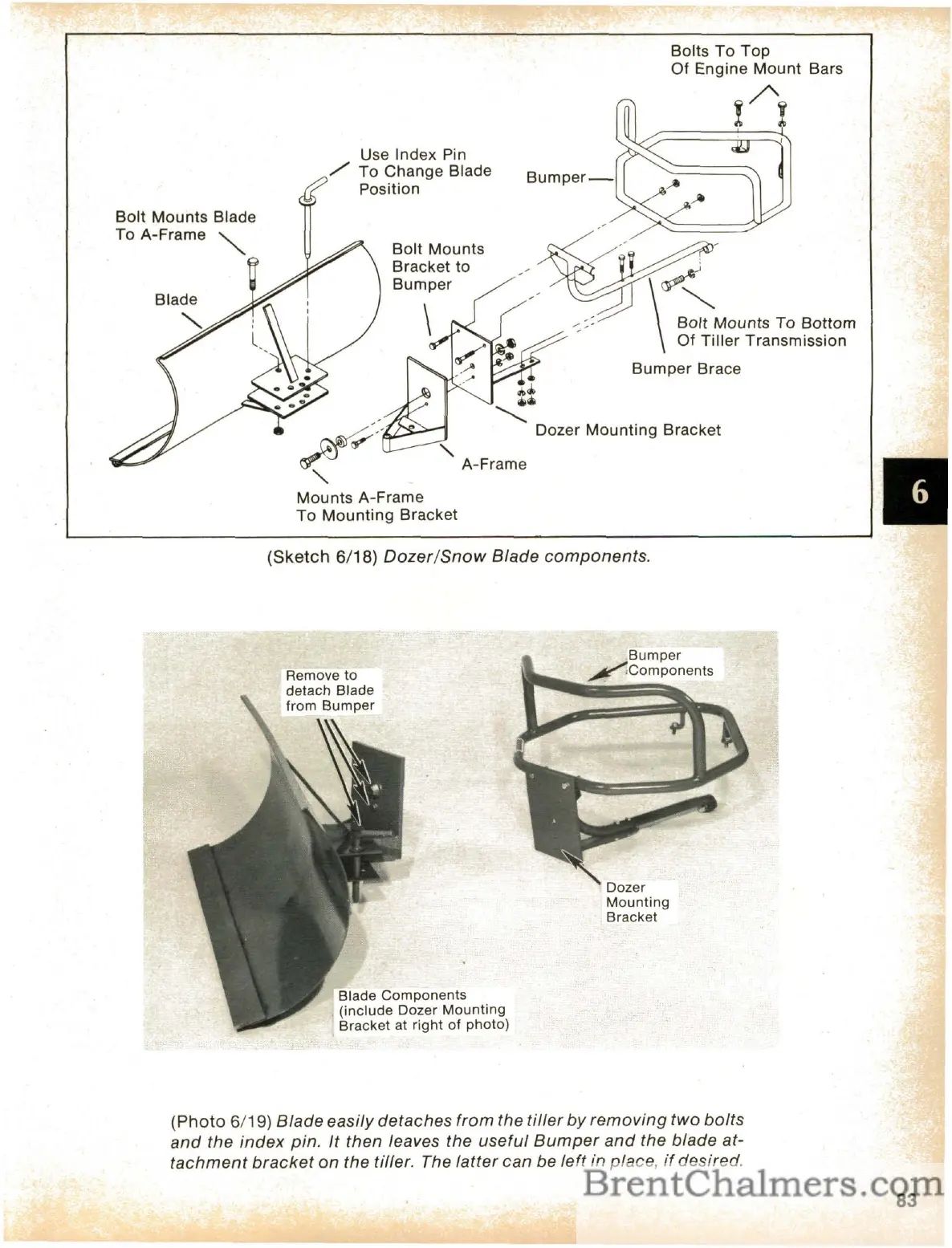

(Sketch
6/18)
Dozer/Snow
Blade
components.
Blade
Components
(include
Dozer
Mounting
Bracket
at
right
of
photo)
(Photo
6/19)
Blade
easily
detaches
from
the
tiller
by
removing
two
bolts
and
the
index
pin.
It
then
leaves
the
useful
Bumper
and
the
blade
at-
tachment
bracket
on
the
tiller.
The
latter
can
be
left
in
place,
if
desired.
83
84
86
