REGULAR MAINTENANCE
SUGGESTIONS
FOR THE TILLER

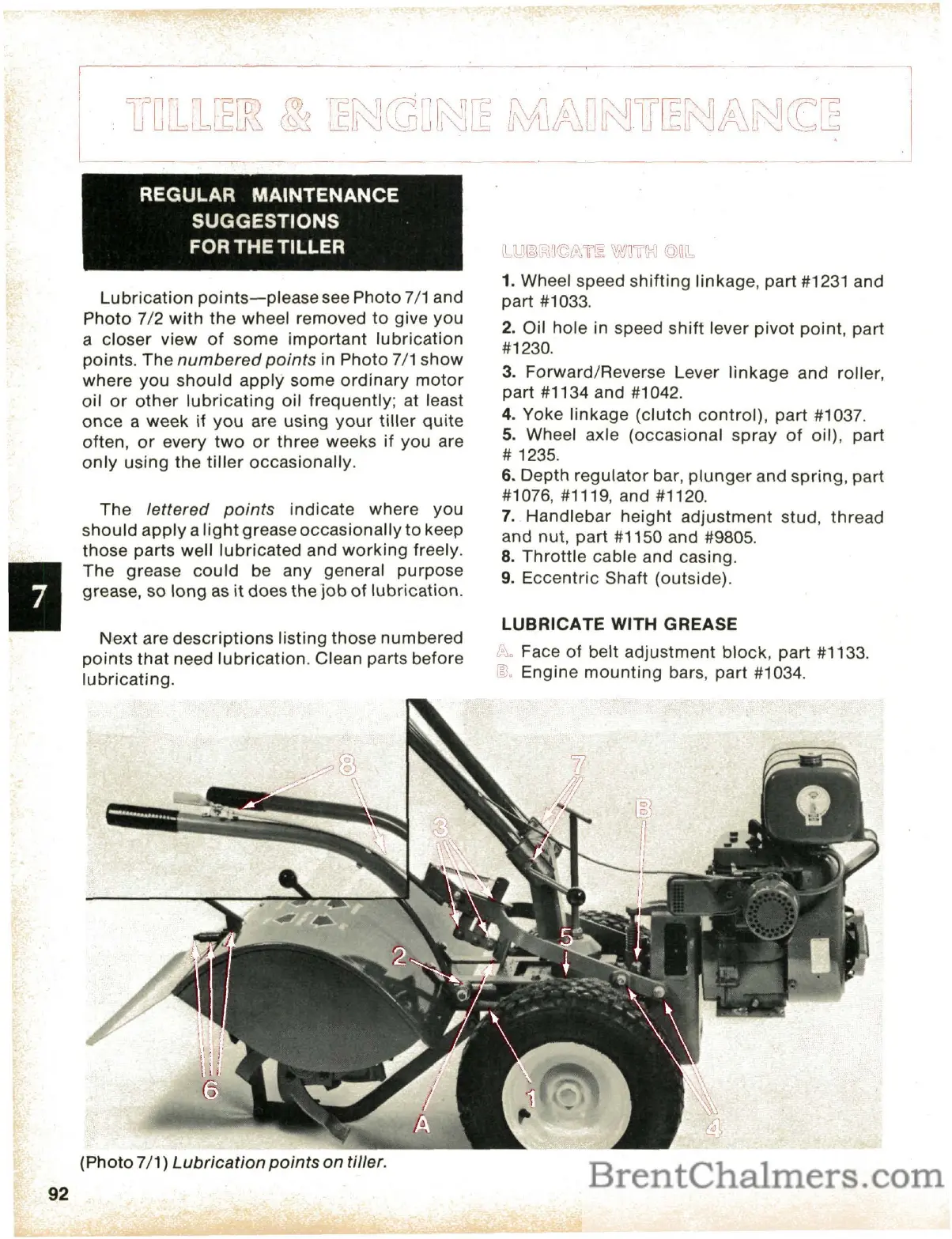

Lubrication points-please see Photo 7/1 and
Photo 7/2
with the wheel removed to give you
a closer view of some important lubrication
points. The numbered points in Photo 7/1 show
where you should apply some ordinary motor
oil or other lubricating oil frequently; at least
once a week if you are using your tiller quite
often, or every two or three weeks if you are
only using the tiller occasionally.
The lettered points indicate where you
should apply a light grease occasionally to keep
those parts well
lubricated and working freely.
The grease could be any general purpose
grease, so
long as it does the job of lubrication.
Next are descriptions listing those numbered
points that need lubrication. Clean parts before
lu bricating.
(Photo7/1)
LUbrication points on tiller.
1b1D~lf:lJ(Q;& 'f~ W]'r1XI @GIb
1. Wheel speed shifting linkage, part #1231 and
part #1033.
2. Oil hole in speed shift lever pivot point, part
#1230.
3. Forward/Reverse Lever linkage and roller,
part #1134 and #1042.
4. Yoke linkage (clutch control), part #1037.
5. Wheel axle (occasional spray of oil), part
# 1235.
6. Depth regulator bar, plunger and spring, part
#1076, #1119, and #1120.
7. Handlebar height adjustment stud, thread
and nut, part #1150 and #9805.
8. Throttle cable and casing.
9. Eccentric Shaft (outside).
LUBRICATE WITH GREASE
&0 Face of belt adjustment block, part #1133.
I]). Engine mounting bars, part #1034.
