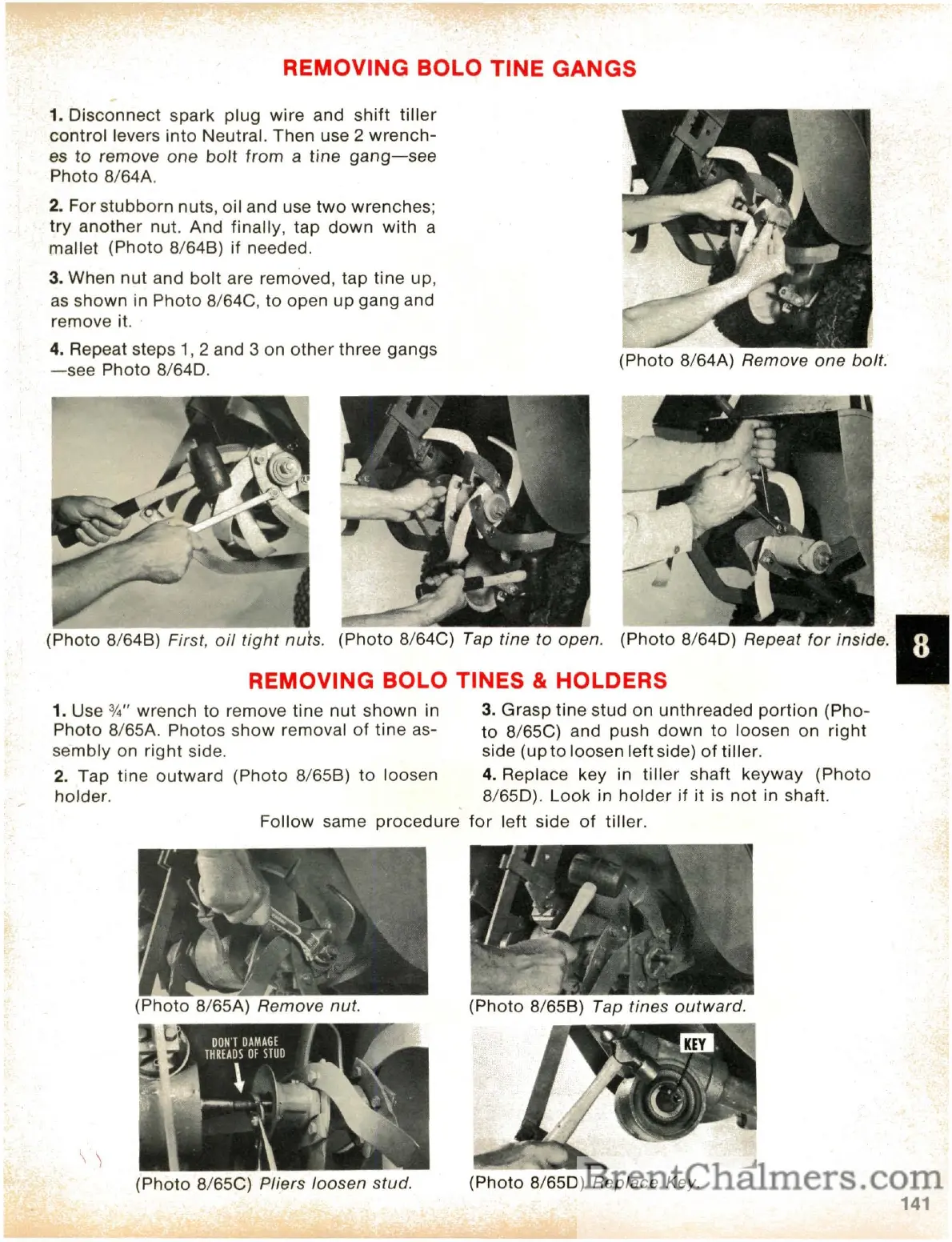

REMOVING
BOLO
TINE
GANGS
1.
Disconnect
spark
plug
wire
and
shift
tiller
control
levers
into
Neutral.
Then
use
2
wrench-
es
to
remove
one
bolt
from
a
tine
gang-see
8/64A.
2.
For
stubborn
nuts,
oil
and
use
two
wrenches;
try
another
nut.
And
finally,
tap
down
with
a
mallet
(Photo
8/648)
if
needed.
3.
When
nut
and
bolt
are
removed,
tap
tine
up,
as
shown
in
8/64C,
to
open
up
gang
and
remove
it.
4.
Repeat
steps
1,
2
and
3
on
other
three
gangs
-see
8/640.
(Photo
8/64A)
Remove
one
bolt.
1.
Use
%"
wrench
to
remove
tine
nut
shown
in
8/65A.
Photos
show
removal
of
tine
as-
sembly
on
right
side.
2.
Tap
tine
outward
(Photo
8/658)
to
loosen
holder.
(Photo
8/648)
First,
oil
tight
nuts.
(Photo
8/64C)
Tap
tine
to
open.
(Photo
8/640)
Repeat
for
inside.
REMOVING
BOLO
TINES
&
HOLDERS
3.
Grasp
tine
stud
on
unthreaded
portion
(Pho-
to
8/65C)
and
push
down
to
loosen
on
right
side
(up
to
loosen
left
side)
of
tiller.
4.
Replace
key
in
tiller
shaft
keyway
(Photo
8/650).
Look
in
holder
if
it
is
not
in
shaft.
Follow
same
procedure
for
left
side
of
tiller.
(Photo
8/65A)
Remove
nut.
(Photo
8/65C)
Pliers
loosen
stud.
(Photo
8/658)
Tap
tines
outward.
(Photo
8/650
)
Replace
Key.
141
142
144
