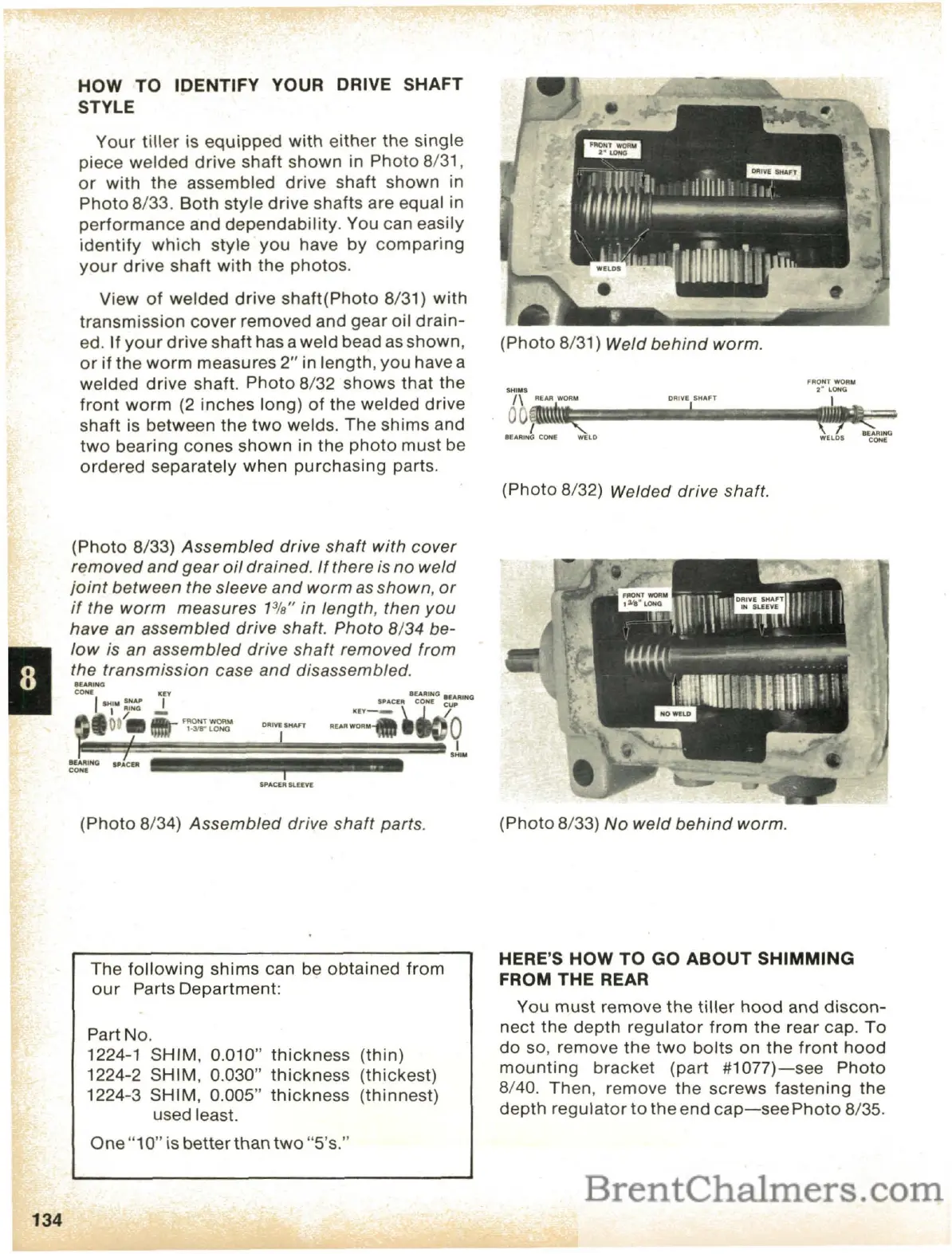

HOW TO IDENTIFY YOUR DRIVE SHAFT
STYLE
Your tiller is equipped with either the single
piece welded drive shaft shown in Photo 8/31,
or with the assembled drive shaft shown in
Photo 8/33. Both style drive shafts are equal in
performance and dependability. You can easily
identify which style you have by comparing
your drive shaft with the photos.
View
of welded drive shaft(Photo 8/31) with
transmission cover removed and gear oil drain-
ed. If your drive shaft has aweld bead as shown,
or if the worm measures 2" in length, you have a
welded drive shaft.
Photo 8/32 shows that the
front worm (2 inches long) of the welded drive
shaft is between the
two welds. The shims and
two bearing cones shown in the photo must be
ordered separately when purchasing parts.
(Photo 8/31 ) Weld behind worm.
FI'lONT WORM
2- LOHG
DRIVE SHAFT
(Photo 8/32) Welded drive shaft.
(Photo 8/33) Assembled drive shaft with cover
removed and gear oil drained. If there is no weld
joint between the sleeve and worm as shown, or
if the worm measures 13fs" in length, then you
have an assembled drive shaft. Photo 8/34 be-
low is an assembled drive shaft removed from
the
transmission case and disassembled.
FAONTWOf\M
1-311" LONG
DRIVE SHAFT
SPACEI'l SLEEVE
134
(Photo 8/34) Assembled drive shaft parts.
The
following shims can be obtained from
our Parts Department:
Part No.
1224-1 SHIM, 0.010"
thickness (thin)
1224-2 SHIM, 0.030" thickness (thickest)
1224-3 SHIM, 0.005"
thickness (thinnest)
used least.
One
"10" is better than two "5's."
(Photo 8/33) No weld behind worm.
HERE'S HOW TO GO ABOUT SHIMMING
FROM THE REAR
You must remove the tiller hood and discon-
nect the depth regulator from the rear cap. To
do so, remove the two bolts on the front hood
mounting bracket (part #1077)-see Photo
8/40. Then, remove the screws fastening the
depth regulator to the end cap-see Photo 8/35.
