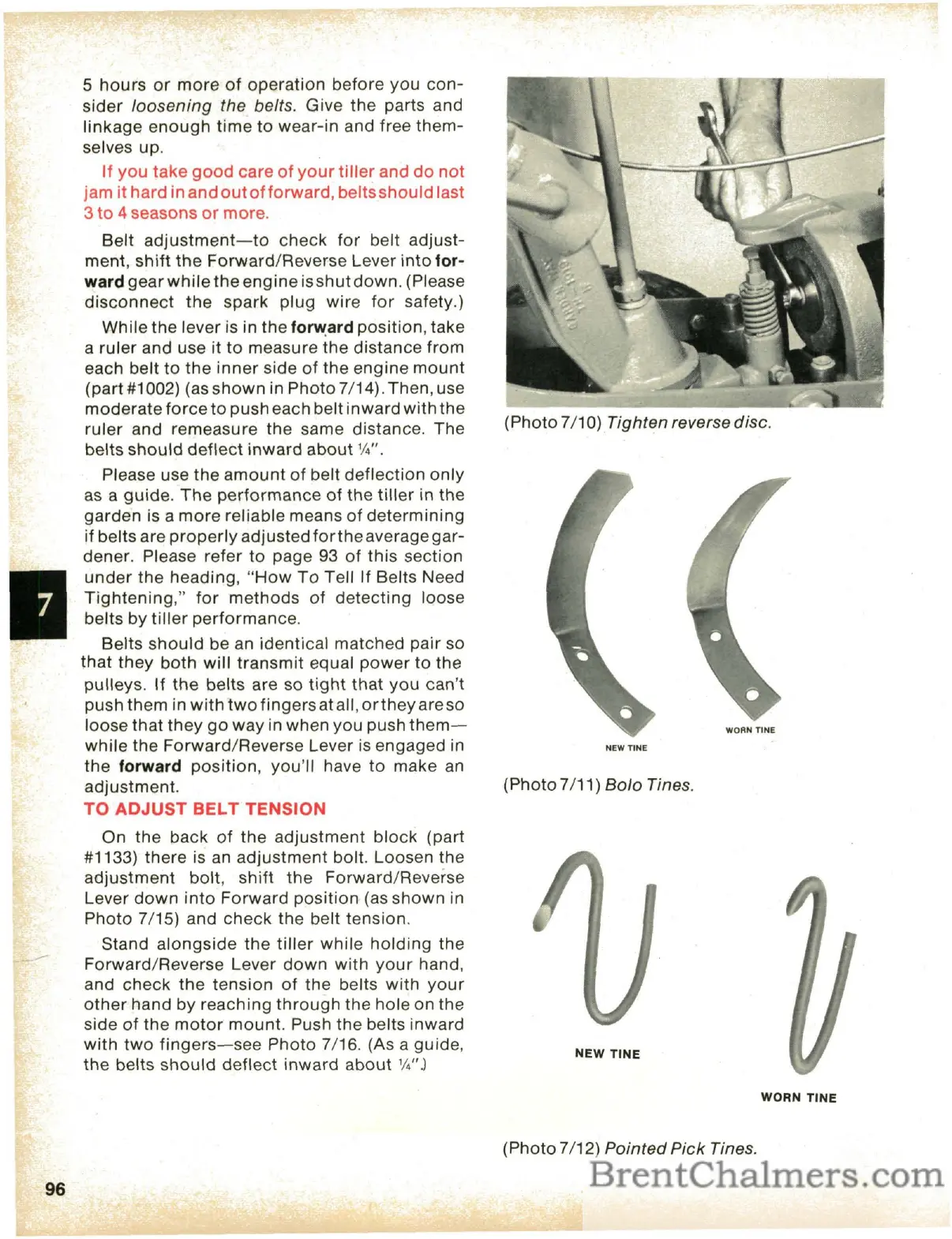

WORN
TINE
NEW
TINE
NEW
TINE
(Photo
7/10)
Tighten
reverse
disc.
(Photo
7/11)
Bolo
Tines.
5
hours
or
more
of
operation
before
you
con-
sider
loosening
the
belts.
Give
the
parts
and
linkage
enough
time
to
wear-in
and
free
them-
selves
up.
If
you
take
good
care
of
your
tiller
and
do
not
jam
it
hard
in
and
outofforward,
belts
should
last
3
to
4
seasons
or
more.
Belt
adjustment-to
check
for
belt
adjust-
ment,
shift
the
Forward/Reverse
Lever
into
for-
ward
gear
while
the
engine
isshutdown.
(Please
disconnect
the
spark
plug
wire
for
safety.)
While
the
lever
is
in
the
fOlVt!ard
position,
take
a
ruler
and
use
it
to
measure
the
distance
from
each
belt
to
the
inner
side
of
the
engine
mount
(part
#1
002)
(as
shown
in
7/14).
Then,
use
moderate
force
to
push
each
belt
inward
with
the
ruler
and
remeasure
the
same
distance.
The
belts
should
deflect
inward
about
'I.'.
Please
use
the
amount
of
belt
deflection
only
as
a
guide.
The
performance
of
the
tiller
in
the
garden
is
a
more
reliable
means
of
determining
if
belts
are
properly
adjusted
fortheaveragegar-
dener.
Please
refer
to
page
93
of
this
section
under
the
heading,
"How
To
Tell
If
Belts
Need
Tightening,"
for
methods
of
detecting
loose
belts
by
tiller
performance.
Belts
should
be
an
identical
matched
pair
so
that
they
both
will
transmit
equal
power
to
the
pulleys.
If
the
belts
are
so
tight
that
you
can't
push
them
in
with
two
fingers
at
all,
orthey
areso
loose
that
they
go
way
in
when
you
push
them-
while
the
Forward/Reverse
Lever
is
engaged
in
the
forward
position,
you'll
have
to
make
an
adjustment.
TO
ADJUST
BELT
TENSION
On
the
back
of
the
adjustment
block
(part
#1133)
there
is
an
adjustment
bolt.
Loosen
the
adjustment
bolt,
shift
the
Forward/Reverse
Lever
down
into
Forward
position
(as
shown
in
7/15)
and
check
the
belt
tension.
Stand
alongside
the
tiller
while
holding
the
Forward/Reverse
Lever
down
with
your
hand,
and
check
the
tension
of
the
belts
with
your
other
hand
by
reach
ing
through
the
hole
on
the
side
of
the
motor
mount.
Push
the
belts
inward
with
two
fingers-see
7/16.
(As
a
guide,
the
belts
should
deflect
inward
about
'I.'.)
WORN
TINE
(Photo
7/12)
Pointed
Pick
Tines.
96
97
99
