Troy-Bilt Horse User Manual

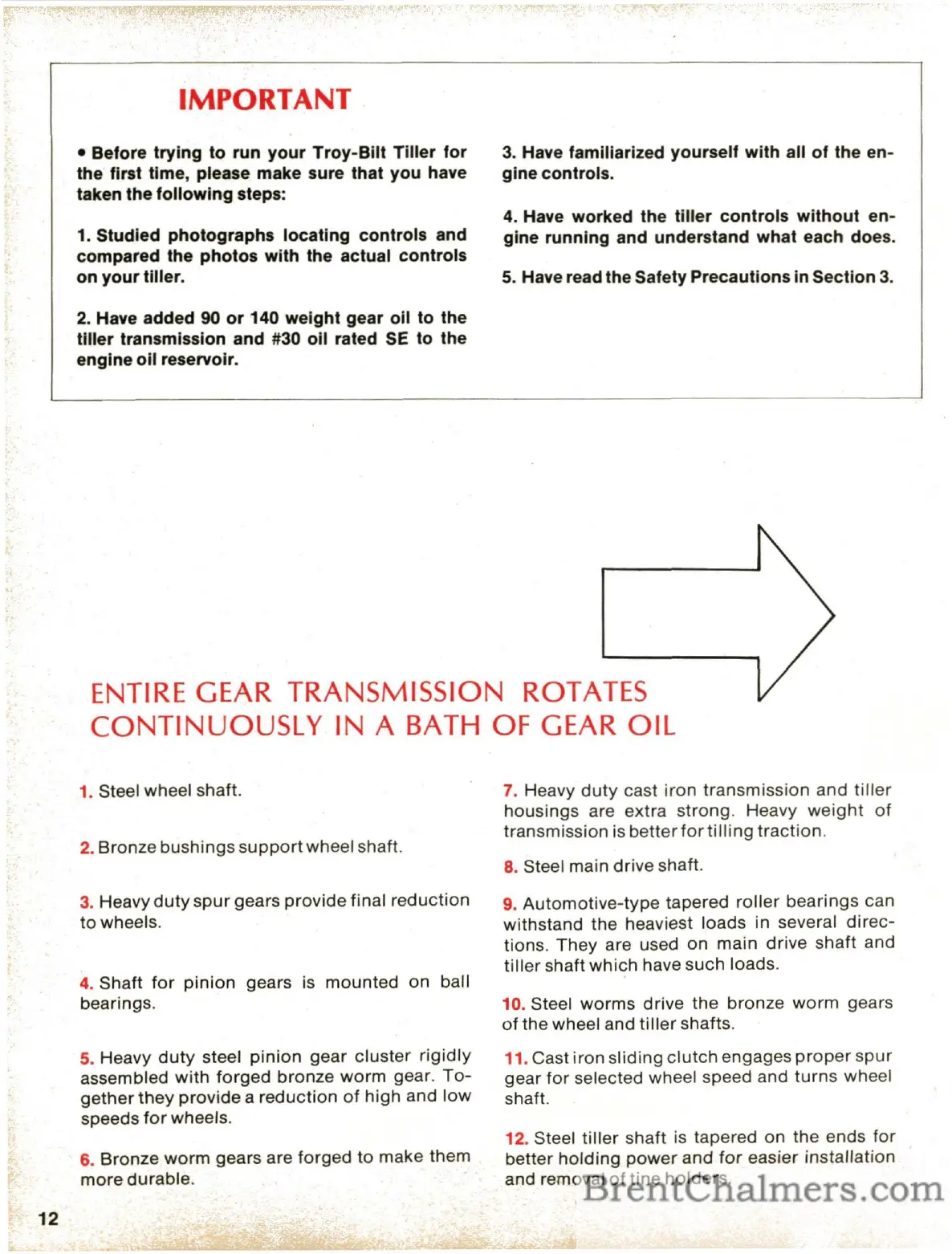

IMPORTANT
• Before trying to run your Troy-Bilt Tiller for
the first time, please make sure that you have
taken
the following steps:
1. Studied photographs locating controls and
compared the photos with the actual controls
on your tiller.
2. Have added 90 or 140 weight gear 011 to the
tiller transmission and #30 011 rated SE to the
engine 011 reservoir.
I ~
3. Have familiarized yourself with all of the en-
gine controls.
4. Have worked the tiller controls without en-
gine running and understand what each does.
5. Have read the Safety Precautions in Section 3.
ENTIRE GEAR TRANSMISSION ROTATES
CONTINUOUSLY IN A BATH OF GEAR OIL
1. Steel wheel shaft.
2. Bronze bushings support wheel shaft.
3. Heavy duty spur gears provide final reduction
to wheels.
4. Shaft for pinion gears is mounted on ball
bearings.
5. Heavy
duty steel pinion gear cluster rigidly
assembled with forged bronze worm gear. To-
gether they provide a reduction of high and low
speeds for wheels.
6. Bronze worm gears are forged to make them
more durable.
7. Heavy
duty cast iron transmission and tiller
housings are extra strong. Heavy weight of
transmission is better for tilling traction.
8. Steel main drive shaft.
9. Automotive-type tapered roller bearings can
withstand the heaviest loads in several
direc-
tions. They are used on main drive shaft and
tiller shaft which have such loads.
10. Steel
worms drive the bronze worm gears
of the wheel and tiller shafts.
11. Cast
iron sliding clutch engages proper spur
gear for selected wheel speed and turns wheel
shaft.
12. Steel
tiller shaft is tapered on the ends for
better holding power and for easier installation
and removal of tine holders.
12
