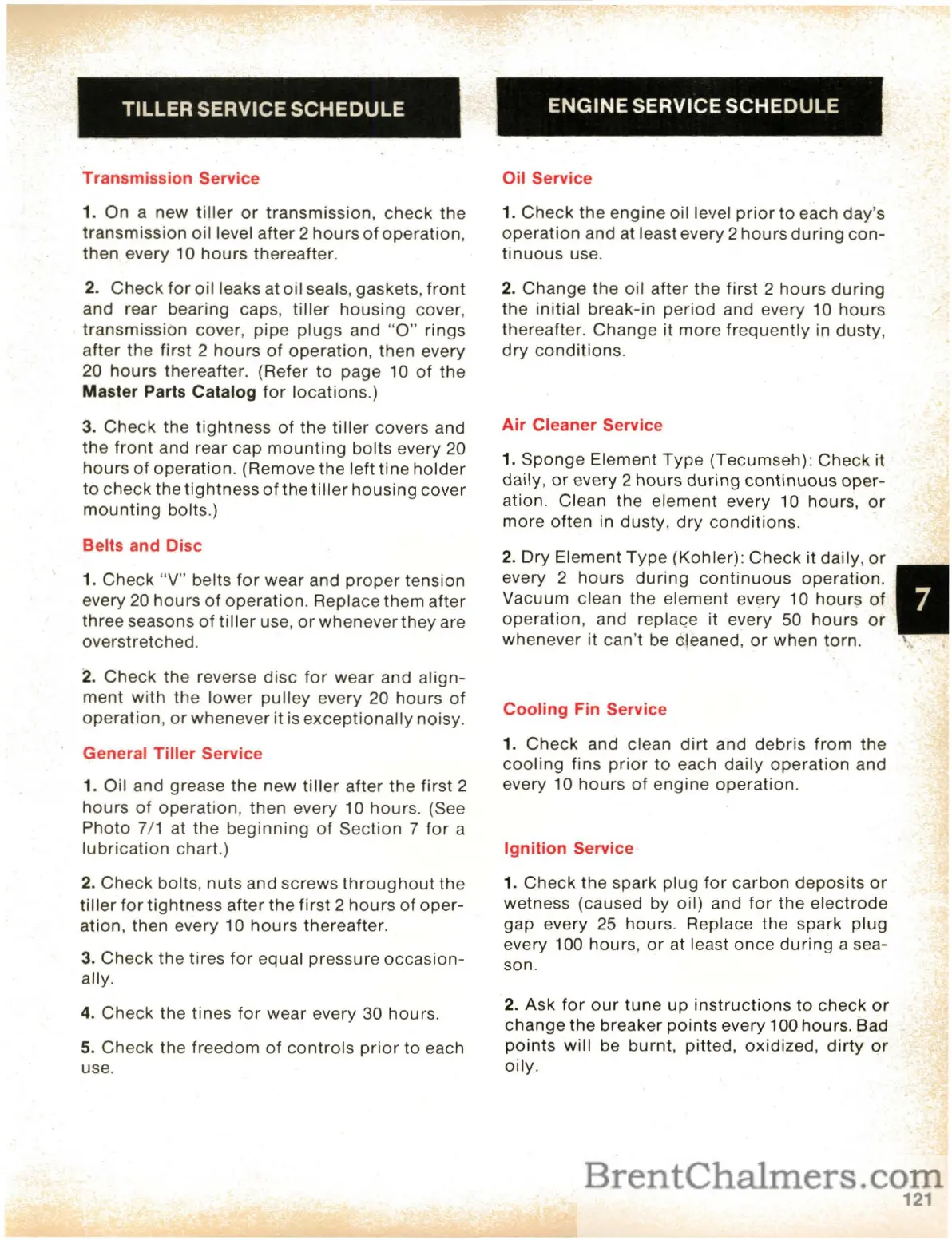

TILLER SERVICE SCHEDULE
Transmission
Service
1. On a
new
tiller
or
transmission,
check
the
transmission
oil level
after
2
hours
of
operation,
then every
10
hours
thereafter.
2.
Check
for
oil
leaks at
oil
seals, gaskets,
front
and rear bearing caps,
tiller
housing
cover,
transmission
cover,
pipe
plugs
and
"0"
rings
after
the
first
2
hours
of
operation,
then every
20
hours
thereafter. (Refer
to
page 10
of
the
Master Parts
Catalog
for
locations.)
3.
Check
the
tightness
of
the
tiller
covers and
the
front
and rear cap
mounting
bolts
every 20
hours
of
operation.
(Remove
the
left
tine
holder
to
check
the
tightness
of
the
tiller
housing
cover
mounting
bolts.)
Belts
and
Disc
1.
Check
"V"
belts
for
wear
and
proper
tension
every 20
hours
of
operation.
Replace
them
after
three seasons
of
tiller
use,
or
whenever
they
are
overstretched.
2.
Check
the
reverse
disc
for
wear
and
align-
ment
with
the
lower
pulley
every
20
hours
of
operation,
or
whenever
it
is
exceptionally
noisy.
General
Tiller
Service
1.
Oil
and grease
the
new
tiller
after
the
first
2
hours
of
operation,
then
every
10
hours. (See
7/1 at
the
beginning
of
Section
7
for
a
lubrication
chart.)
2.
Check
bolts,
nuts
and
screws
throughout
the
tiller
for
tightness
after
the
first
2
hours
of
oper-
ation,
then
every
10
hours
thereafter.
3.
Check
the
tires
for
equal pressure
occasion-
ally.
4.
Check
the
tines
for
wear
every 30 hours.
5.
Check
the
freedom
of
controls
prior
to each
use.
ENGINE SERVICE SCHEDULE
Oil Service
1.
Check
the
engine
oille'lel
prior
to
each day's
operation
and at least every 2
hours
during
con-
tinuous
use.
2.
Change
the
oil after the
first
2
hours
during
the
initial
break-in
period
and every
10
hours
thereafter.
Change
it
more
frequently
in
dusty,
dry
conditions.
Air
Cleaner
Service
1.
Sponge
Element
Type
(Tecumseh):
Check
it
daily,
or
every 2
hours
during
continuous
oper-
ation. Clean
the
element
every
10
hours,
or
more
often in dusty,
dry
conditions.
2.
Dry
Element
Type
(Kohler):
Check
it daily,
or
every 2
hours
during
continuous
operation.
Vacuum clean
the
element
every
10
hours
of
operation,
and replaGe it every
50
hours
or
whenever
it
can't
be aleaned,
or
when
torn.
Cooling
Fin Service
1.
Check
and clean
dirt
and
debris
from
the
cooling
fins
prior
to
each
daily
operation
and
every
10
hours
of
engine
operation.
Ignition
Service
1.
Check
the
spark
plug
for
carbon
deposits
or
wetness (caused by
oil)
and
for
the
electrode
gap
every 25 hours. Replace
the
spark
plug
every 100 hours,
or
at least
once
during
a sea-
son.
2.
Ask
for
our
tune
up
instructions
to
check
or
change
the
breaker
points
every 100 hours. Bad
points
will
be burnt, pitted,
oxidized,
dirty
or
oily.
121
