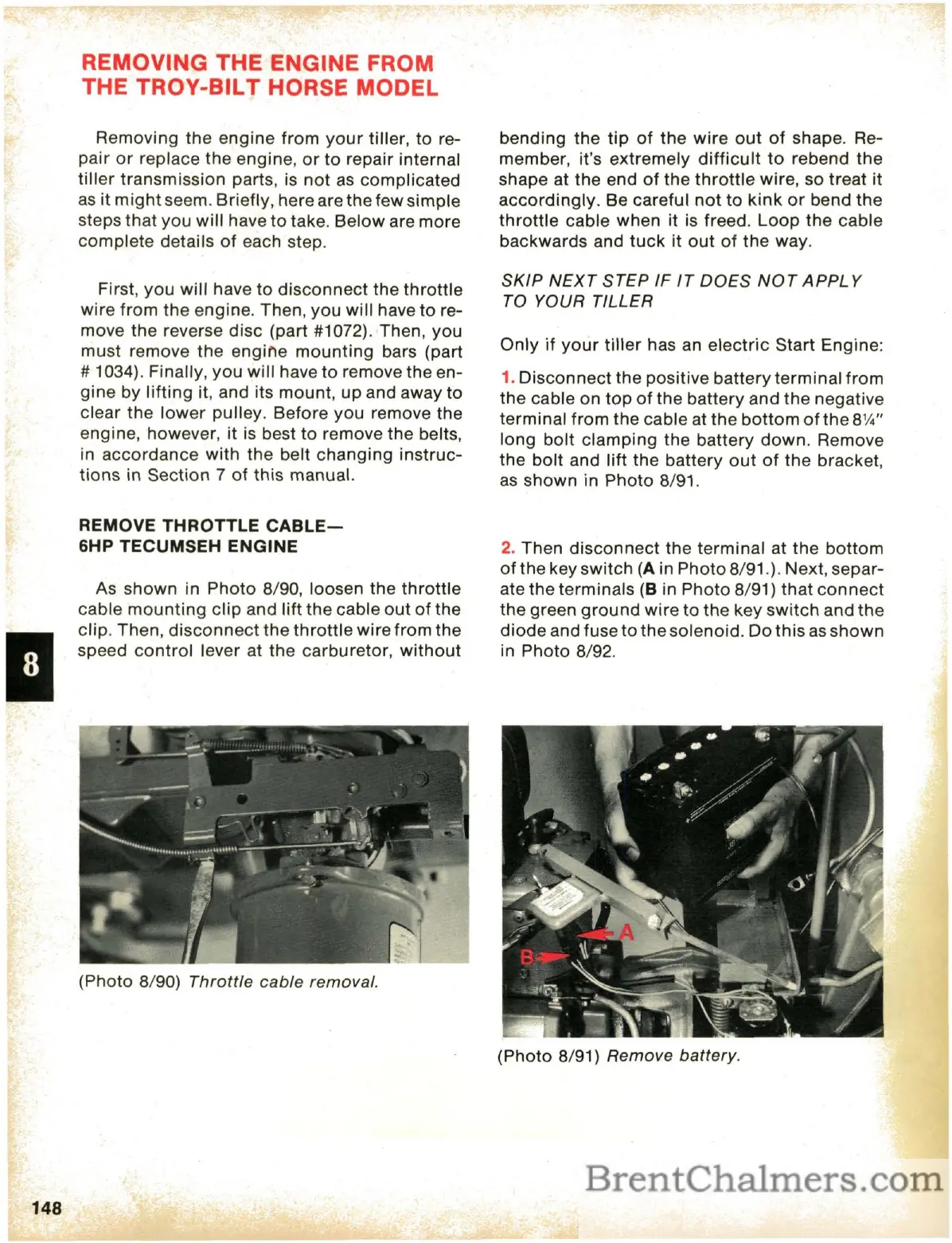

I
REMOVING THE ENGINE FROM
THE
TROY-Bll
T HORSE MODEL
Removing
the
engine
from
your
tiller,
to
re-
pair
or
replace
the
engine,
or
to
repair internal
tiller
transmission parts, is
not
as
complicated
as
it
might
seem. Briefly, here are the few simple
steps
that
you will have
to
take.
Below
are
more
complete
details
of
each step.
First,
you
will
have
to
disconnect
the
throttle
wire
from
the
engine. Then,
you
will have
to
re-
move the reverse
disc
(part #1072). Then,
you
must remove
the
engine
mounting
bars (part
# 1034). Finally,
you
will
have
to
remove the en-
gine
by
lifting
it, and its mount,
up
and away
to
clear the
lower
pulley. Before
you
remove the
engine, however,
it
is best
to
remove the belts,
in
accordance
with
the belt
changing
instruc-
tions
in Section 7
of
this
manual.
REMOVE
THROTTLE
CABLE-
6HP
TECUMSEH
ENGINE
As shown in Photo 8/90, loosen the
throttle
cable
mounting
clip
and
lift
the
cable
out
of
the
clip. Then,
disconnect
the
throttle
wire
from
the
speed
control
lever at the carburetor,
without
(Photo 8/90)
Throttle
cable
removal.
bending the
tip
of
the
wire
out
of
shape. Re-
member, it's extremely
difficult
to
rebend
the
shape at the end
of
the
throttle
wire, so treat
it
accordingly.
Be careful
not
to
kink
or
bend
the
throttle
cable when
it
is freed.
Loop
the cable
backwards and
tuck
it
out
of
the way.
SKIP
NEXT
STEP
IF
IT
DOES
NOT
APPLY
TO YOUR
TILLER
Only
if
your
tiller
has an
electric
Start Engine:
1.
Disconnect
the positive
battery
terminal
from
the cable on
top
of
the battery and
the
negative
terminal
from
the
cable at
the
bottom
of
the
8v."
long
bolt
clamping
the
battery down. Remove
the
bolt
and
lift
the
battery
out
of
the
bracket,
as
shown
in
8/91.
2.
Then
disconnect
the
terminal
at
the
bottom
of
the
key
switch
(A in Photo 8/91.). Next, separ-
ate the terminals
(B
in Photo 8/91)
that
connect
the green
ground
wire
to
the key
switch
and
the
diode
and fuse
to
the
solenoid. Do
this
as
shown
in Photo 8/92.
148
(Photo
8/91)
Remove
battery.
